01 / 30External doors
Catalogue P01–03
01

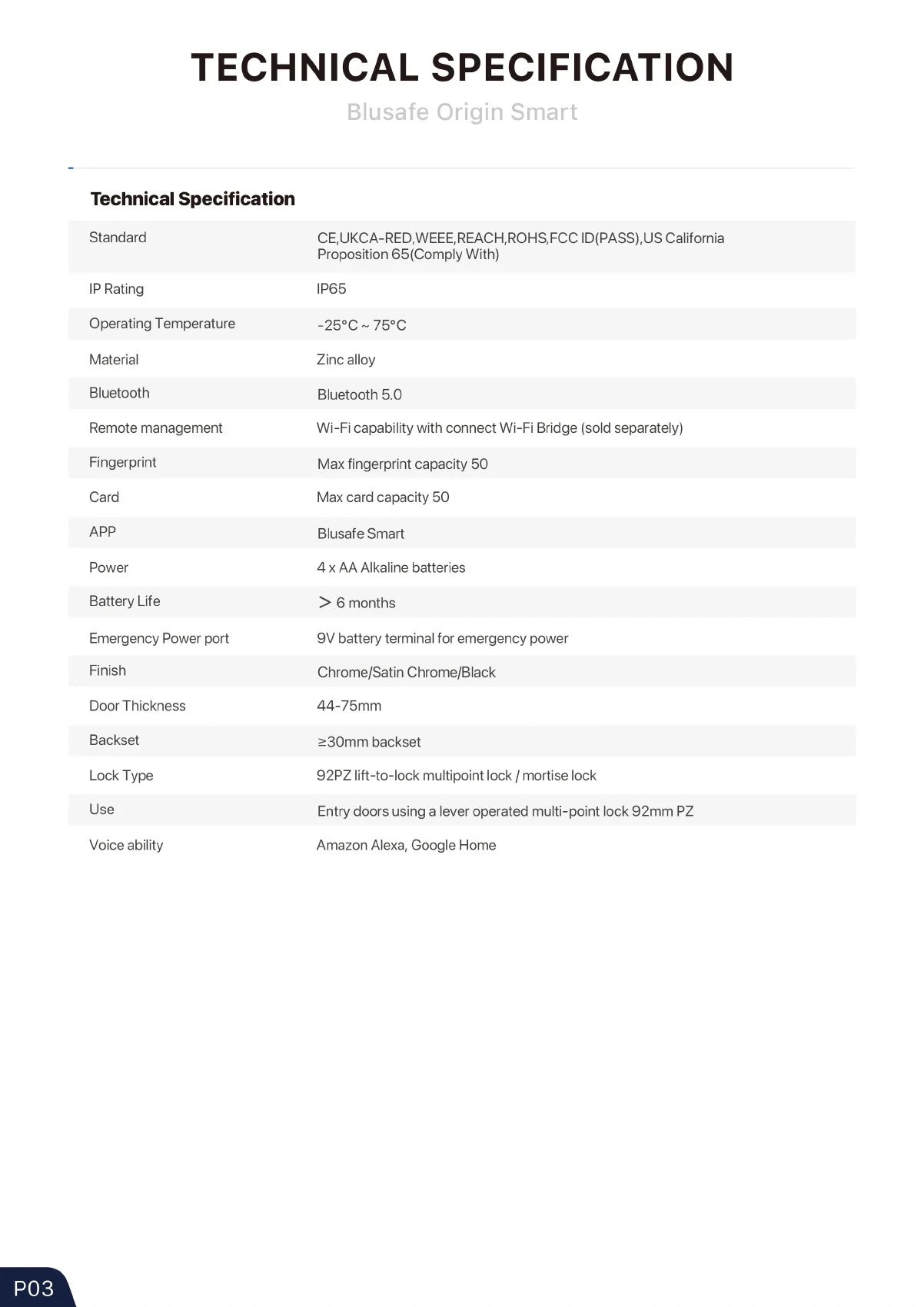

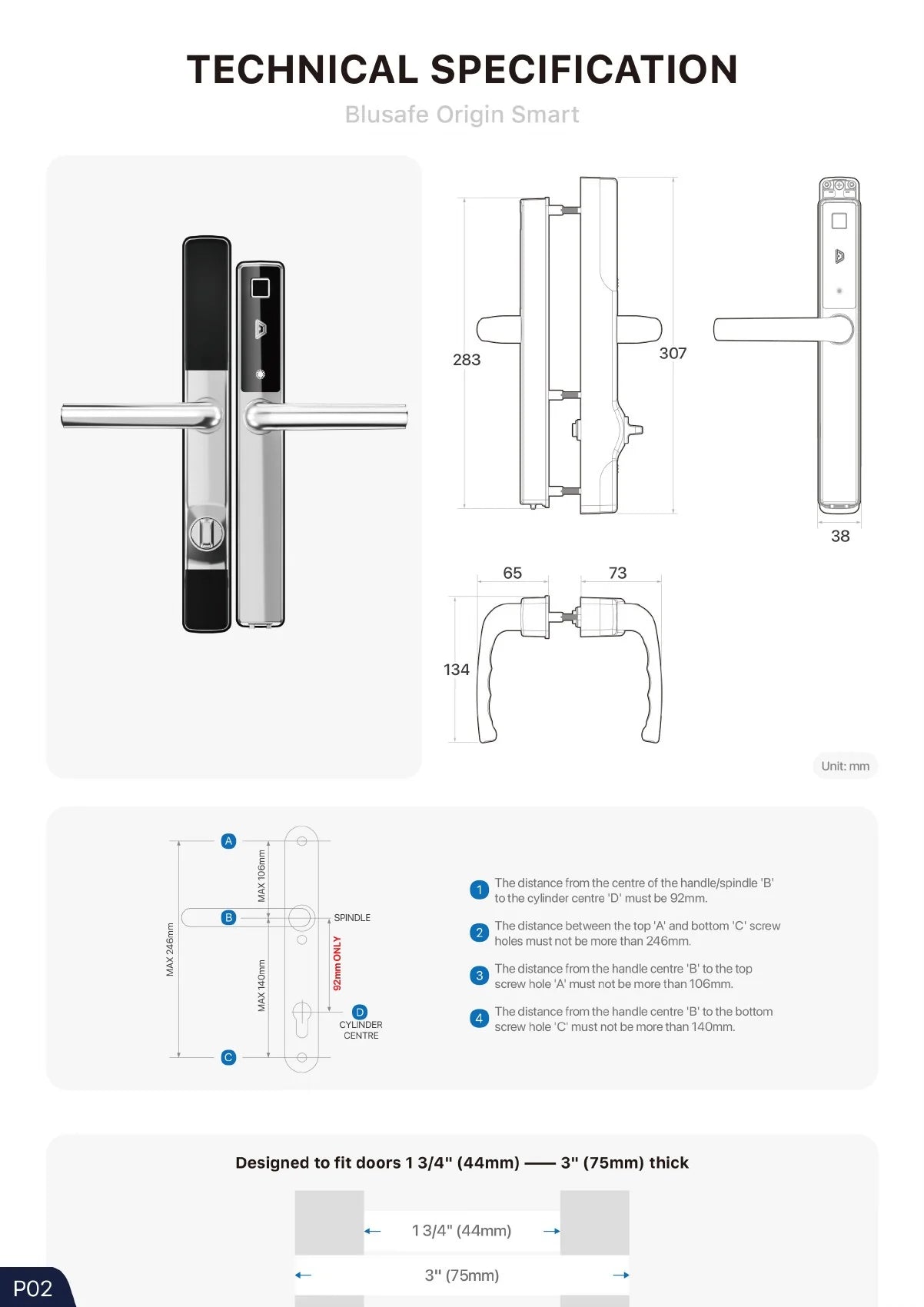

Lift-to-lock multipoint

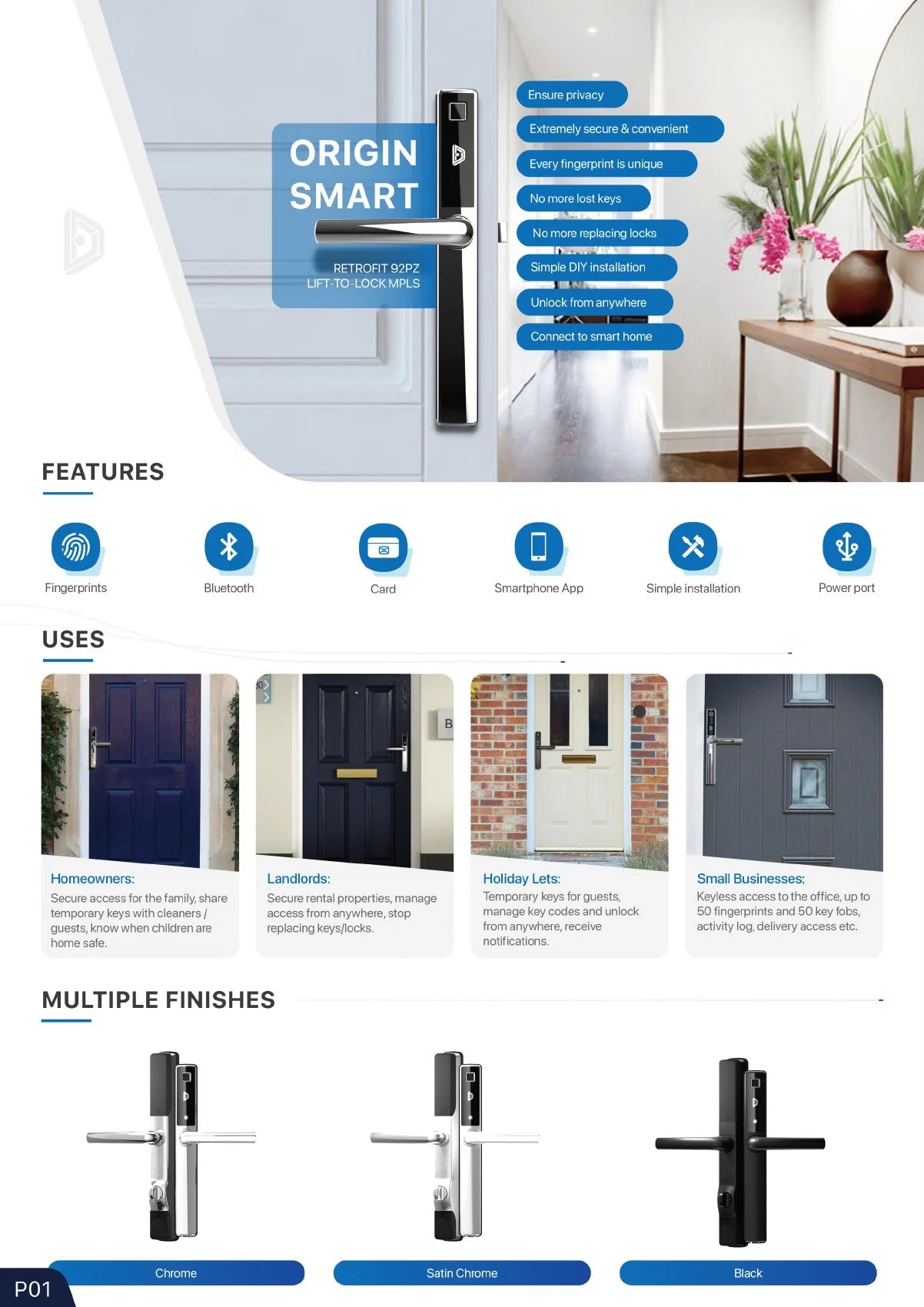

Origin Smart
Fingerprint access for a familiar lift-to-lock door. The original Origin Smart combines a slim handle with card and app entry.
Fingerprint Key card Bluetooth App control
Door thickness 44–75 mm
Backset At least 30 mm
App Blusafe Smart
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 44–75 mm
Backset At least 30 mm
App Blusafe Smart
Power 4 × AA batteries
Catalogue finishes Chrome, satin chrome, black
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.

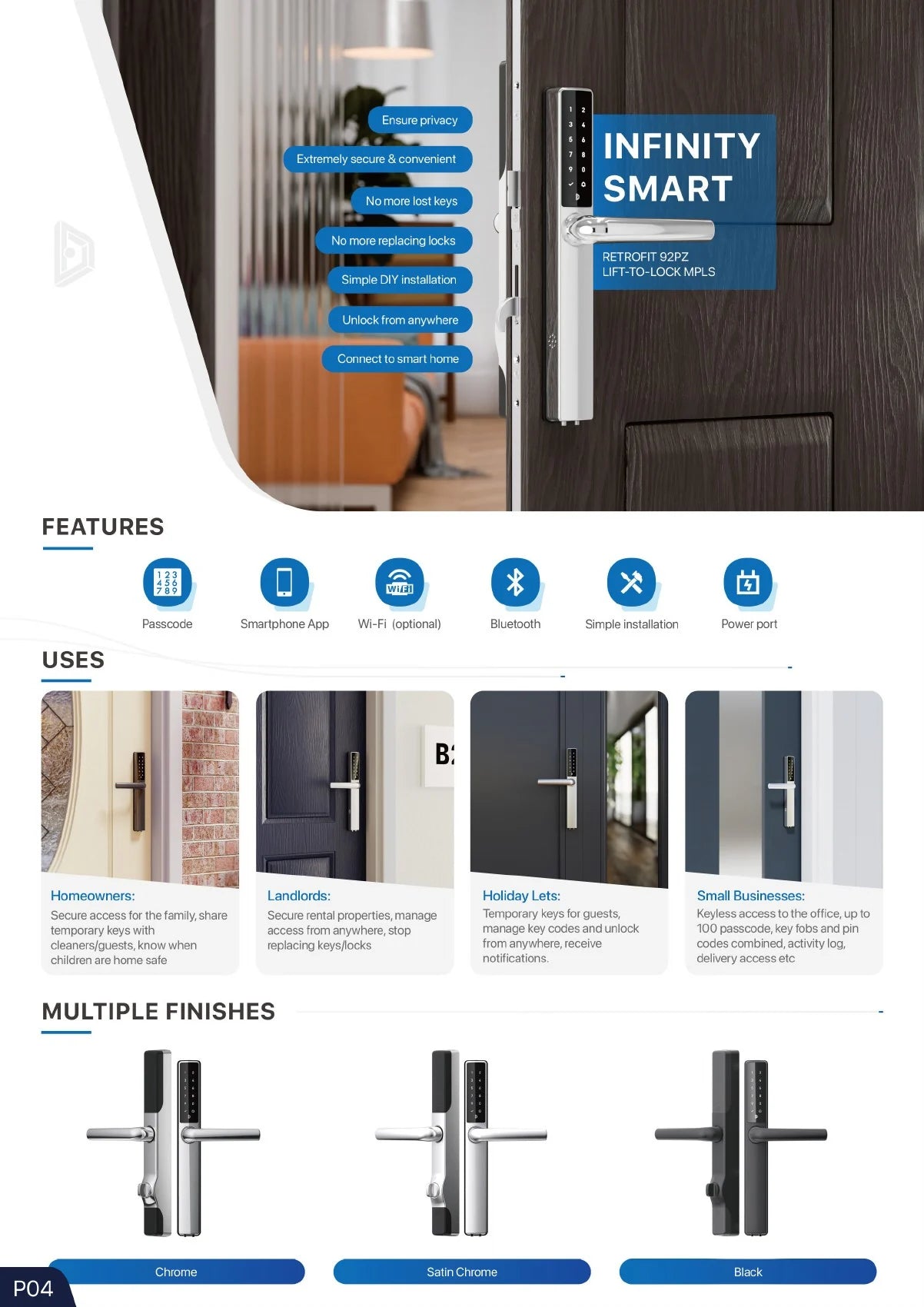

02 / 30External doors
Catalogue P04–06
02
Lift-to-lock multipoint

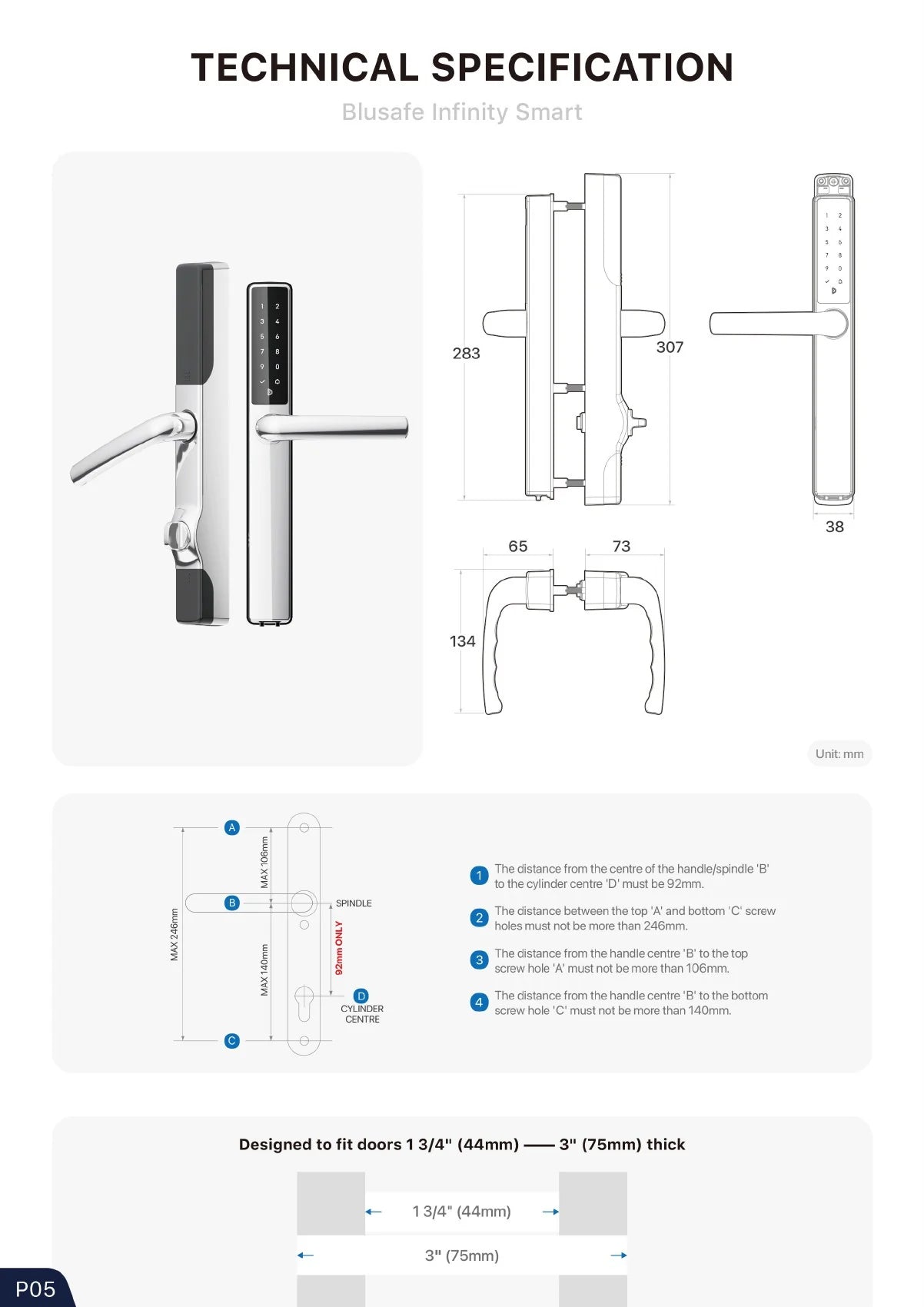

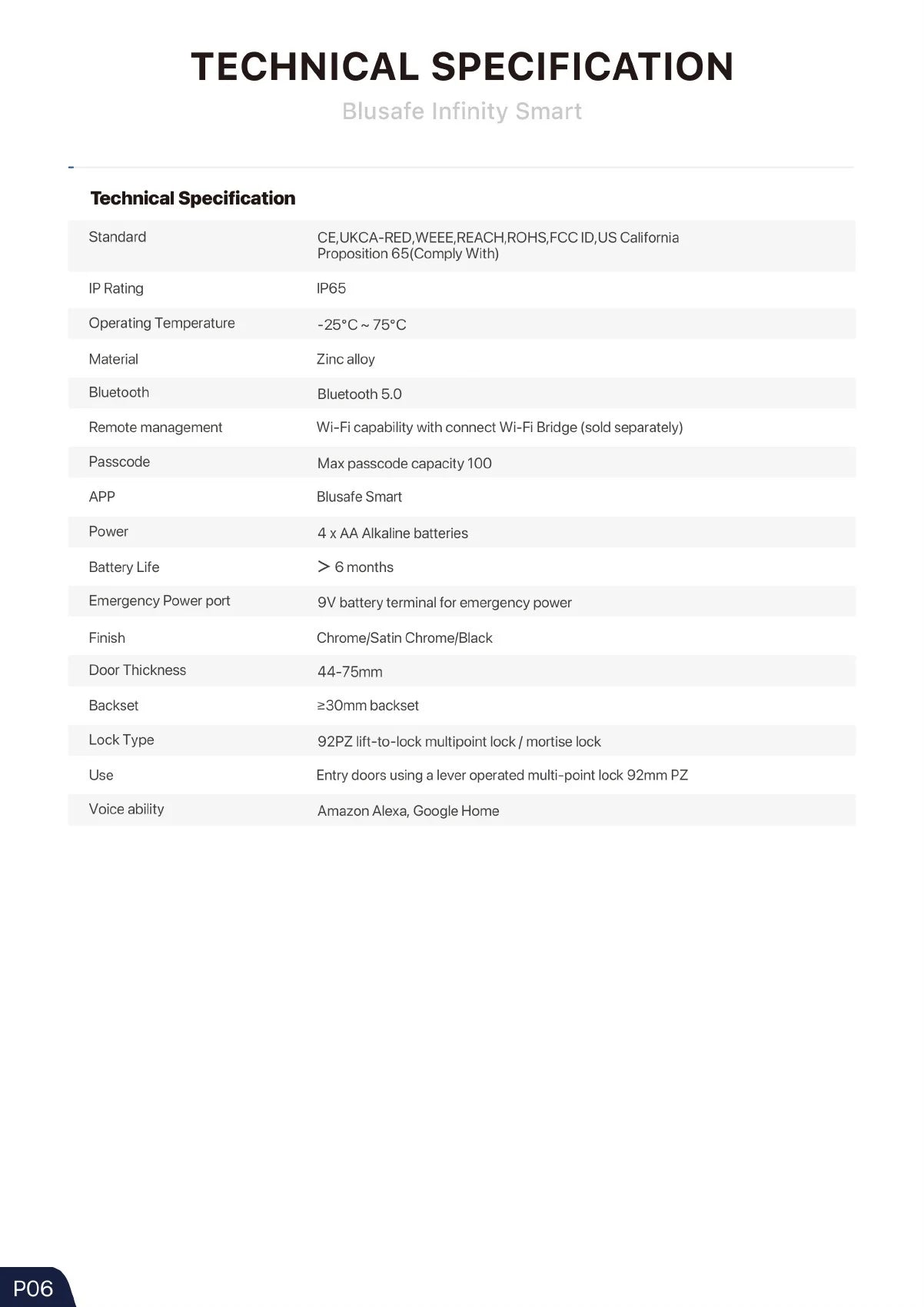

Infinity Smart
A keypad-led smart handle for everyday entry, shared access and managing a multipoint door from your phone.
Passcode Bluetooth App control Optional Wi-Fi bridge
Door thickness 44–75 mm
Backset At least 30 mm
App Blusafe Smart
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 44–75 mm
Backset At least 30 mm
App Blusafe Smart
Power 4 × AA batteries
Catalogue finishes Chrome, satin chrome, black
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
03 / 30External doors
Catalogue P07–09
03
Lift-to-lock multipoint

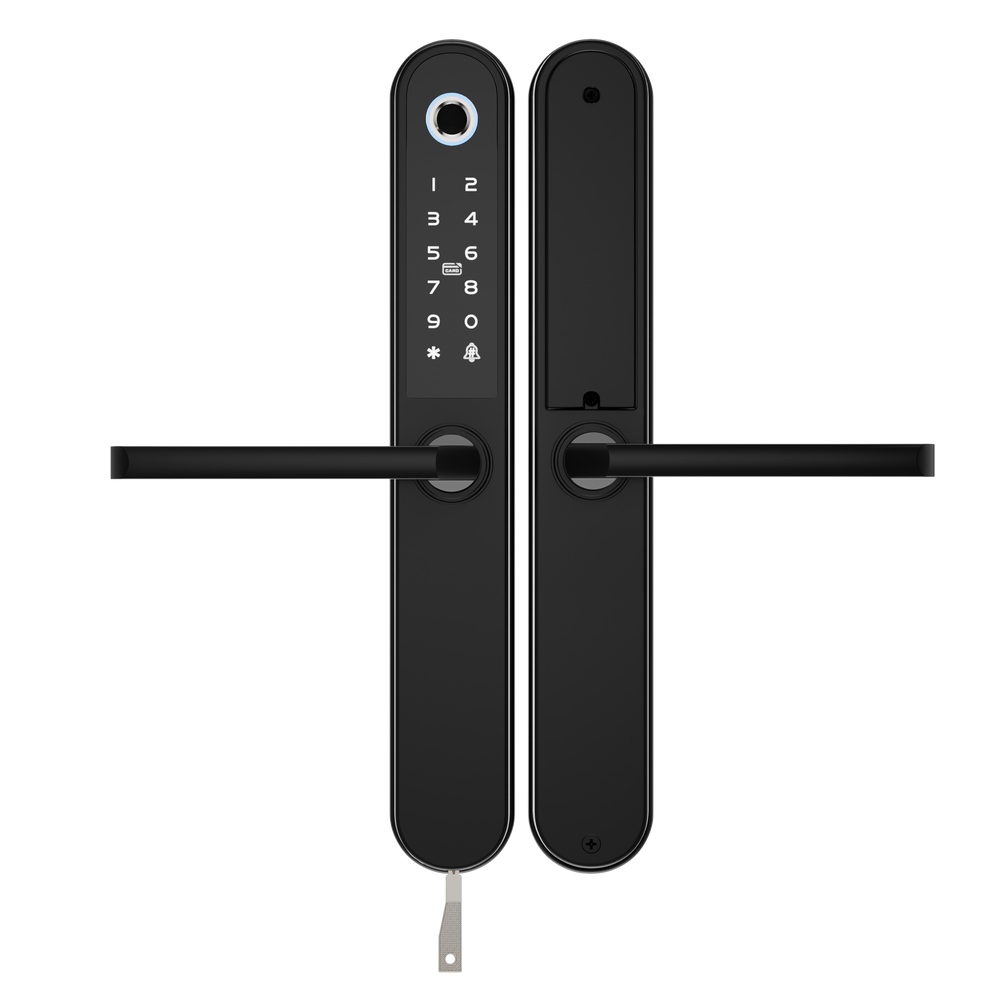

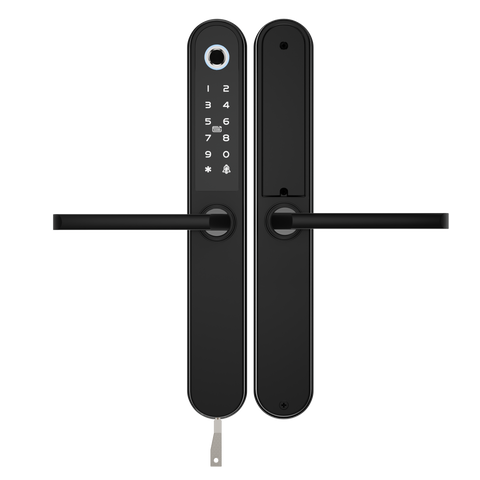

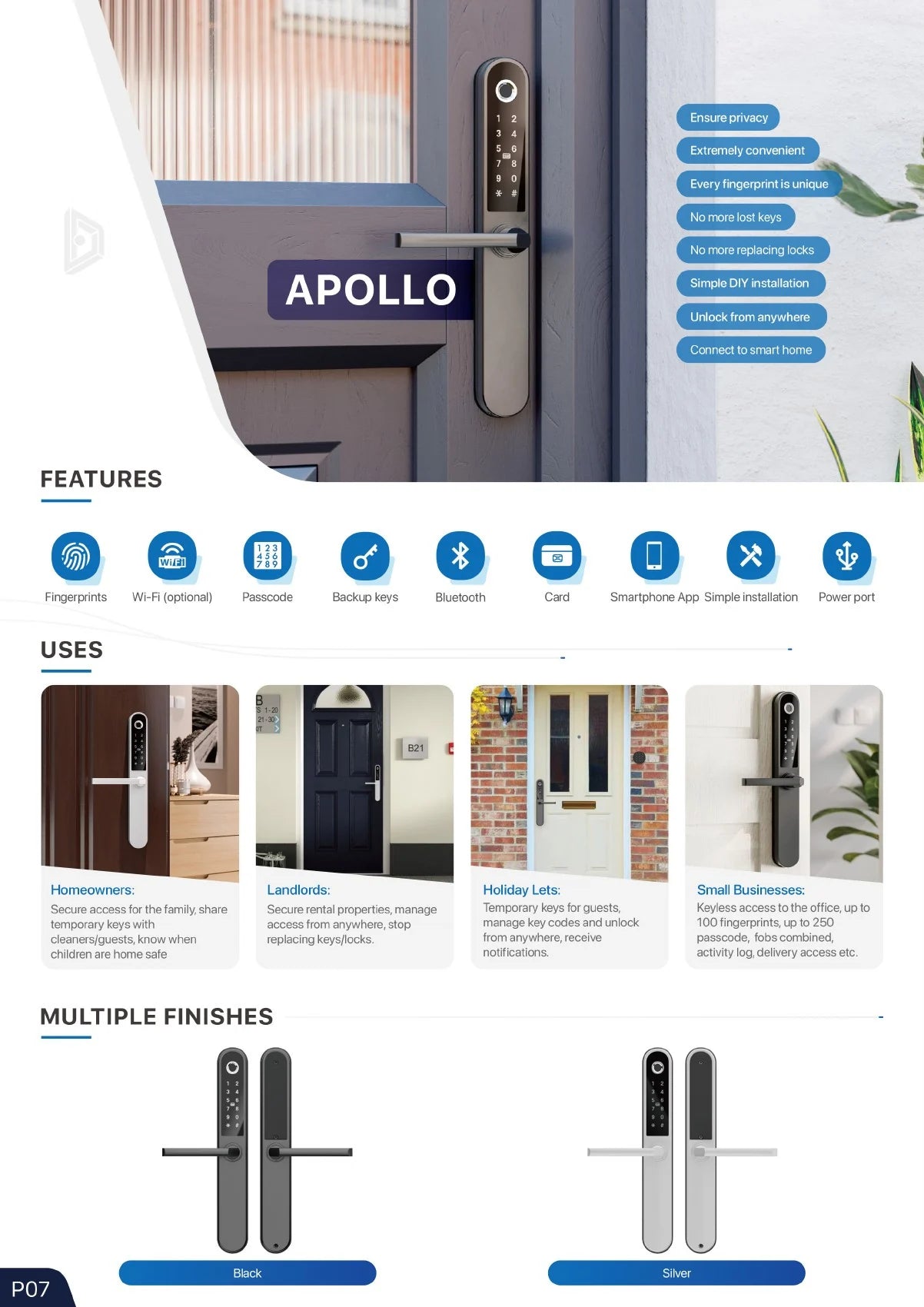

Apollo
A streamlined smart handle with fingerprint, passcode, card and app access for multipoint and mortise doors.
Fingerprint Passcode Key card Backup key Bluetooth
Door thickness 40–90 mm
Backset At least 30 mm
App TTLock
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 3 pages

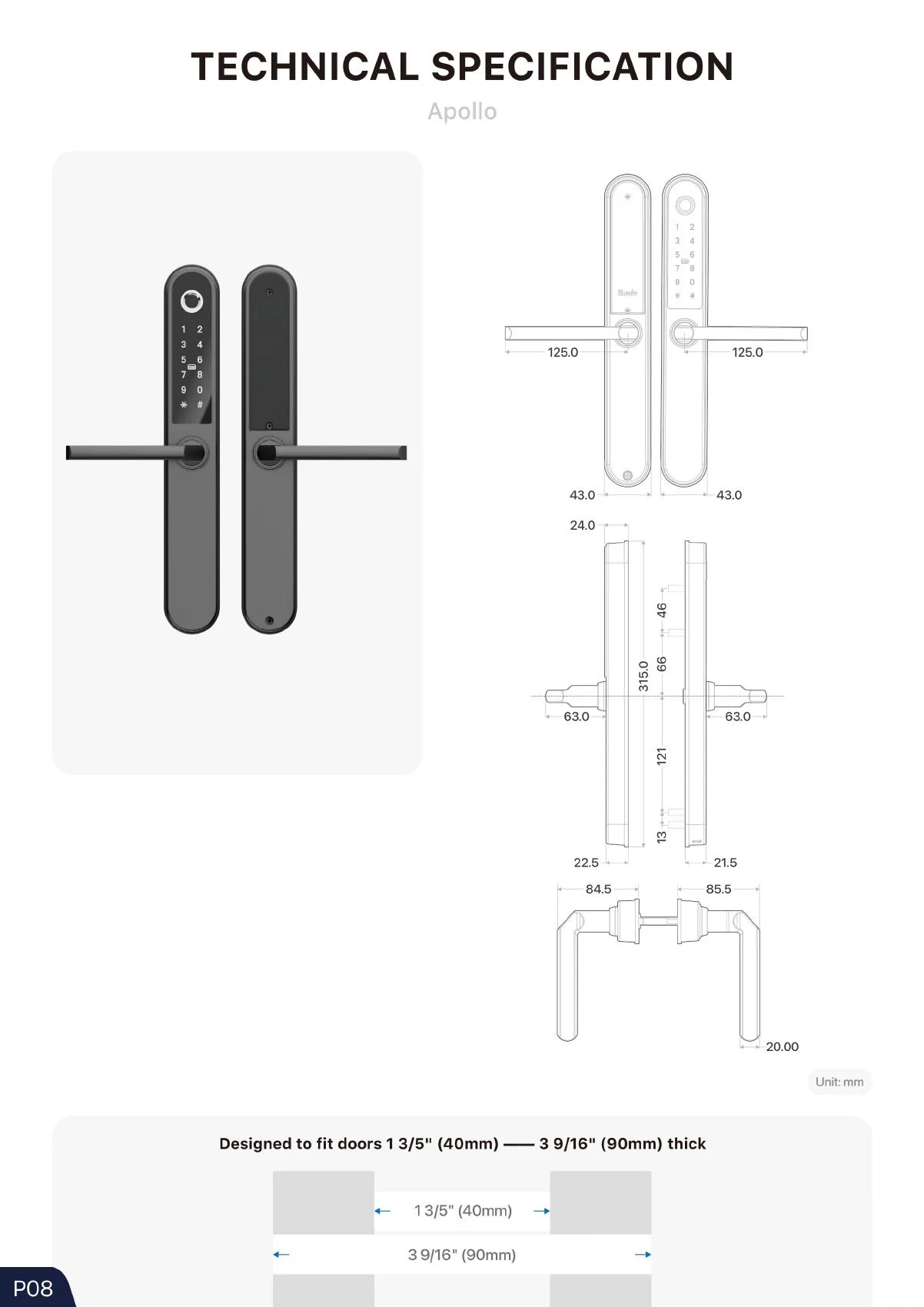

Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 40–90 mm
Backset At least 30 mm
App TTLock
Power 4 × AA batteries
Emergency power USB-C
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
04 / 30External doors

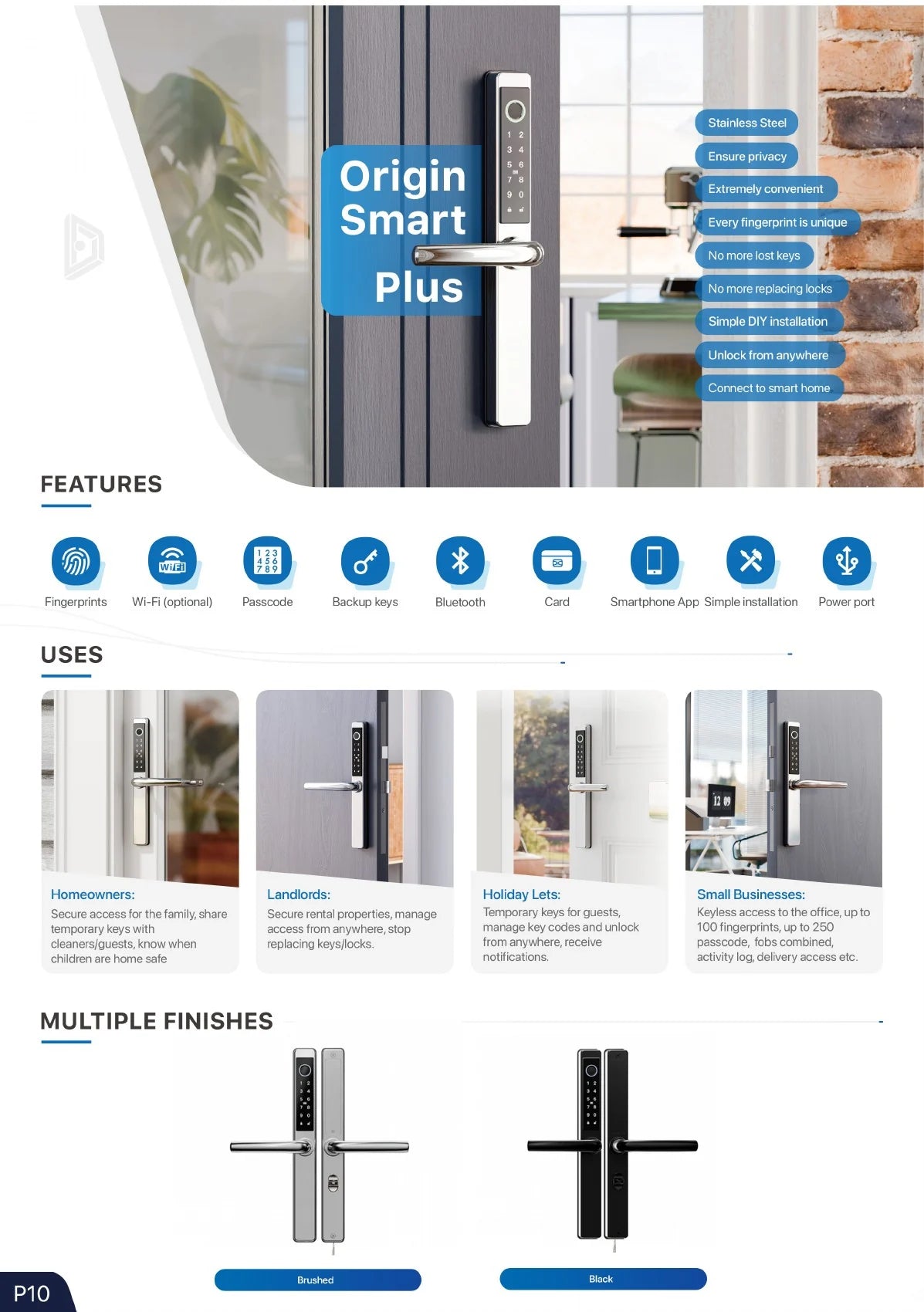

Catalogue P10–12
04
Lift-to-lock multipoint

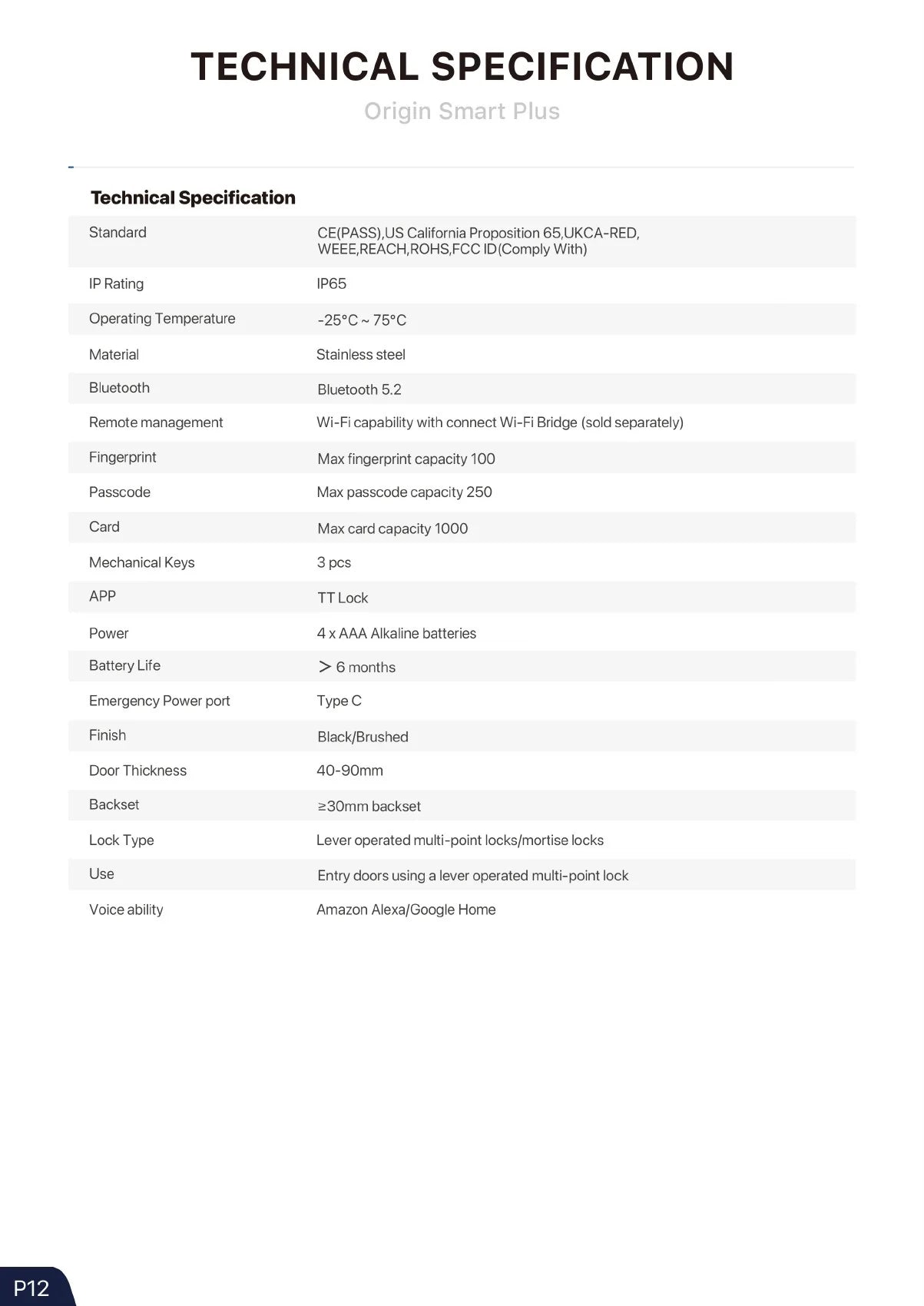

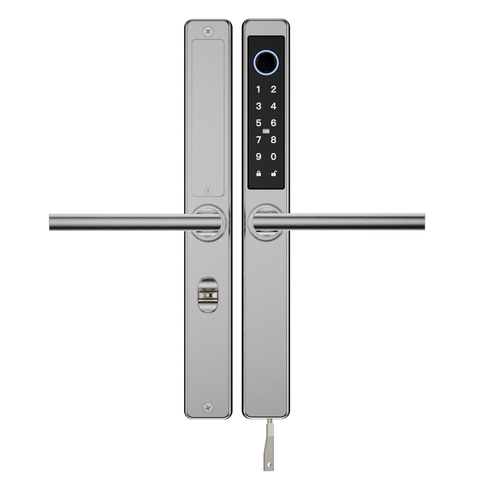

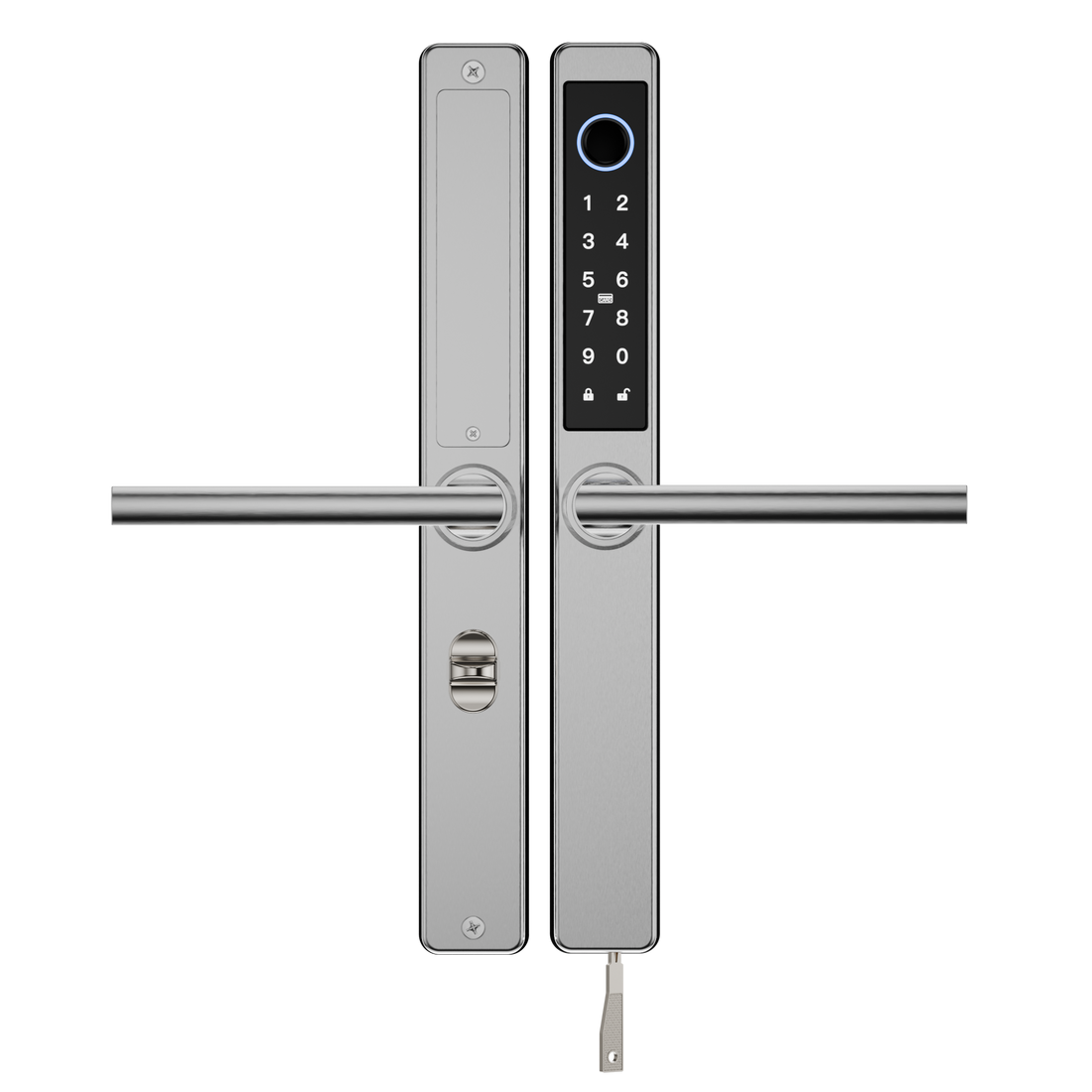

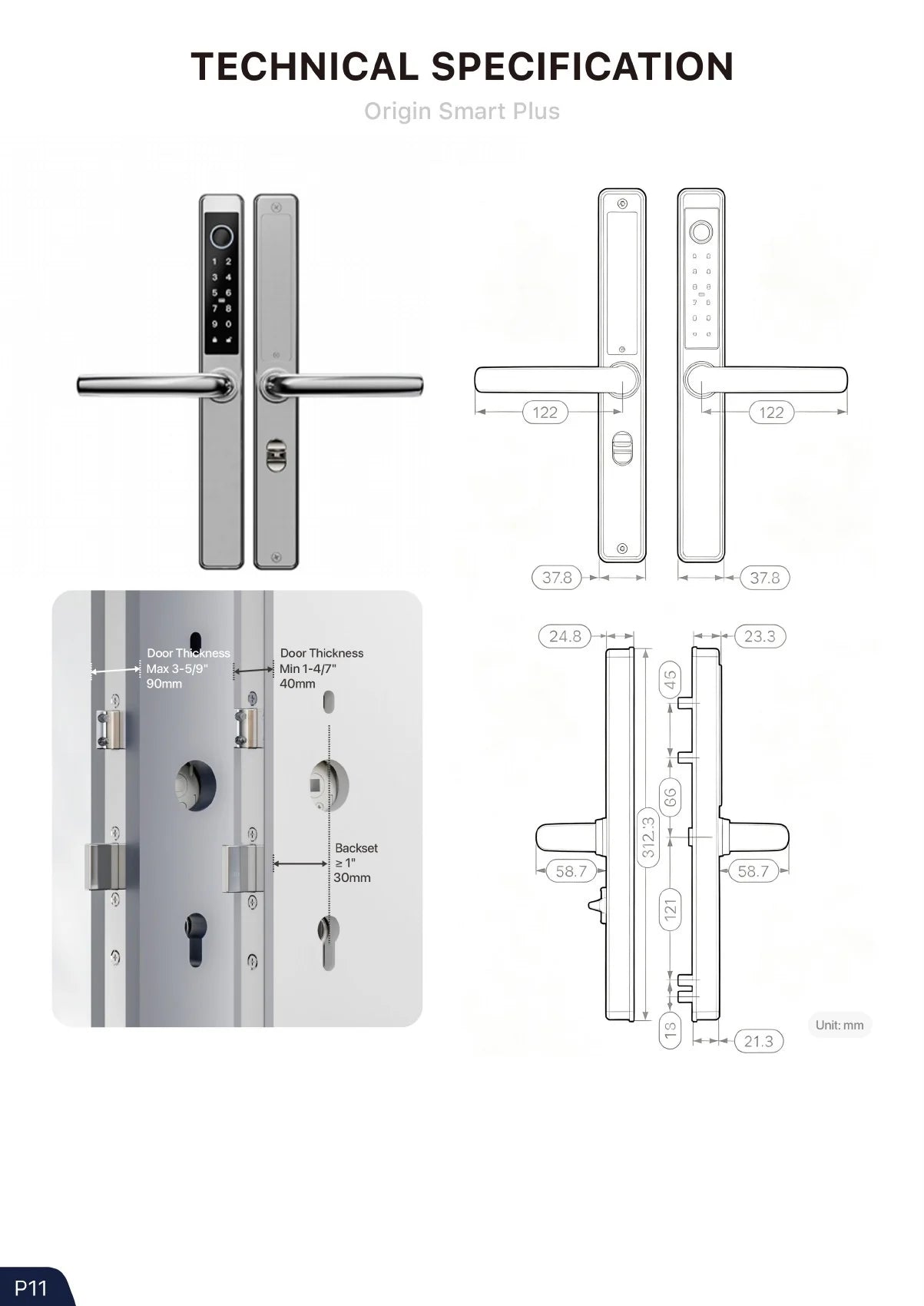

Origin Smart Plus
The stainless-steel Origin Smart Plus brings multiple ways to unlock to lever-operated multipoint and mortise doors.
Fingerprint Passcode Key card Backup key App control
Door thickness 40–90 mm
Material Stainless steel
App TTLock
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 40–90 mm
Material Stainless steel
App TTLock
Power 4 × AAA batteries
Emergency power USB-C
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
05 / 30External doors
Catalogue P13–15
05
Lift-to-lock multipoint

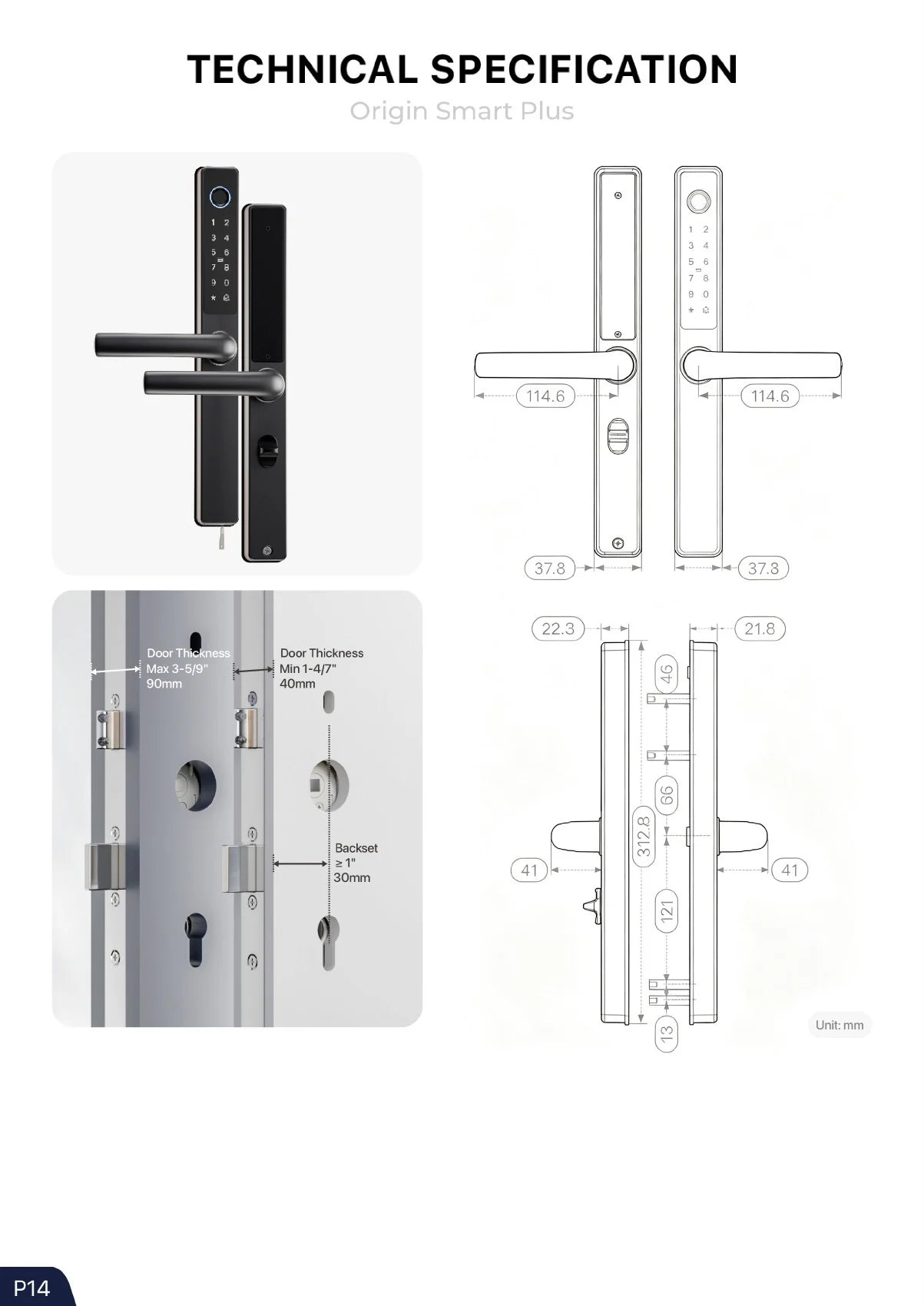

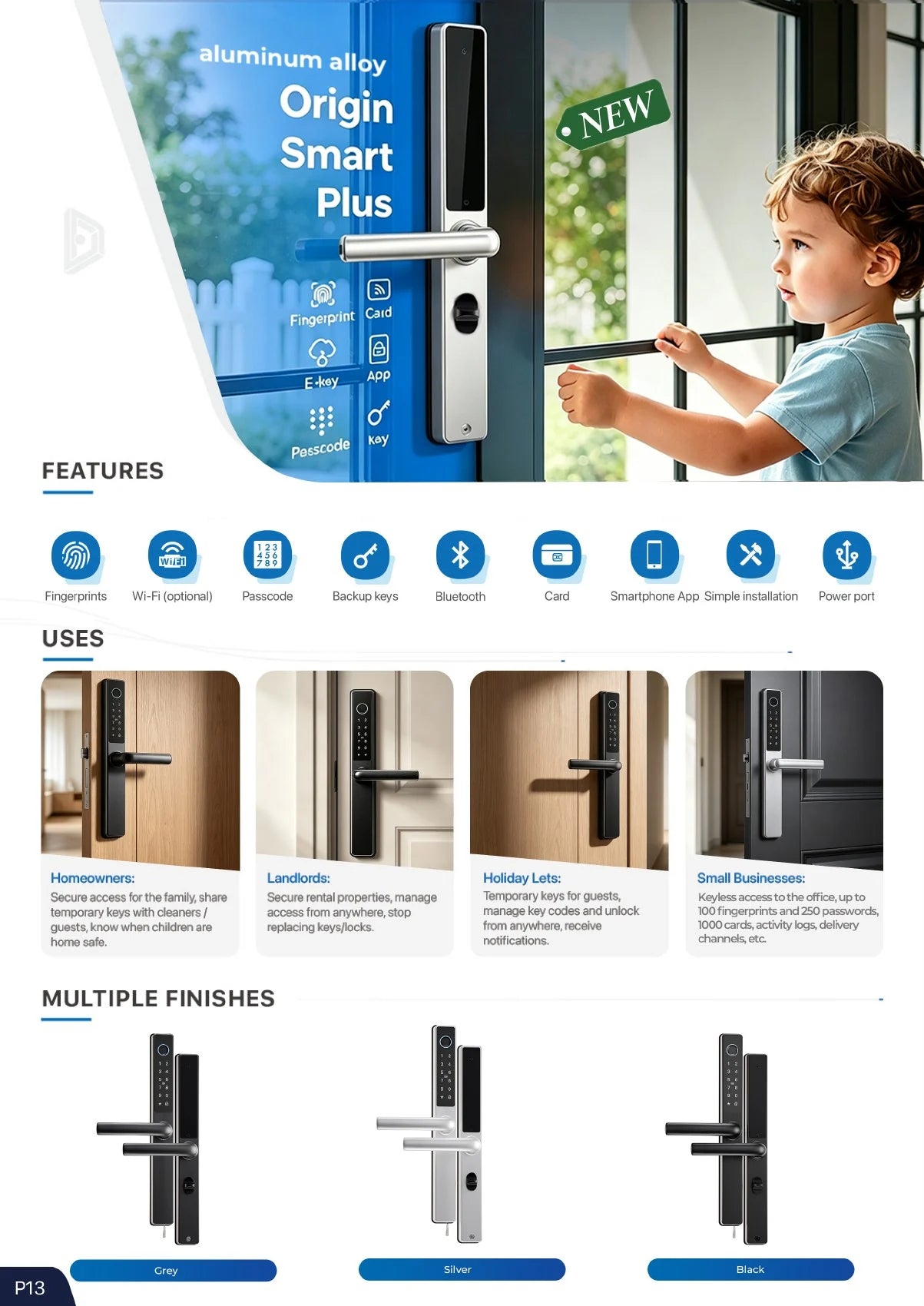

Origin Smart Plus · New
The catalogue’s aluminum-alloy edition of Origin Smart Plus, with a clean profile and flexible access for families, guests and workplaces.
Fingerprint Passcode Key card Backup key App control
Door thickness 40–90 mm
Material Aluminum alloy
App TTLock
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 3 pages

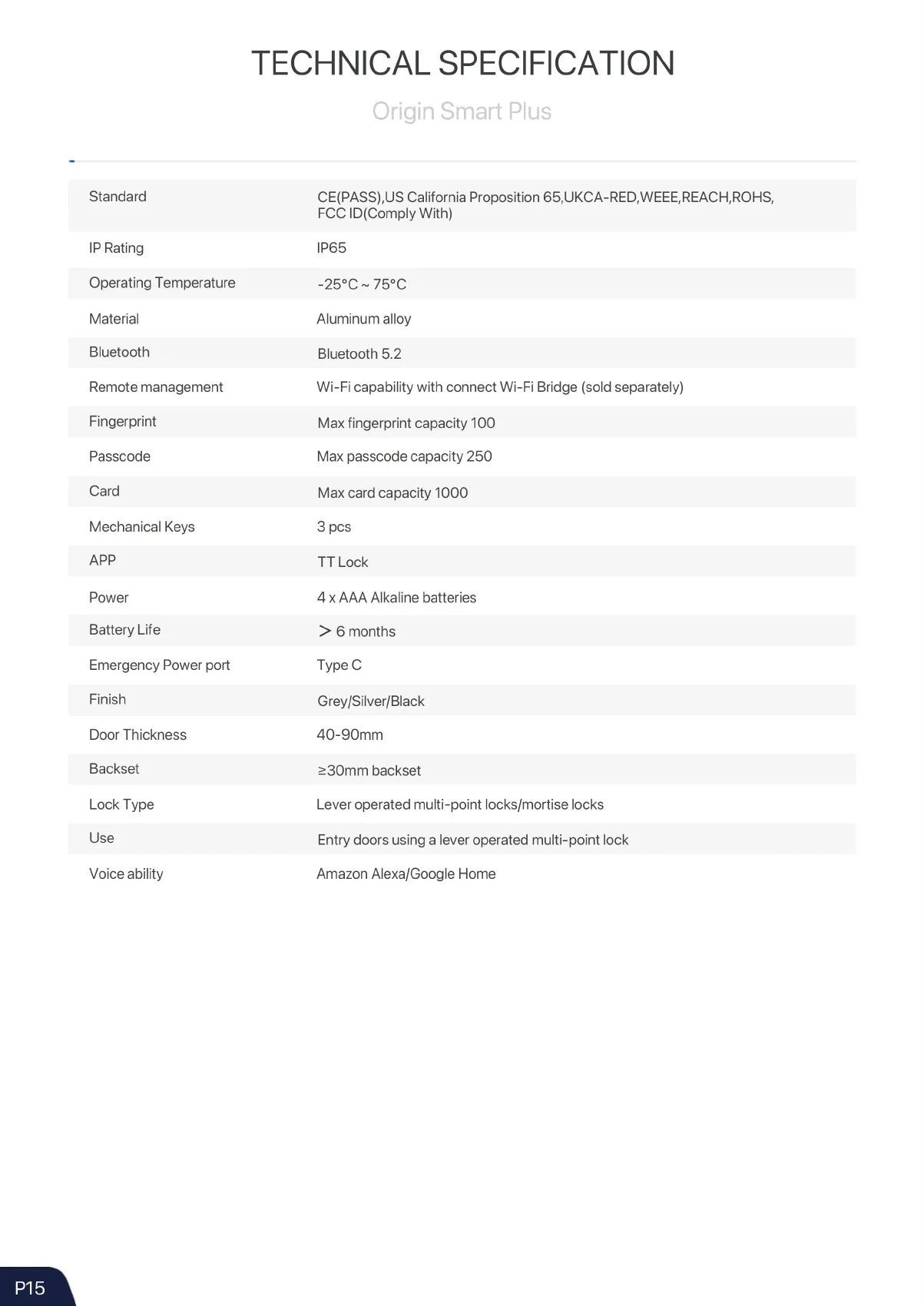

Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 40–90 mm
Material Aluminum alloy
App TTLock
Power 4 × AAA batteries
Catalogue finishes Grey, silver, black
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
06 / 30External doors

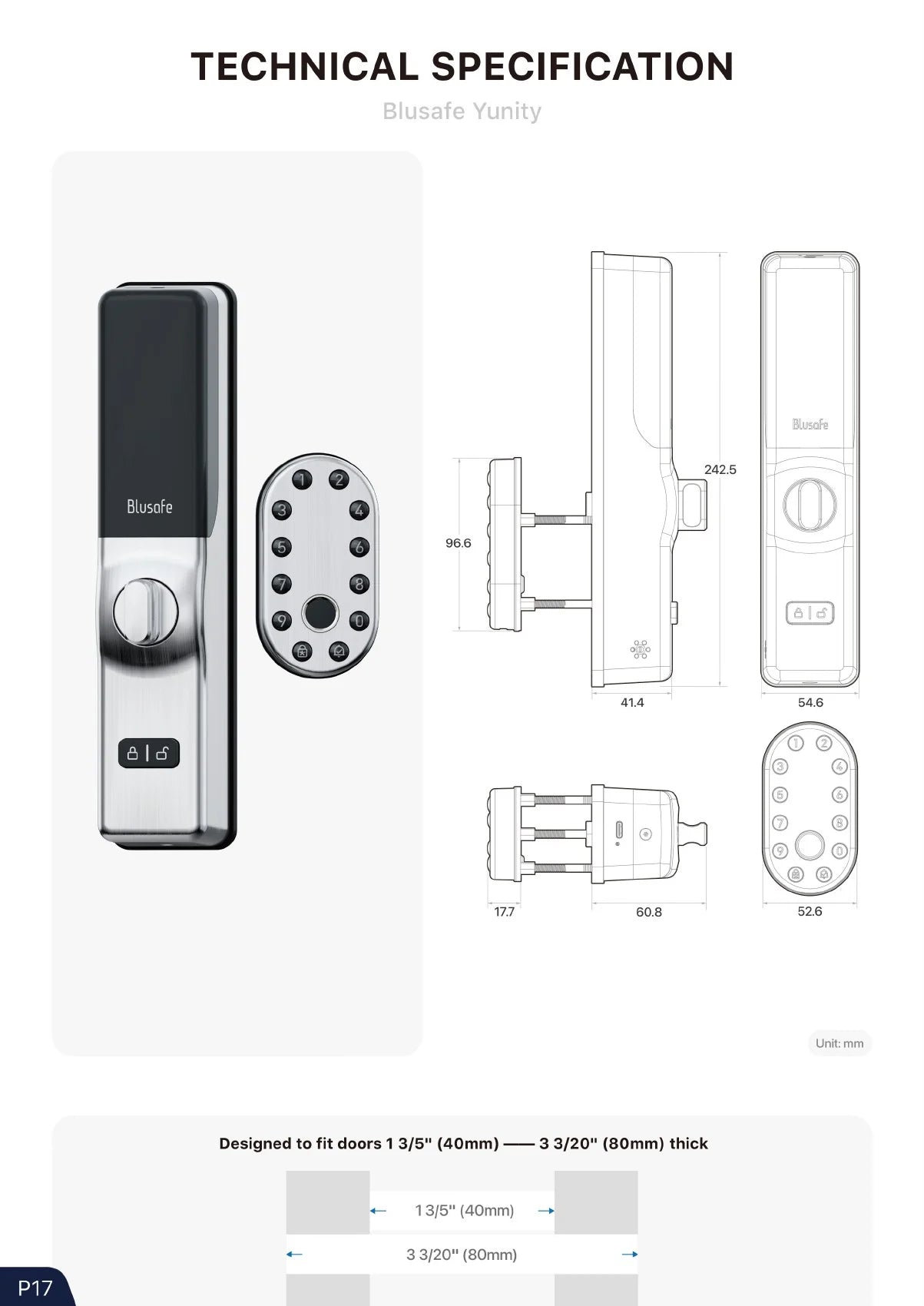

Catalogue P16–18
06
Slam-shut & key-winding multipoint

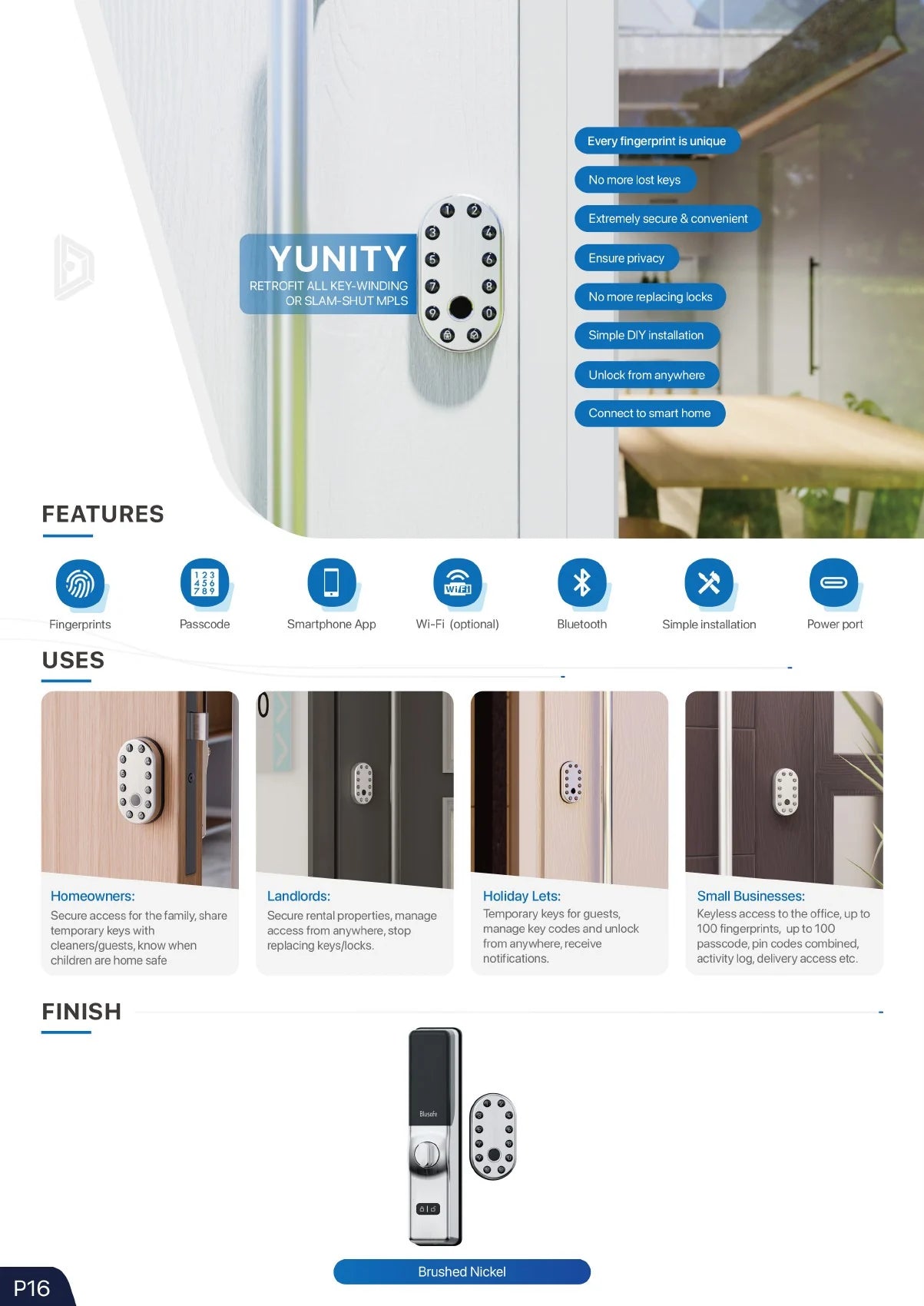

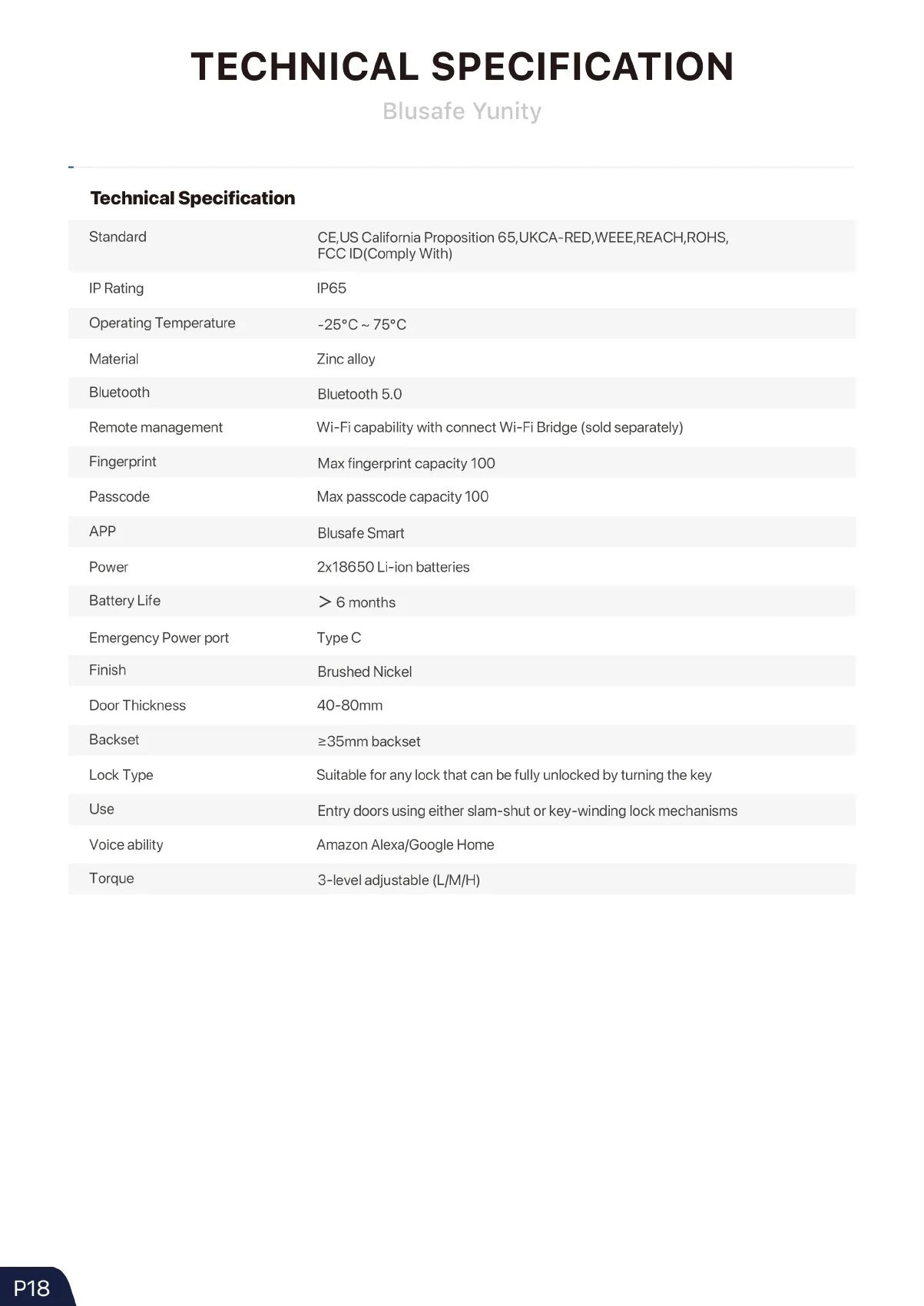

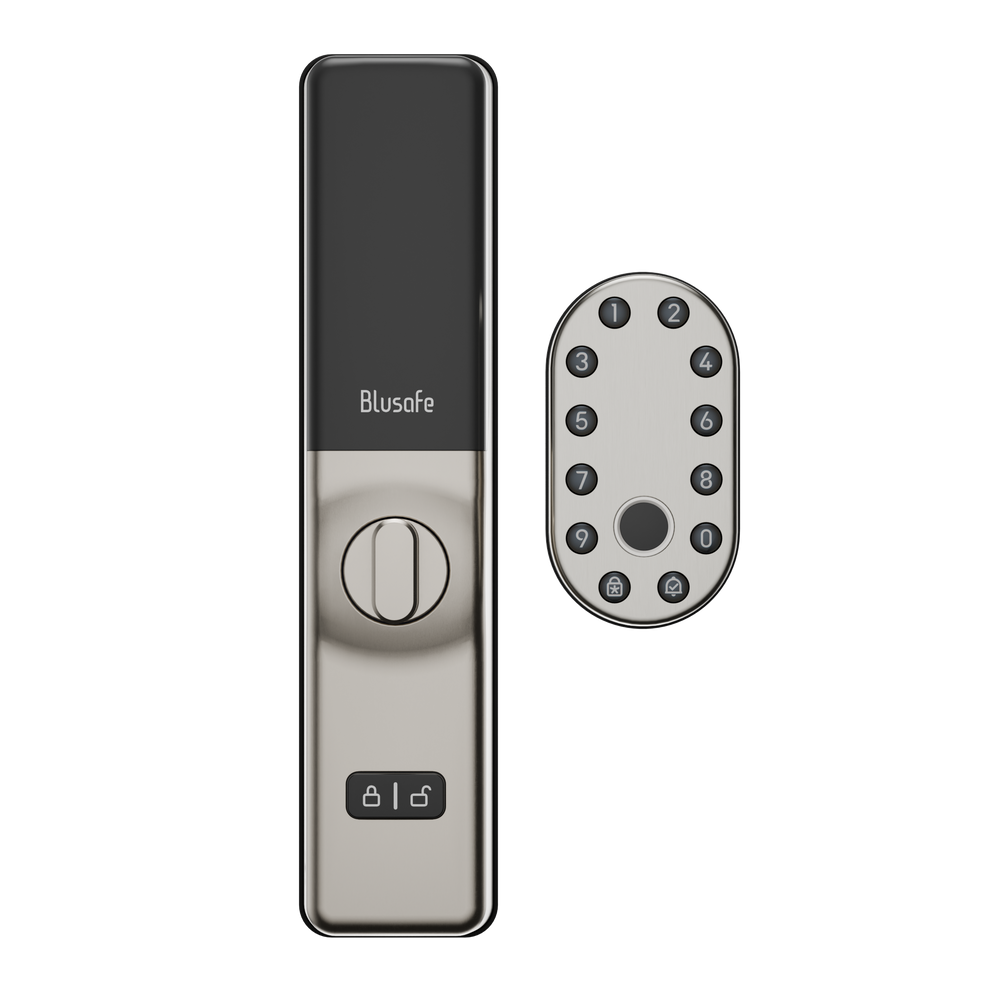

Yunity
Smart access for pull-bar doors. Yunity is designed for mechanisms that unlock by turning the key, including slam-shut and key-winding multipoint locks.
Fingerprint Passcode Bluetooth App control
Door thickness 40–80 mm
Backset At least 35 mm
App Blusafe Smart
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 40–80 mm
Backset At least 35 mm
App Blusafe Smart
Power 2 × 18650 Li-ion batteries
Catalogue finish Brushed nickel
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
07 / 30External doors
Catalogue P19–21
07
Deadbolt

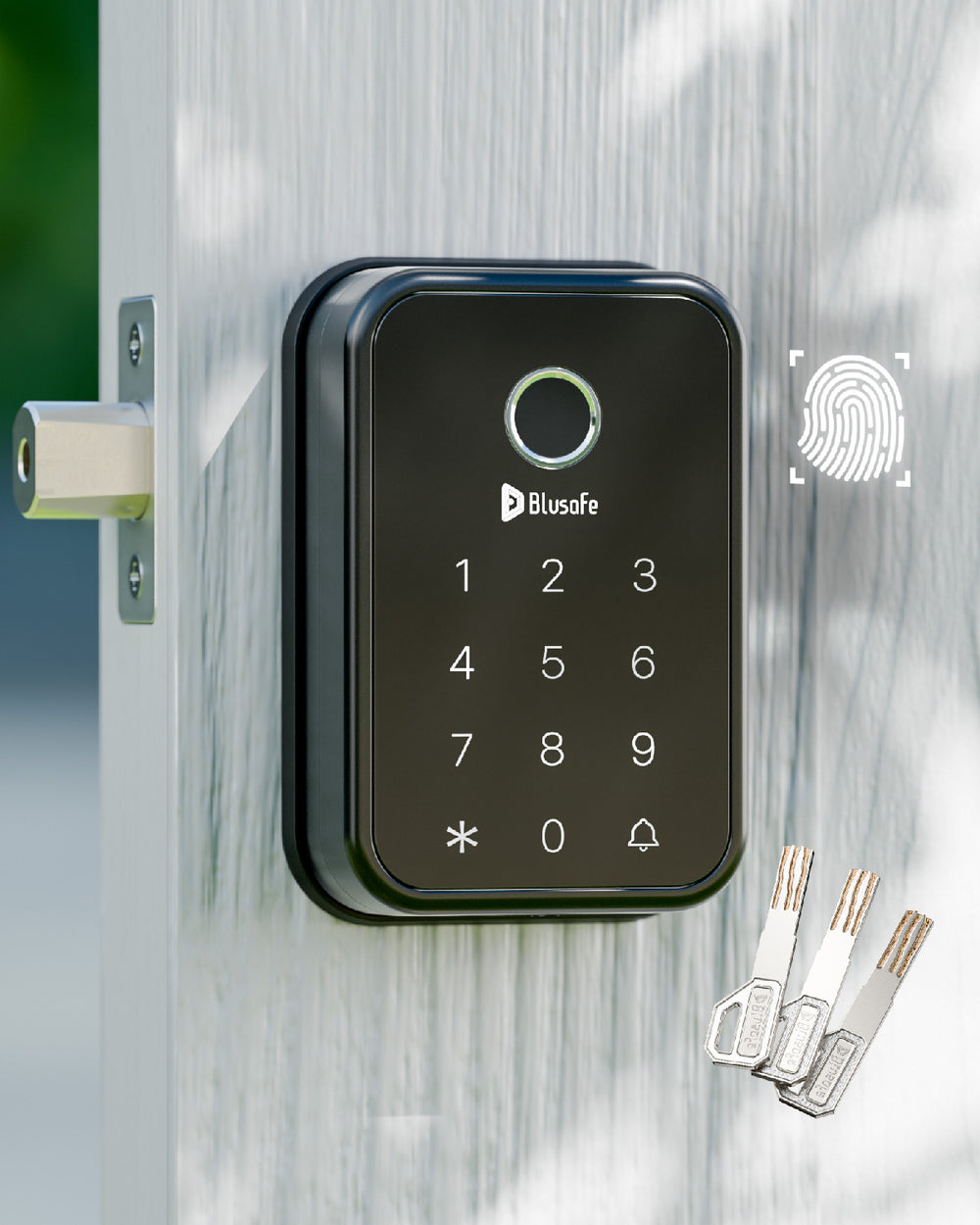

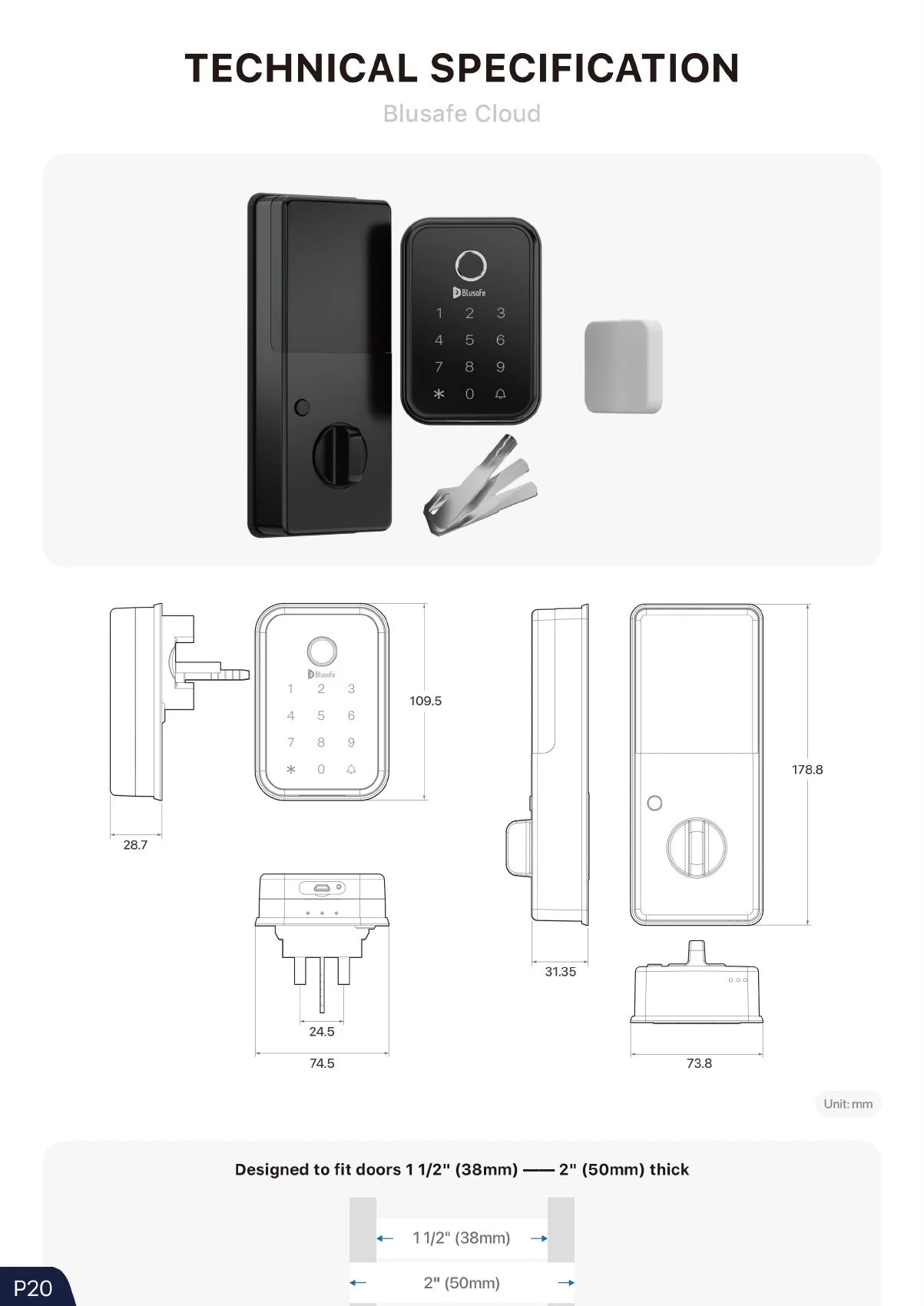

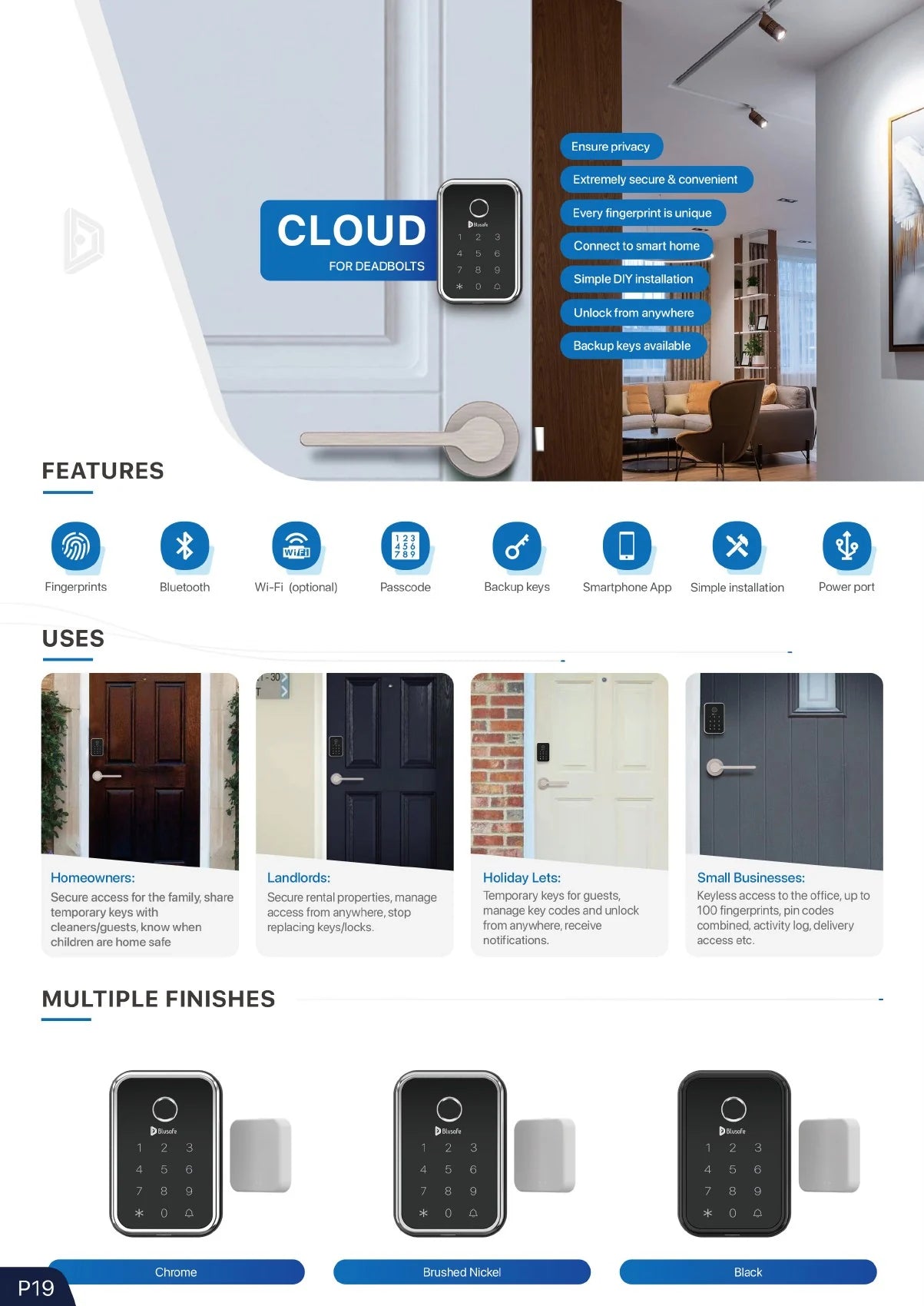

Cloud
A compact smart deadbolt for a familiar front-door setup. Unlock with a fingerprint, passcode, app or backup key.
Fingerprint Passcode Backup key App control
Door thickness 38–50 mm
Backset 60 / 70 mm
App Blusafe Smart
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 3 pages

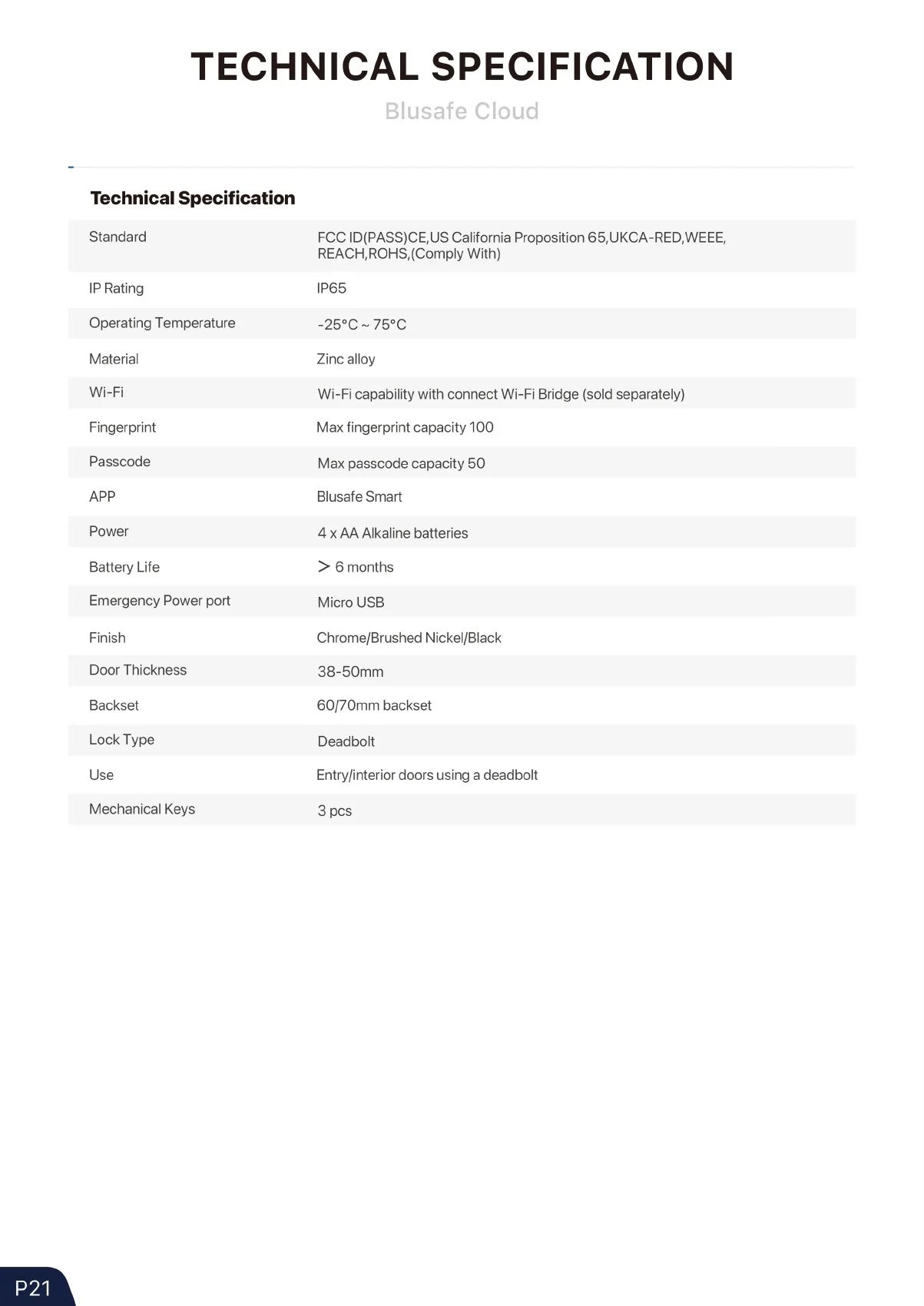

Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 38–50 mm
Backset 60 / 70 mm
App Blusafe Smart
Power 4 × AA batteries
Emergency power Micro USB
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
08 / 30External doors

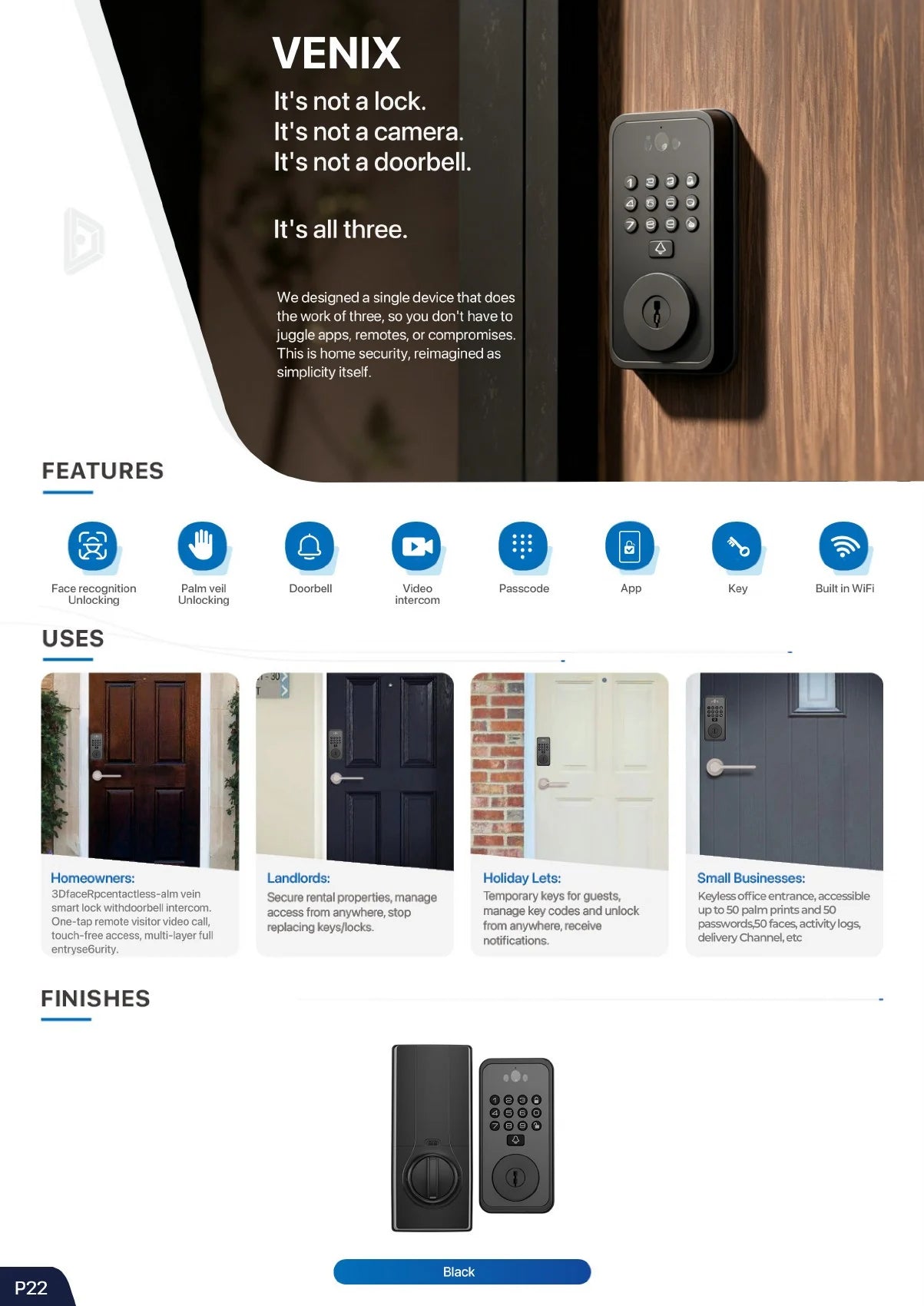

Catalogue P22–24
08

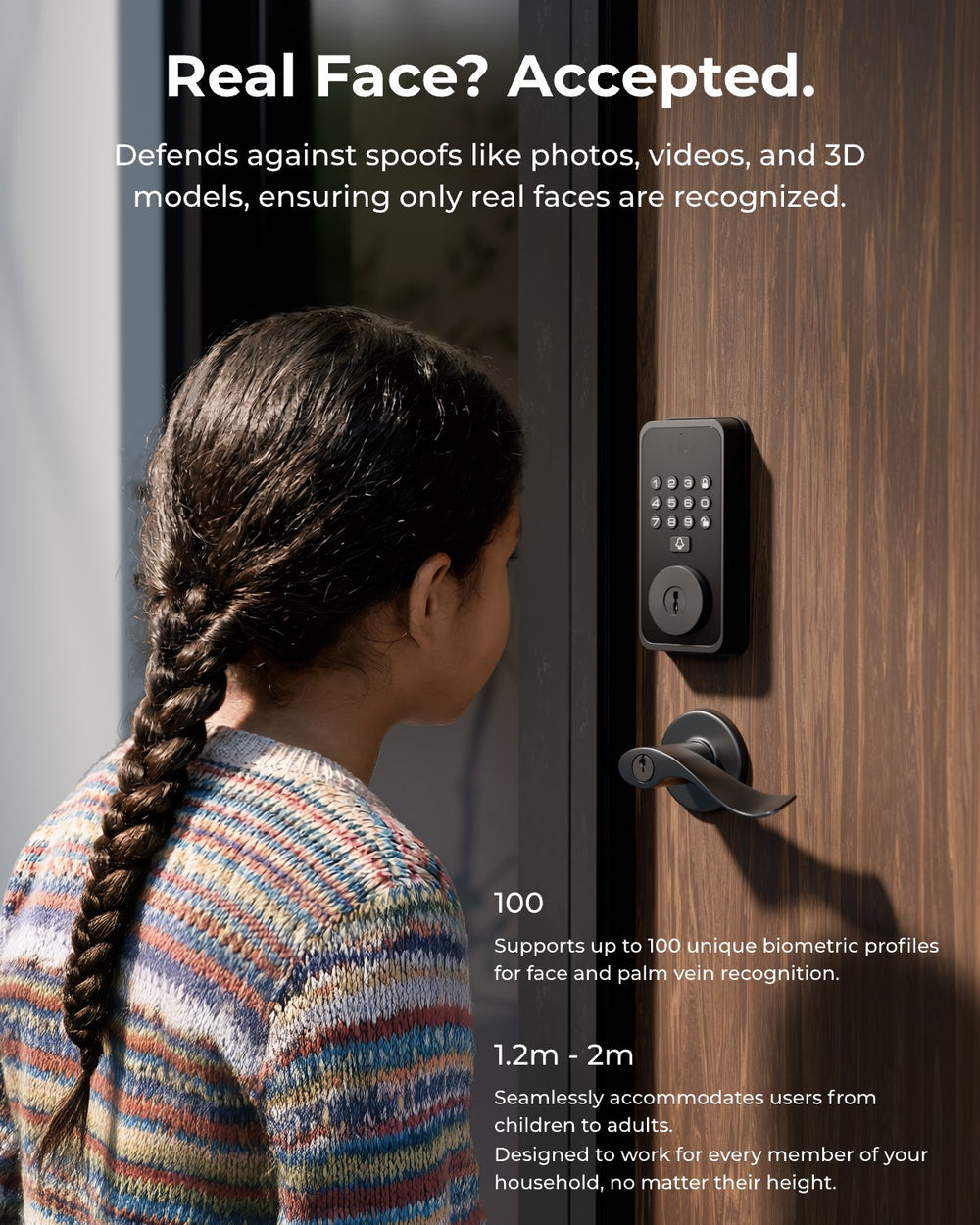

Deadbolt, camera & doorbell

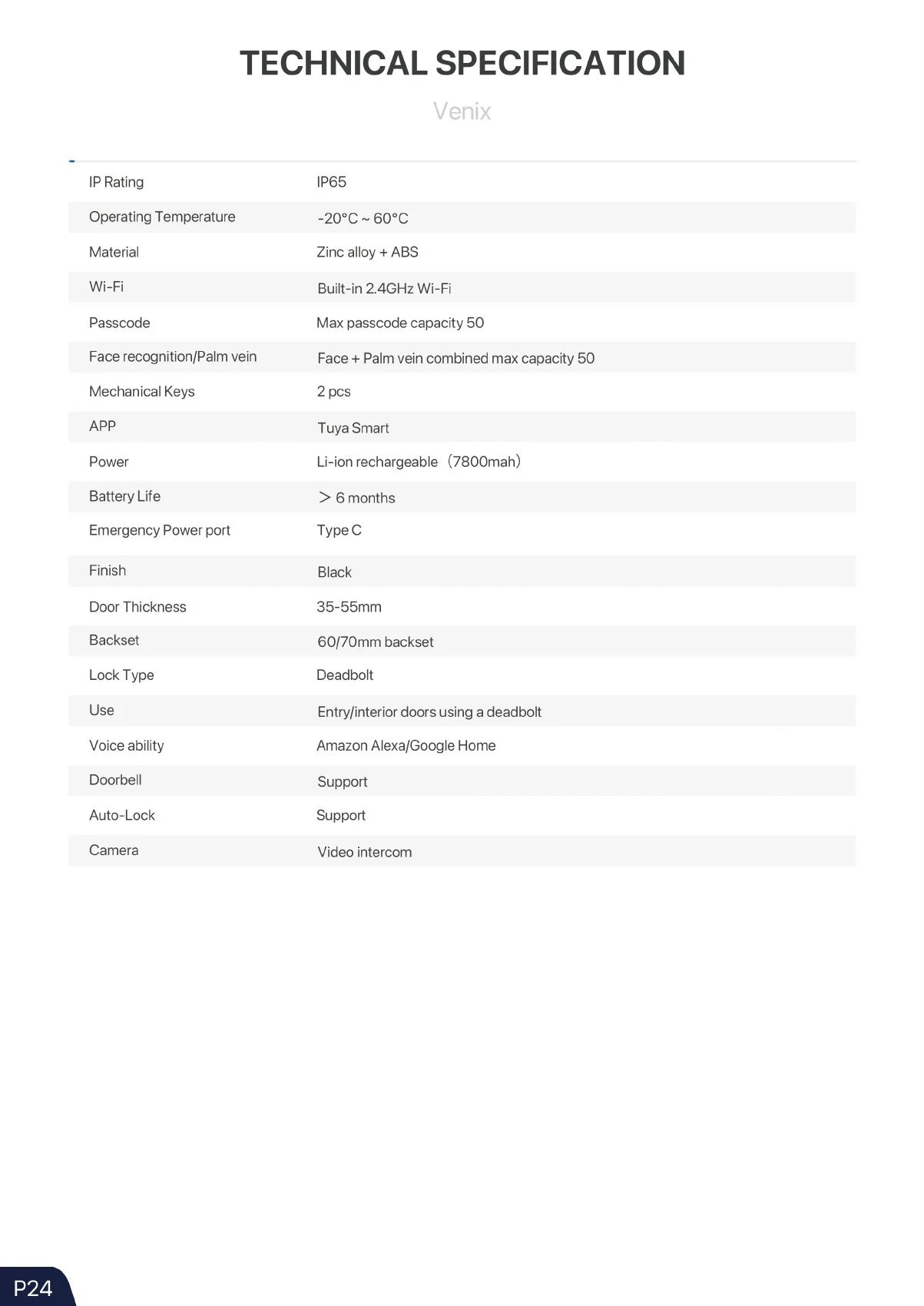

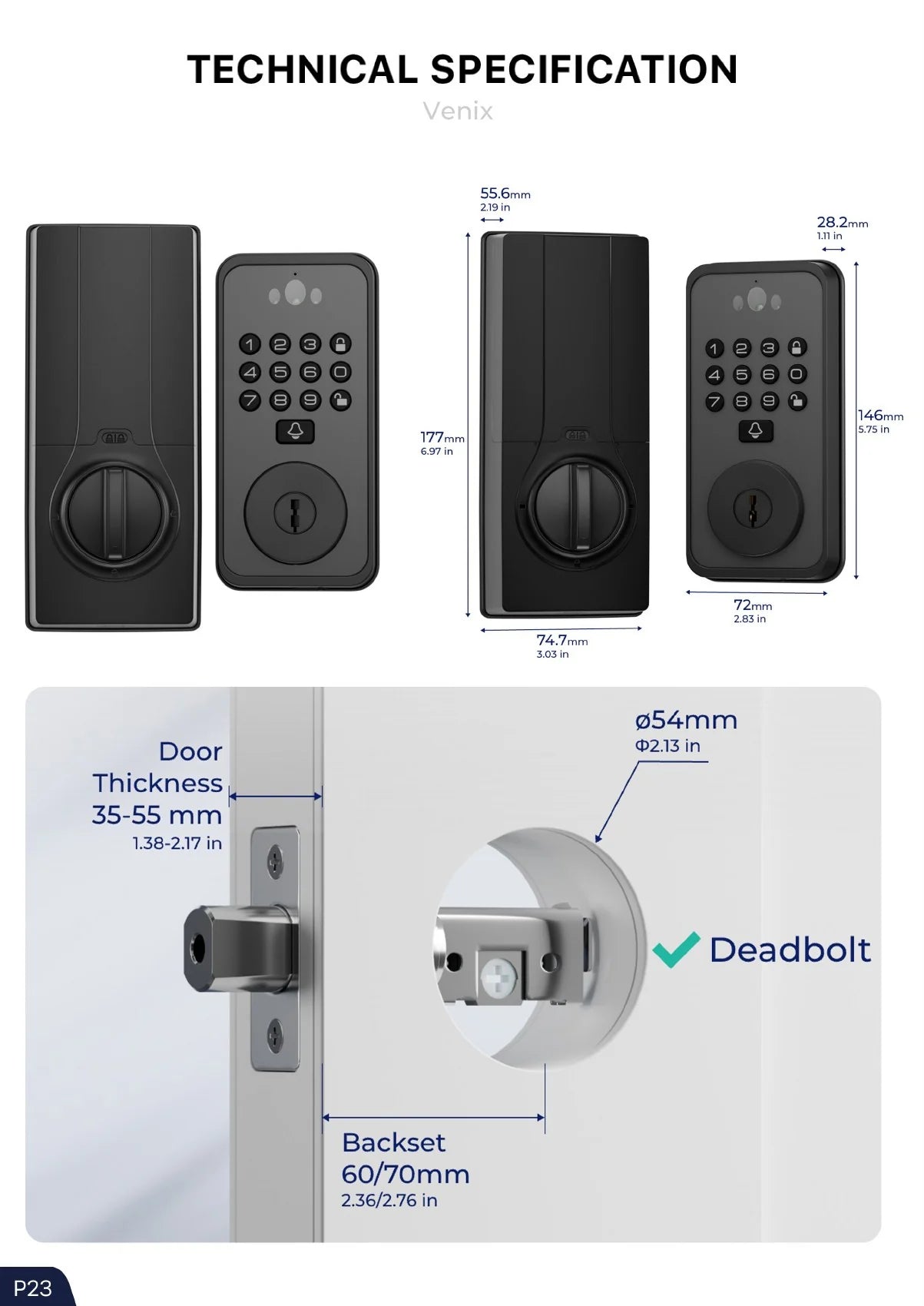

Venix
One front-door device brings together a smart deadbolt, camera and doorbell, with face recognition and palm-vein access.
Face recognition Palm vein Video intercom Doorbell Built-in Wi-Fi
Door thickness 35–55 mm
Backset 60 / 70 mm
App Tuya Smart
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 35–55 mm
Backset 60 / 70 mm
App Tuya Smart
Power Rechargeable 7,800 mAh battery
Emergency power USB-C
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
09 / 30External doors
Catalogue P25–27
09
External latch

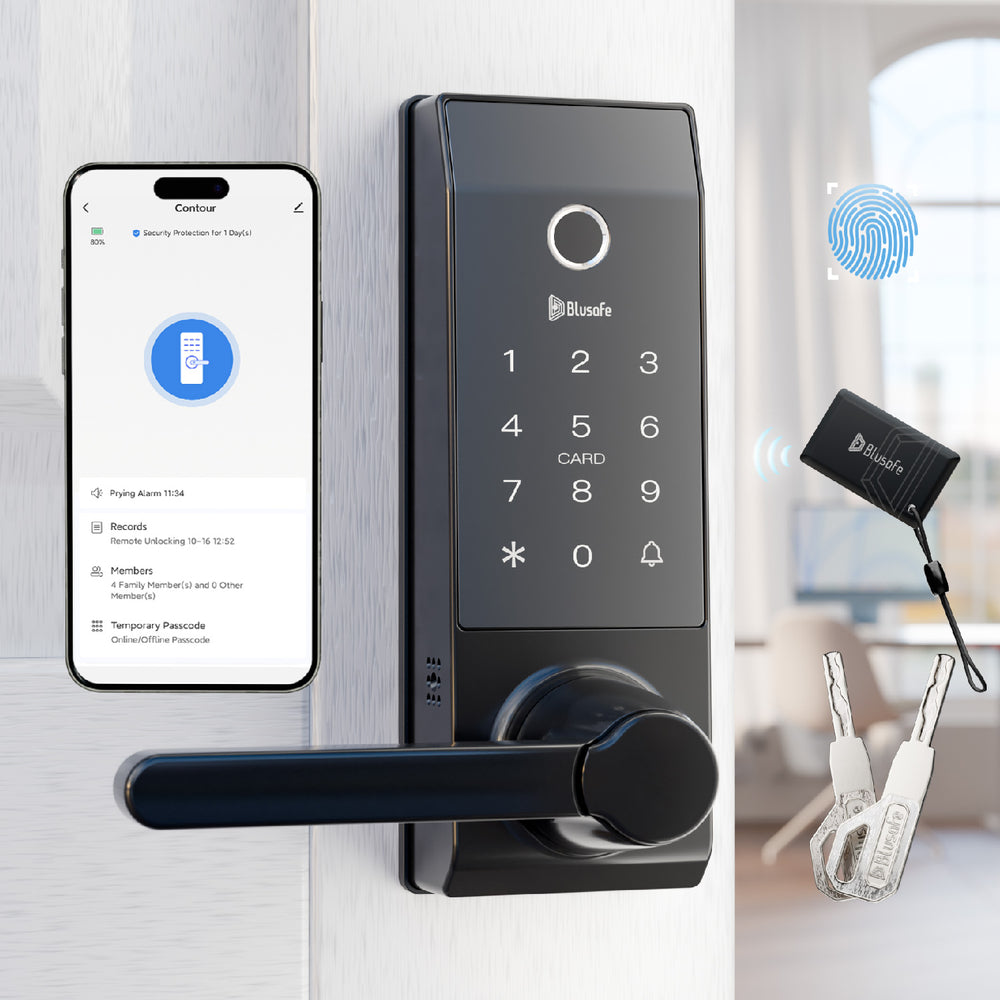

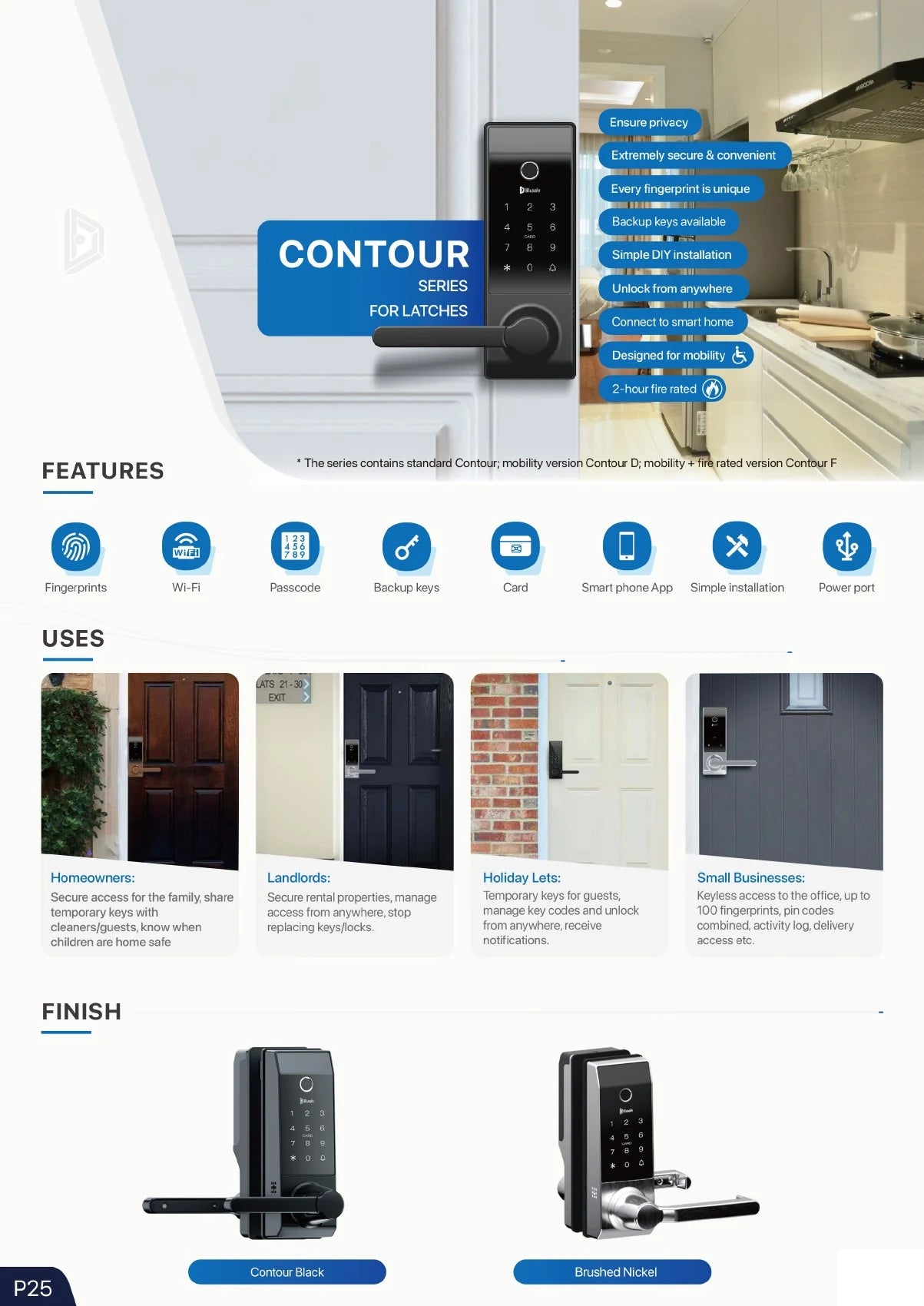

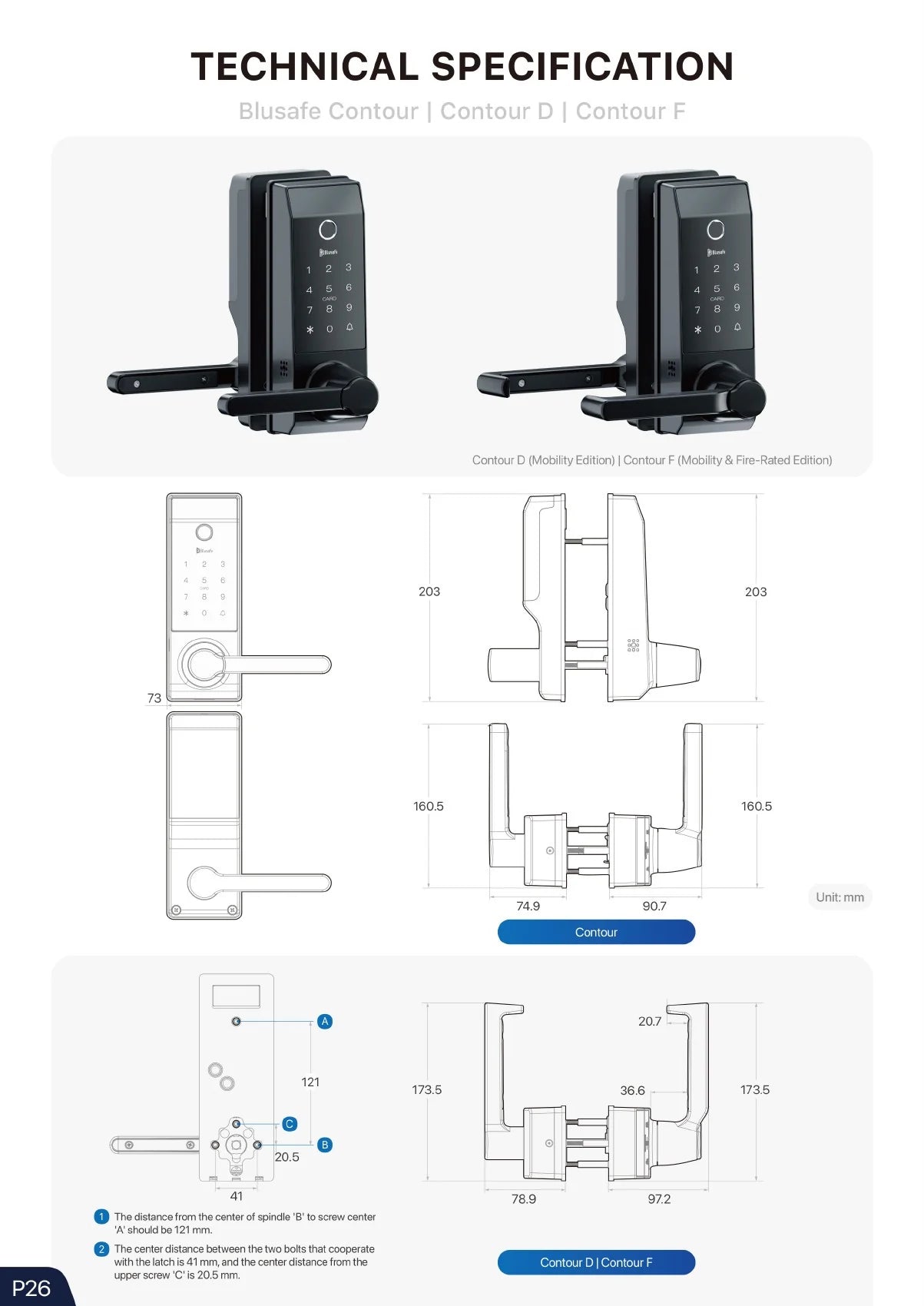

Contour series
Fingerprint, keypad and card entry in a smart latch handle. The brochure covers Contour, Contour D and Contour F; the U.S. listing shows the versions currently offered.
Fingerprint Passcode Key card Backup key Built-in Wi-Fi
Door thickness 35–54 mm
Backset 60 / 70 mm (F: 70 mm)
App Blusafe Smart
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 35–54 mm
Backset 60 / 70 mm (F: 70 mm)
App Blusafe Smart
Power 8 × AA batteries
Catalogue finishes Black, brushed nickel
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
10 / 30External doors

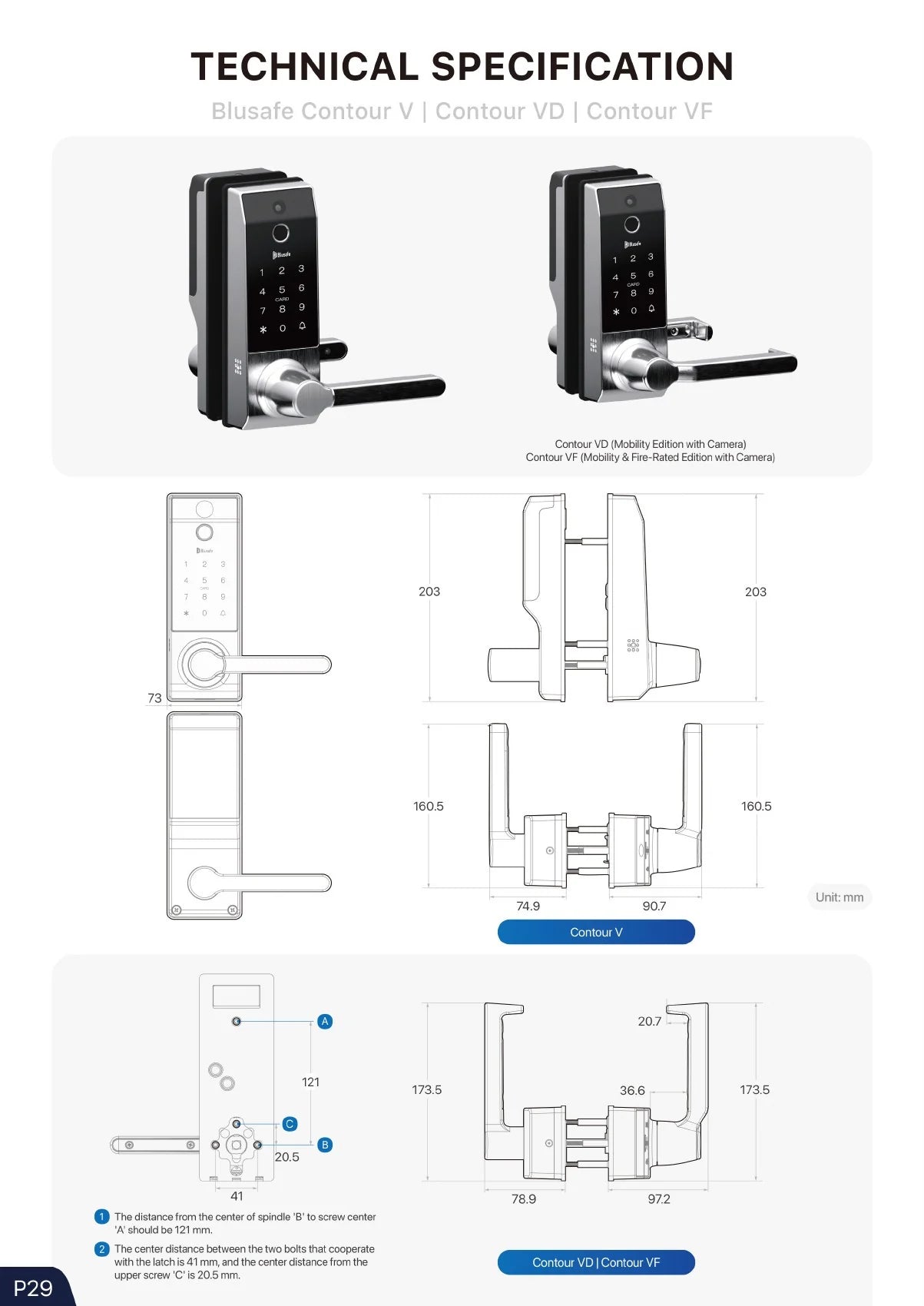

Catalogue P28–30
10
External latch with camera

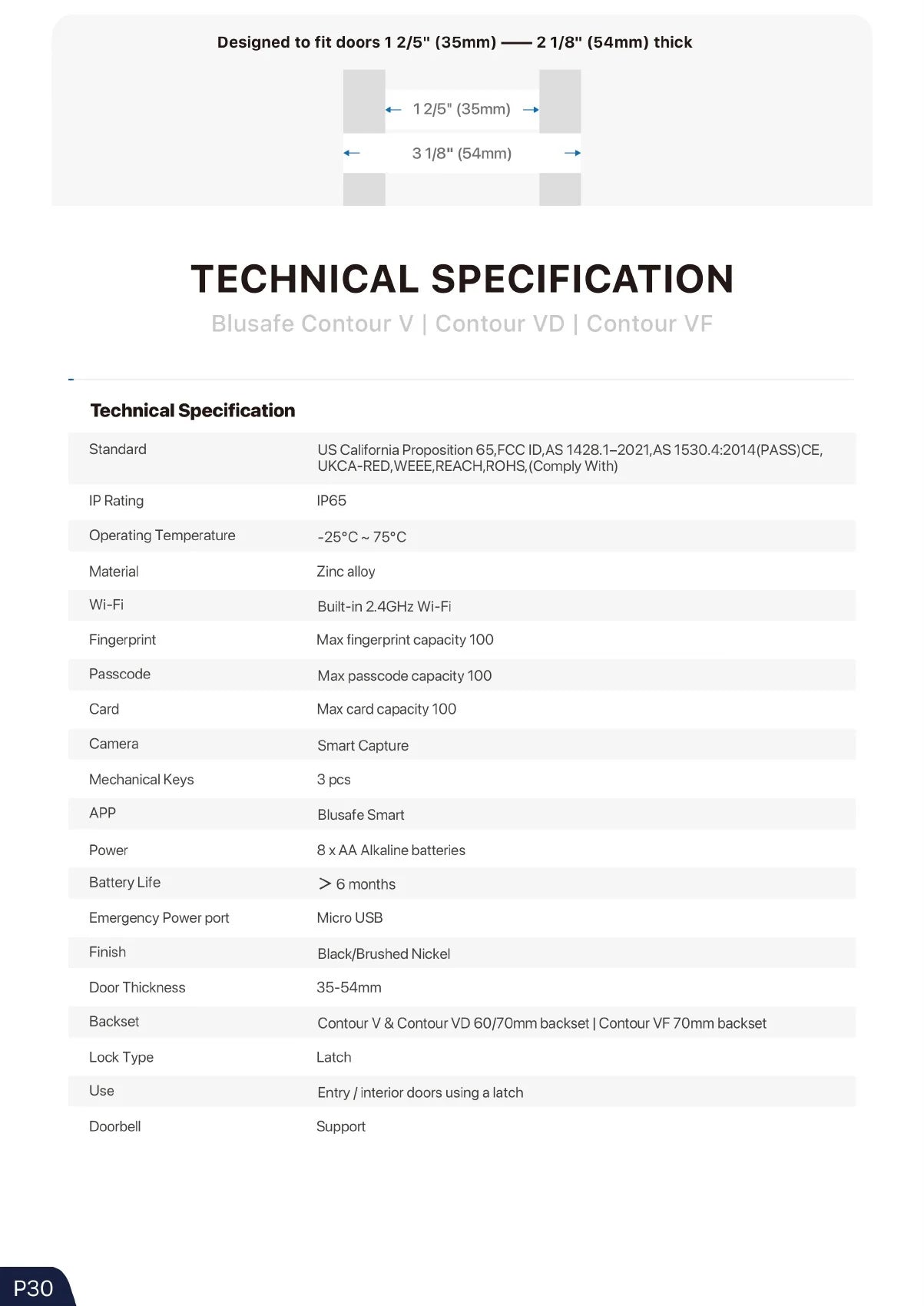

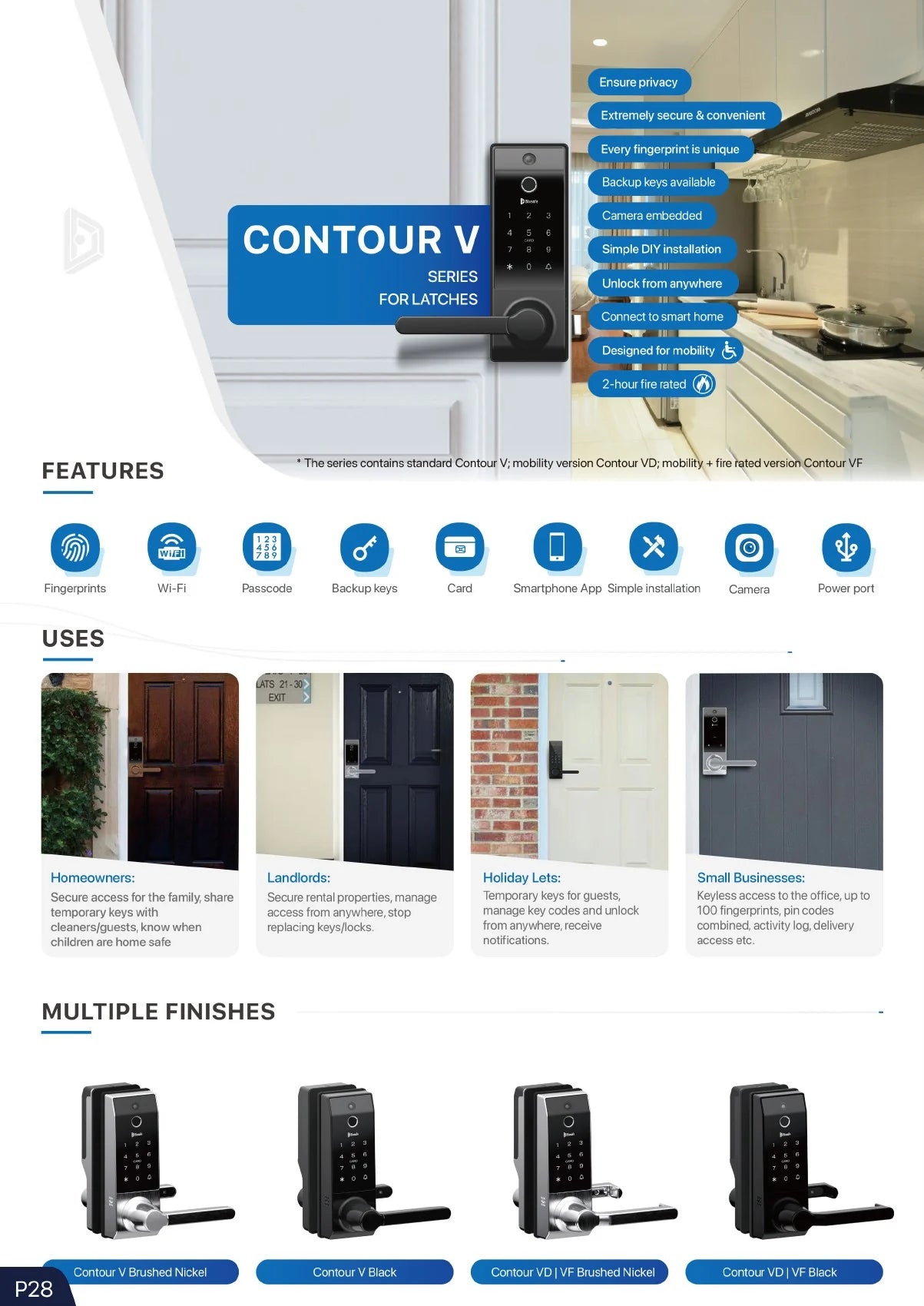

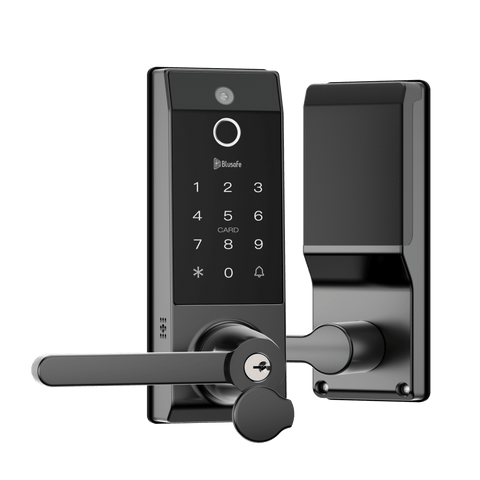

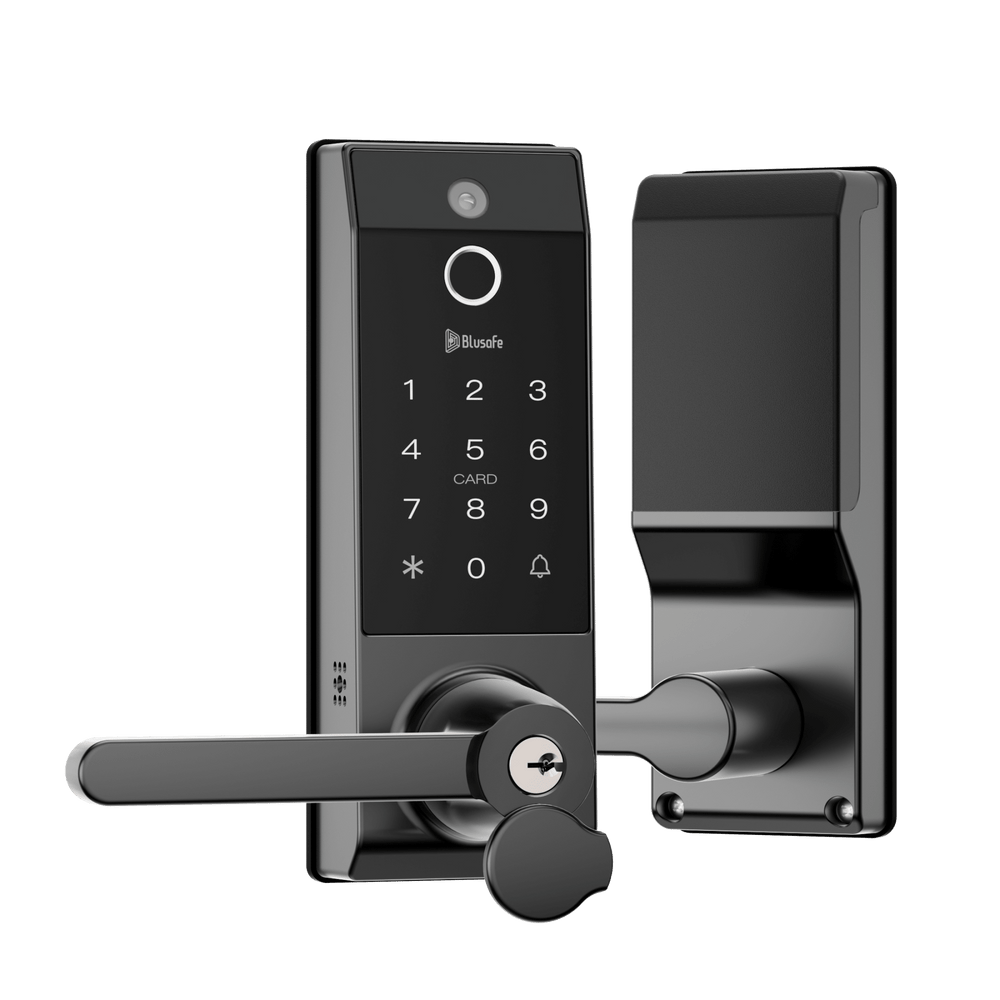

Contour V series
The camera-equipped Contour family adds Smart Capture to keyless latch-door access. Includes the brochure’s V, VD and VF versions.
Fingerprint Passcode Key card Camera Built-in Wi-Fi
Door thickness 35–54 mm
Backset 60 / 70 mm (VF: 70 mm)
App Blusafe Smart
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 35–54 mm
Backset 60 / 70 mm (VF: 70 mm)
App Blusafe Smart
Power 8 × AA batteries
Camera Smart Capture
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
11 / 30Internal doors
Catalogue P31–33
11

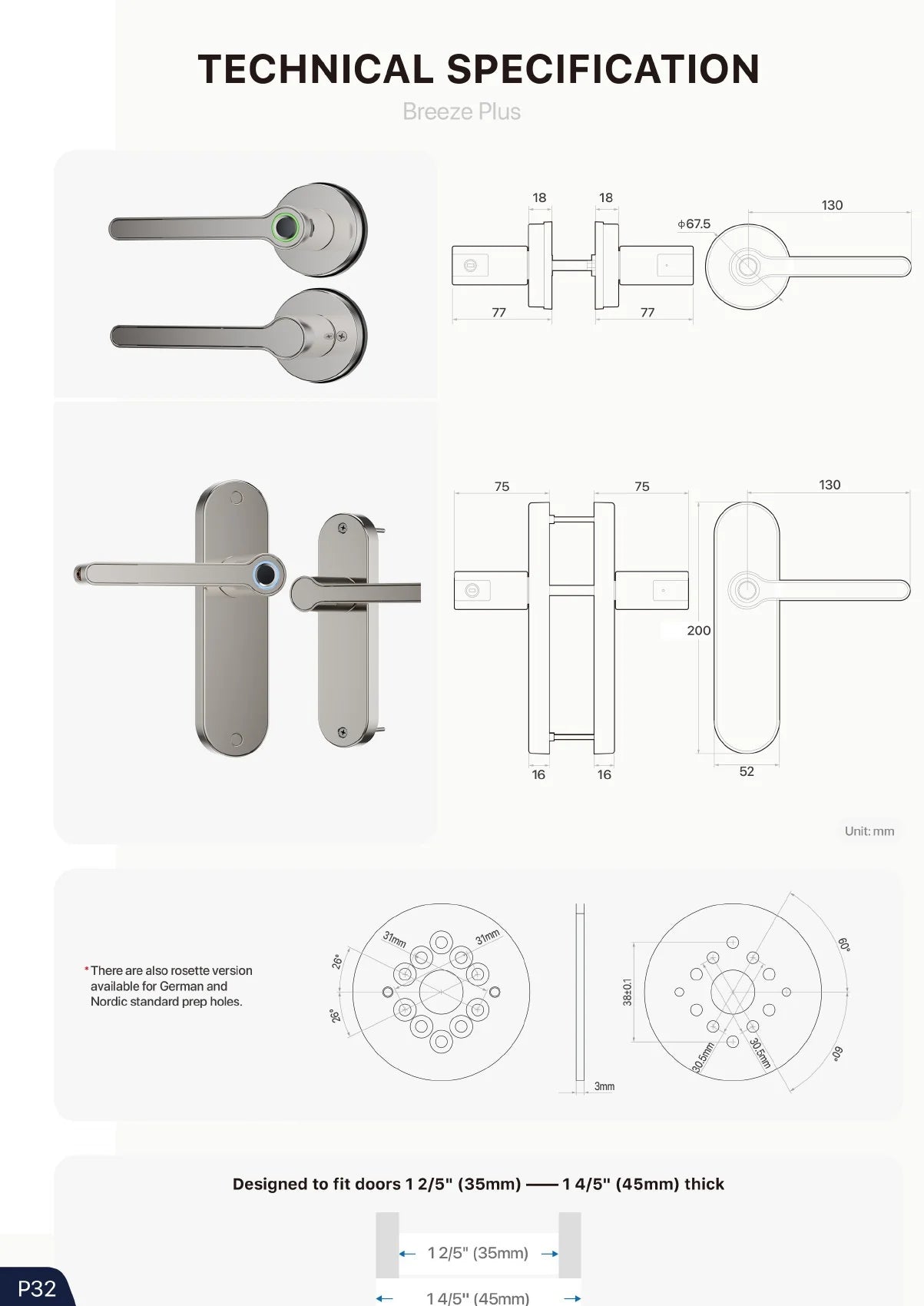

Internal latch with app control

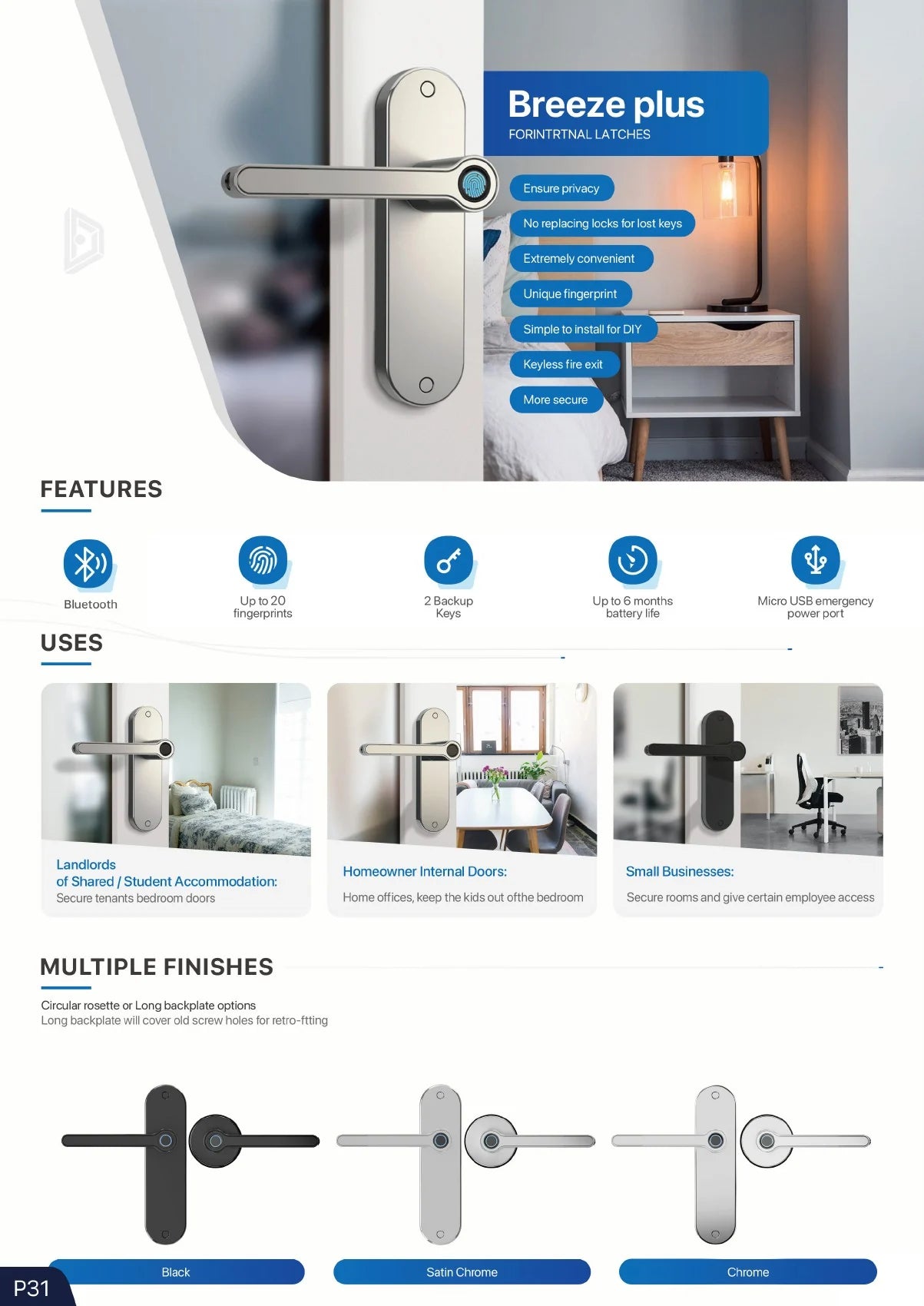

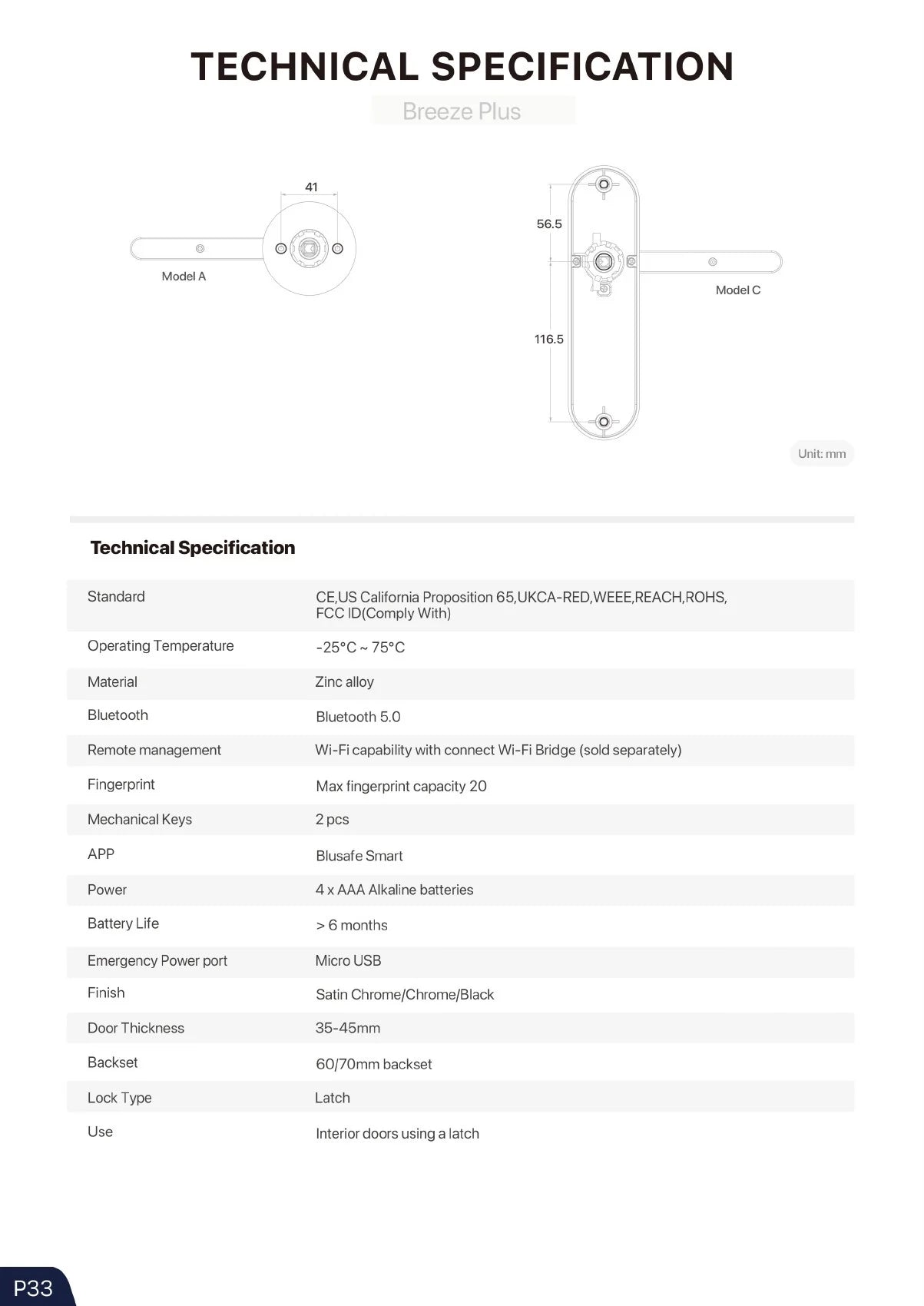

Breeze Plus
A fingerprint handle for privacy inside the home, with Bluetooth and app control. The brochure includes rose and backplate designs.
Fingerprint Bluetooth App control Backup key
Door thickness 35–45 mm
Backset 60 / 70 mm
App Blusafe Smart
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 35–45 mm
Backset 60 / 70 mm
App Blusafe Smart
Fingerprints Up to 20
Power 4 × AAA batteries
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
12 / 30Internal doors
Catalogue P34–36
12
Internal latch

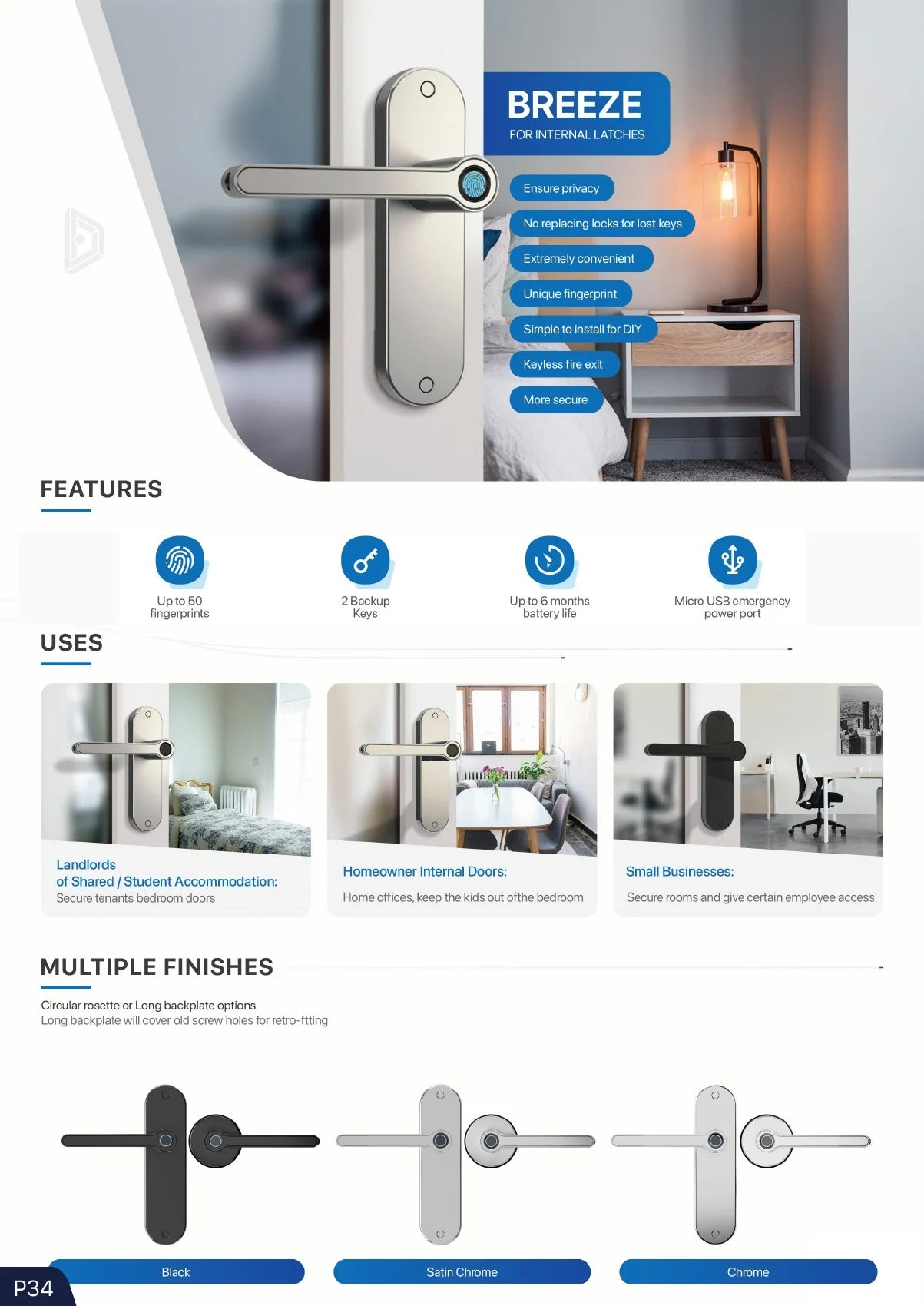

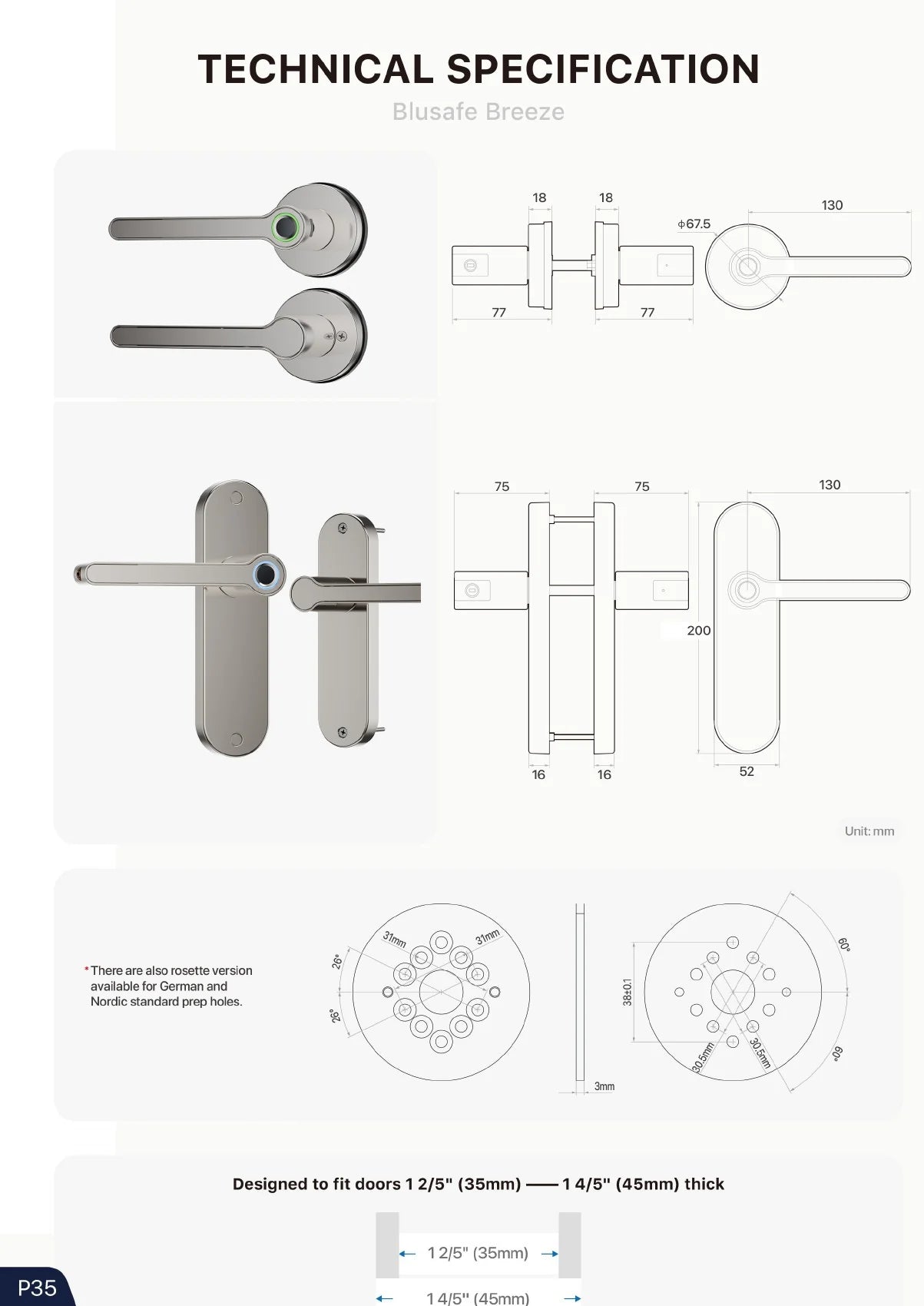

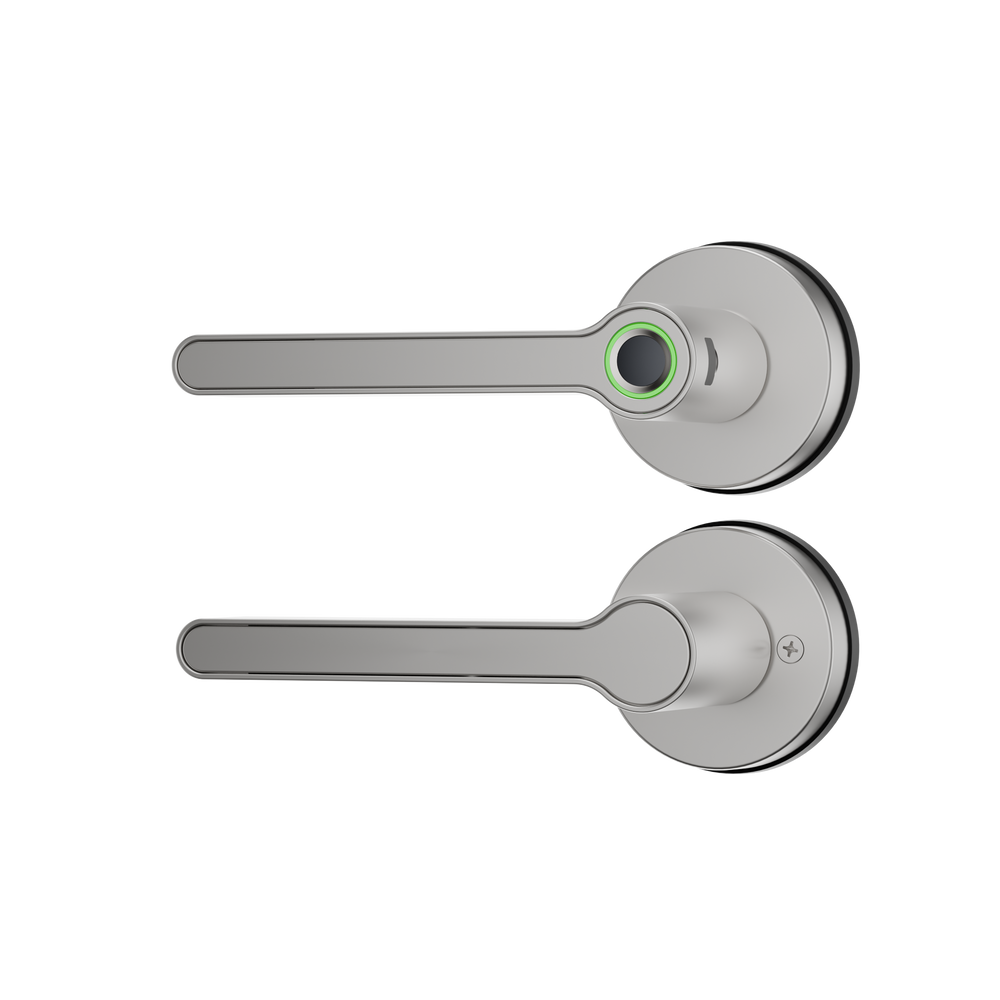

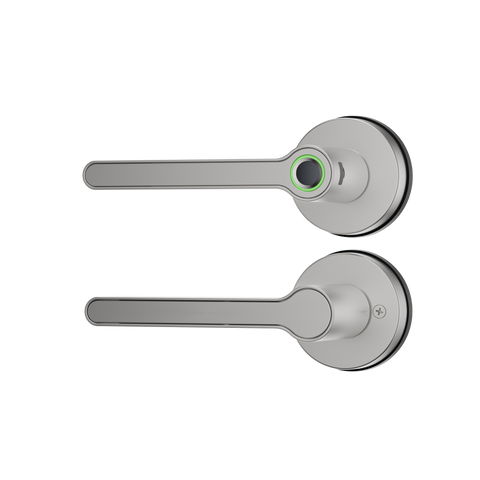

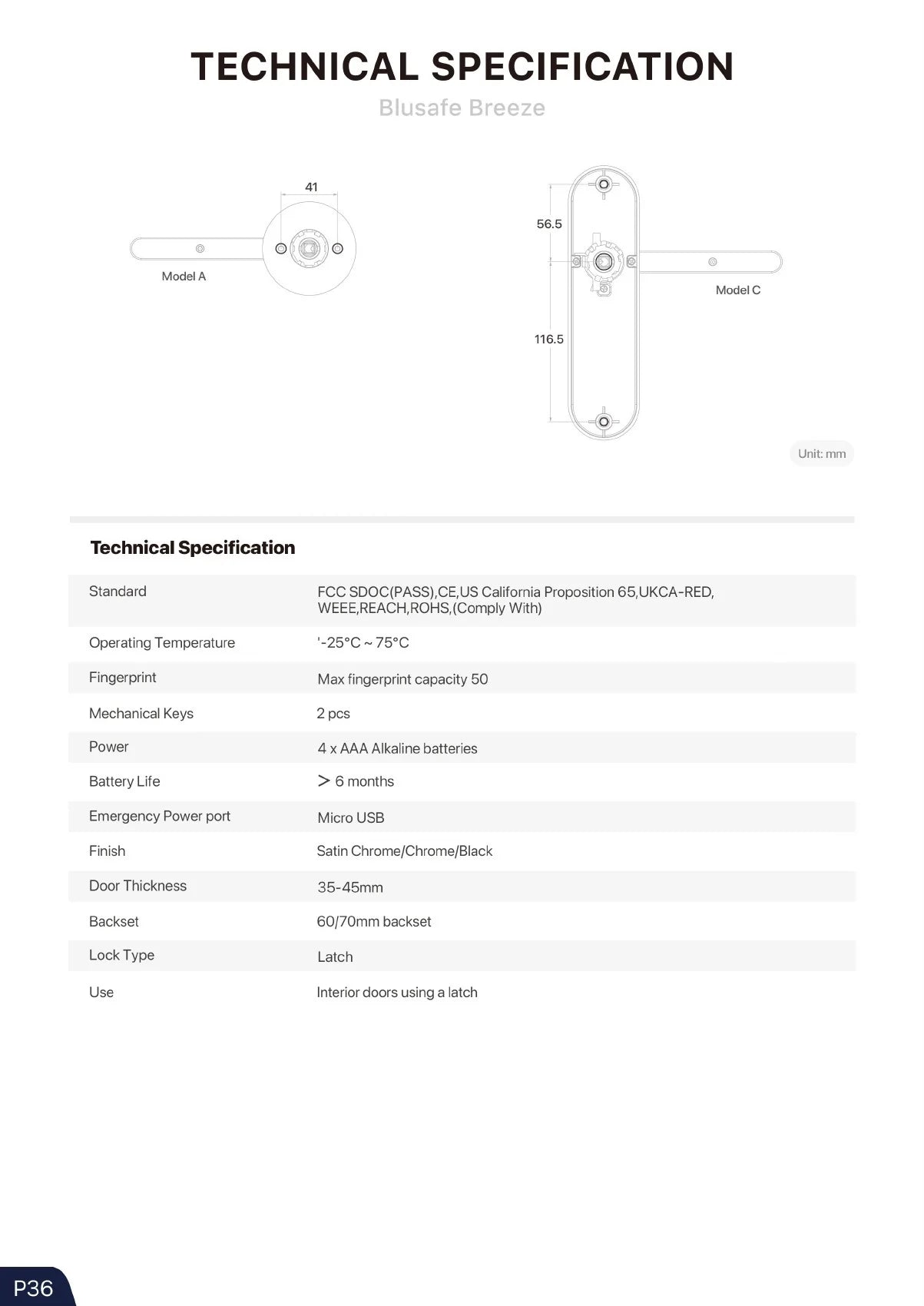

Breeze
Everyday privacy for bedrooms, home offices and shared spaces. Choose a rose or long-backplate design from the current U.S. Breeze range.
Fingerprint Backup key Emergency USB power
Door thickness 35–45 mm
Backset 60 / 70 mm
Fingerprints Up to 50
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 35–45 mm
Backset 60 / 70 mm
Fingerprints Up to 50
Power 4 × AAA batteries
Catalogue finishes Satin chrome, chrome, black
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.

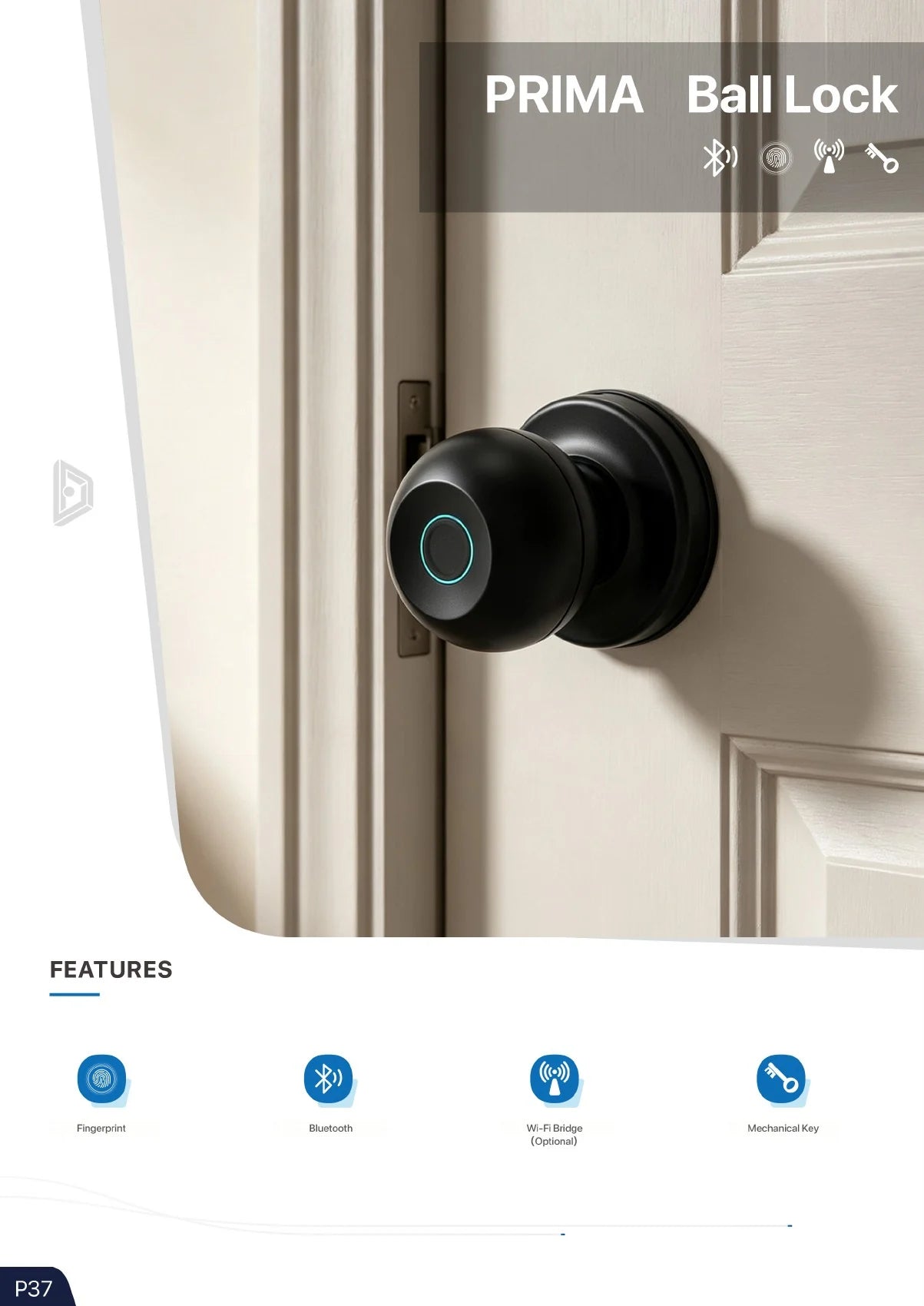

13 / 30Internal doors
Catalogue P37–38
13
Smart knob / ball lock

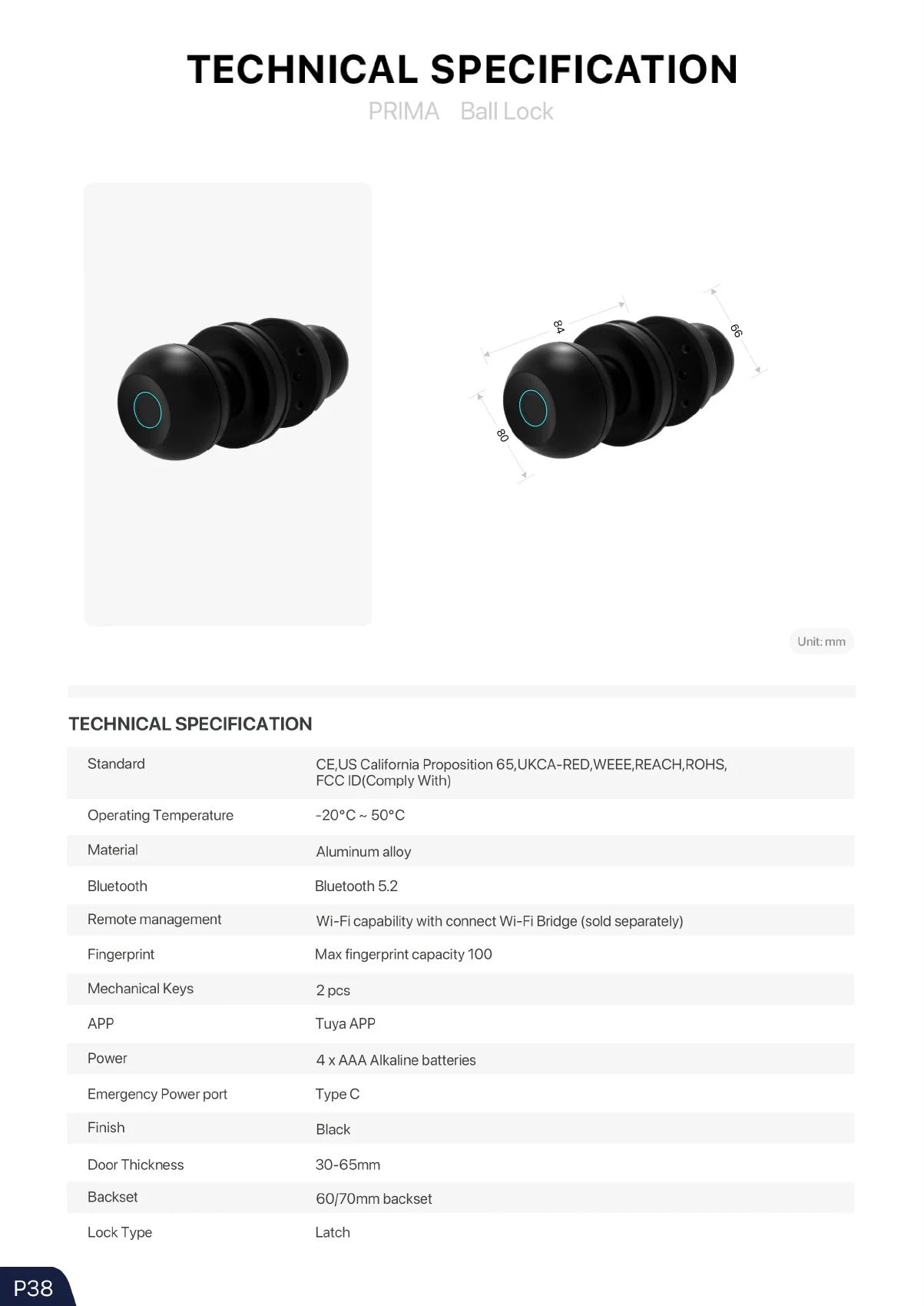

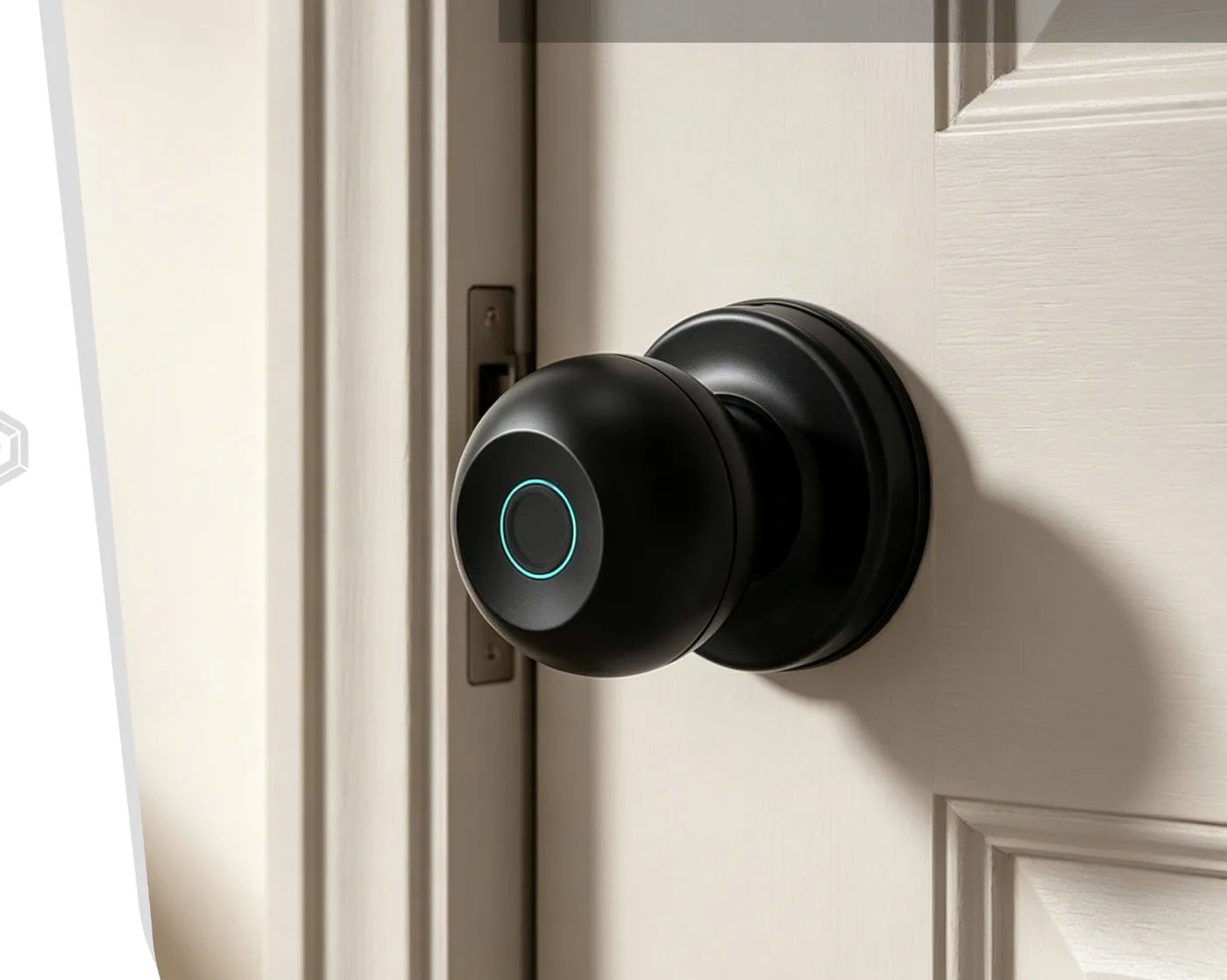

Prima
A compact fingerprint ball lock that brings keyless access to interior spaces, with Bluetooth and a mechanical backup.
Fingerprint Bluetooth Backup key Optional Wi-Fi bridge
Door thickness 30–65 mm
Backset 60 / 70 mm
App Tuya
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Door thickness 30–65 mm
Backset 60 / 70 mm
App Tuya
Power 4 × AAA batteries
Catalogue finish Black
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P37 P38
14 / 30Windows
Catalogue P39–40
14
Smart window handle

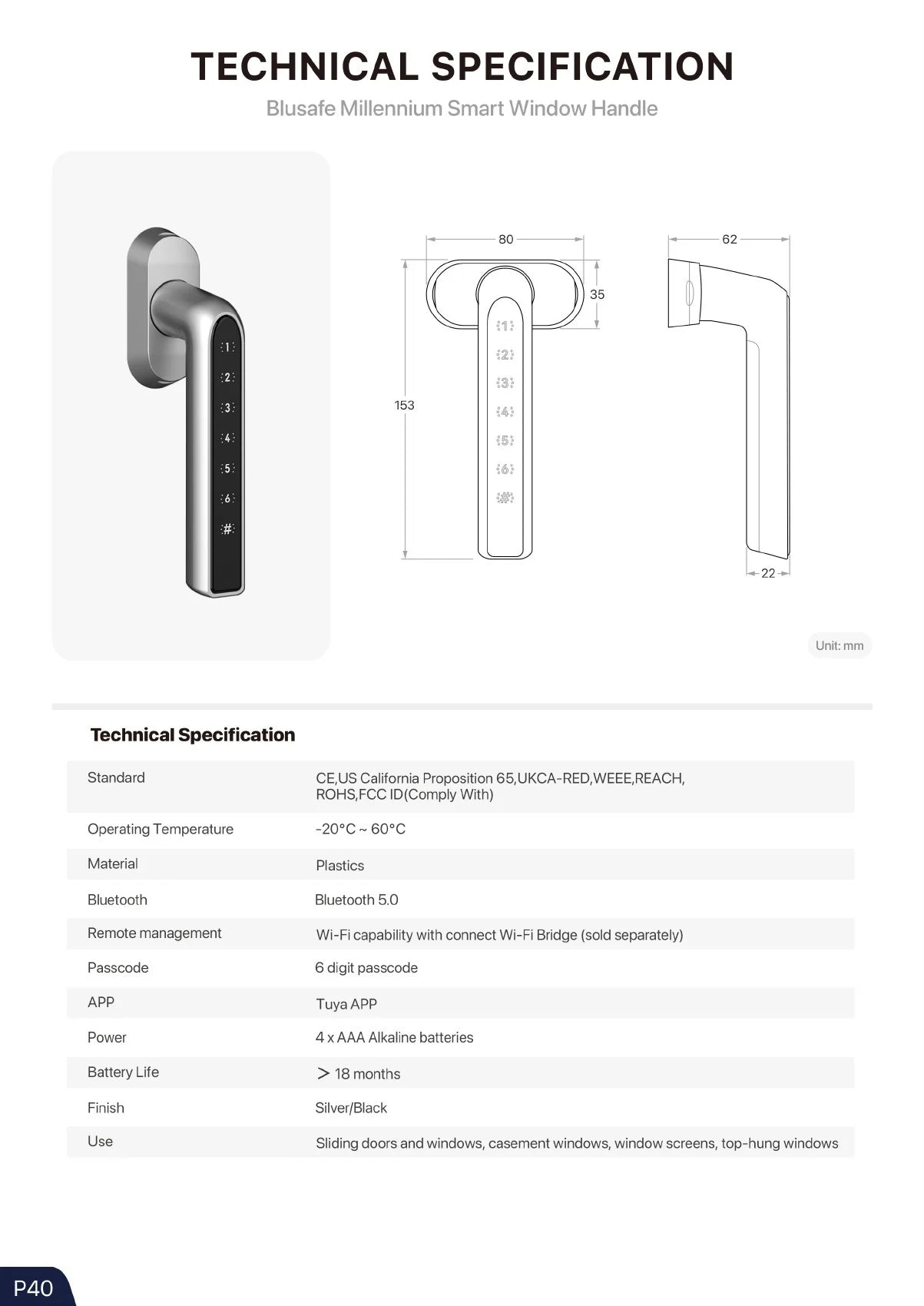

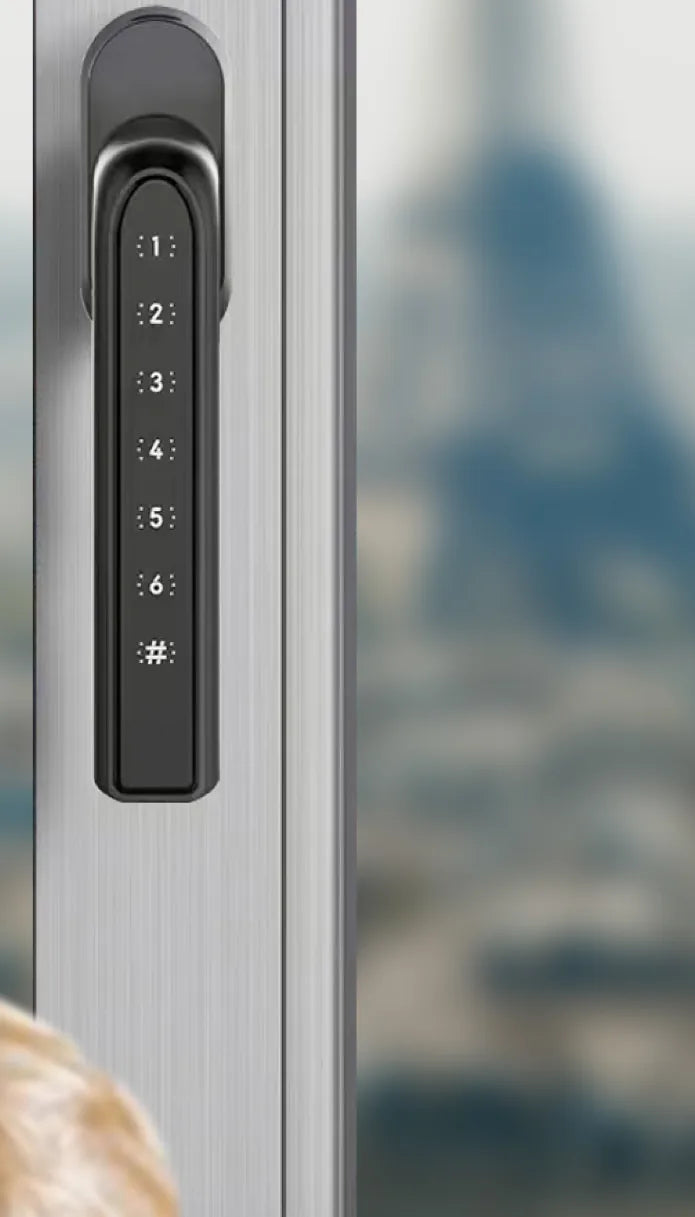

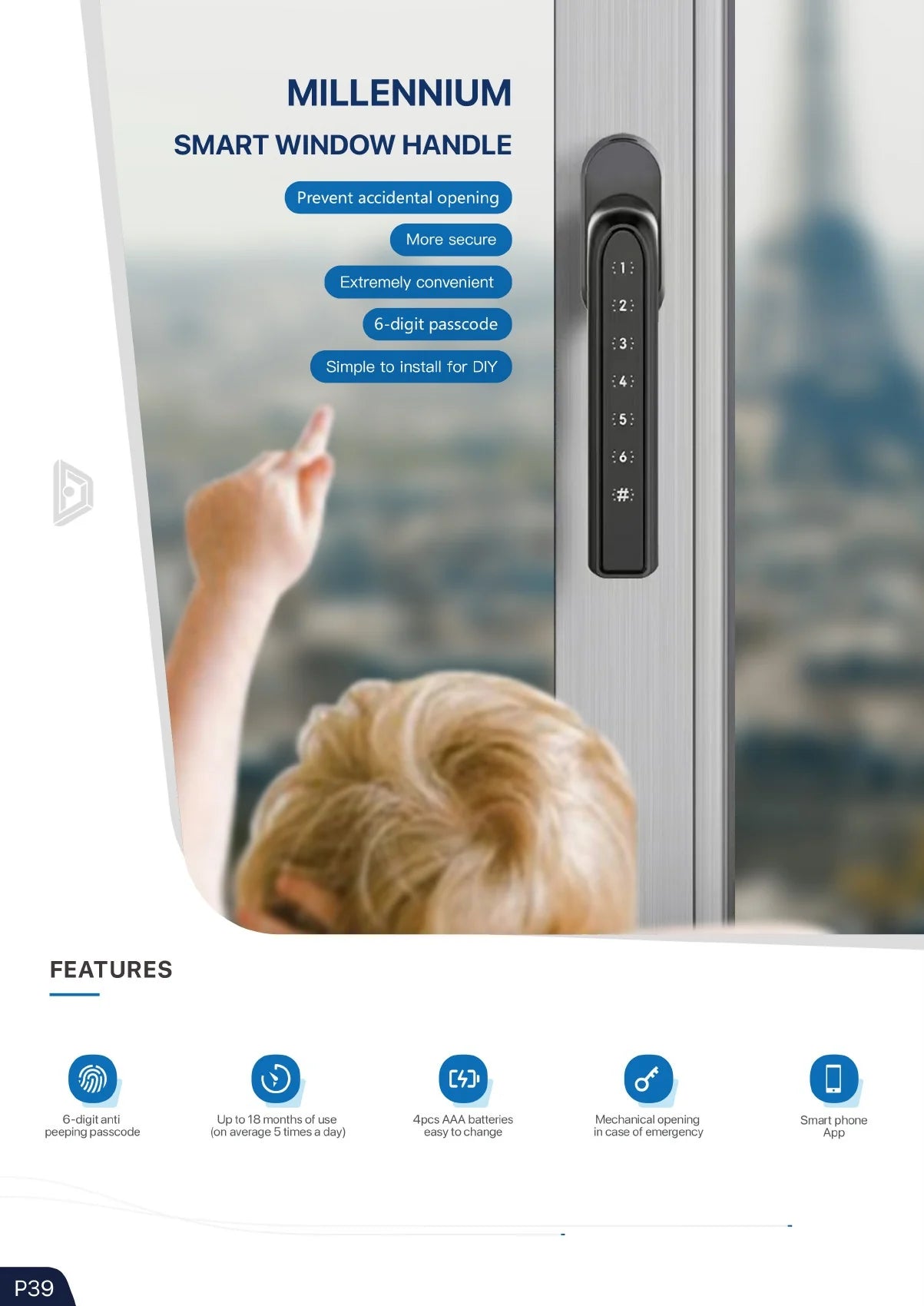

Millennium
A passcode window handle designed to help control opening, with app access for compatible window and sliding-door installations.
Passcode Bluetooth App control
Application Windows and sliding doors
App Tuya
Passcode 6 digits
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Application Windows and sliding doors
App Tuya
Passcode 6 digits
Power 4 × AAA batteries
Catalogue finishes Silver, black
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P39 P40
15 / 30Accessories
Catalogue P41–42
15
Fingerprint padlock

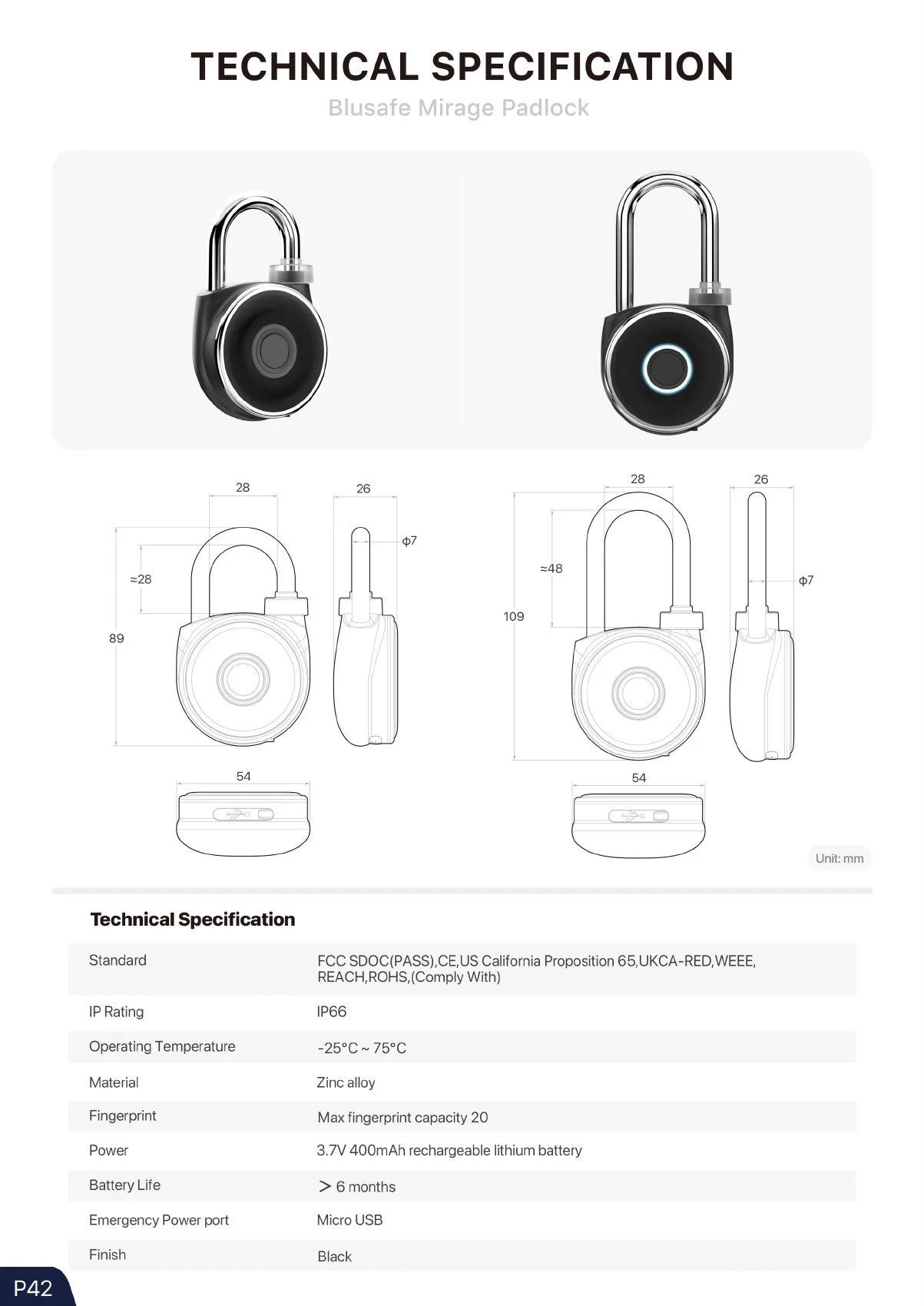

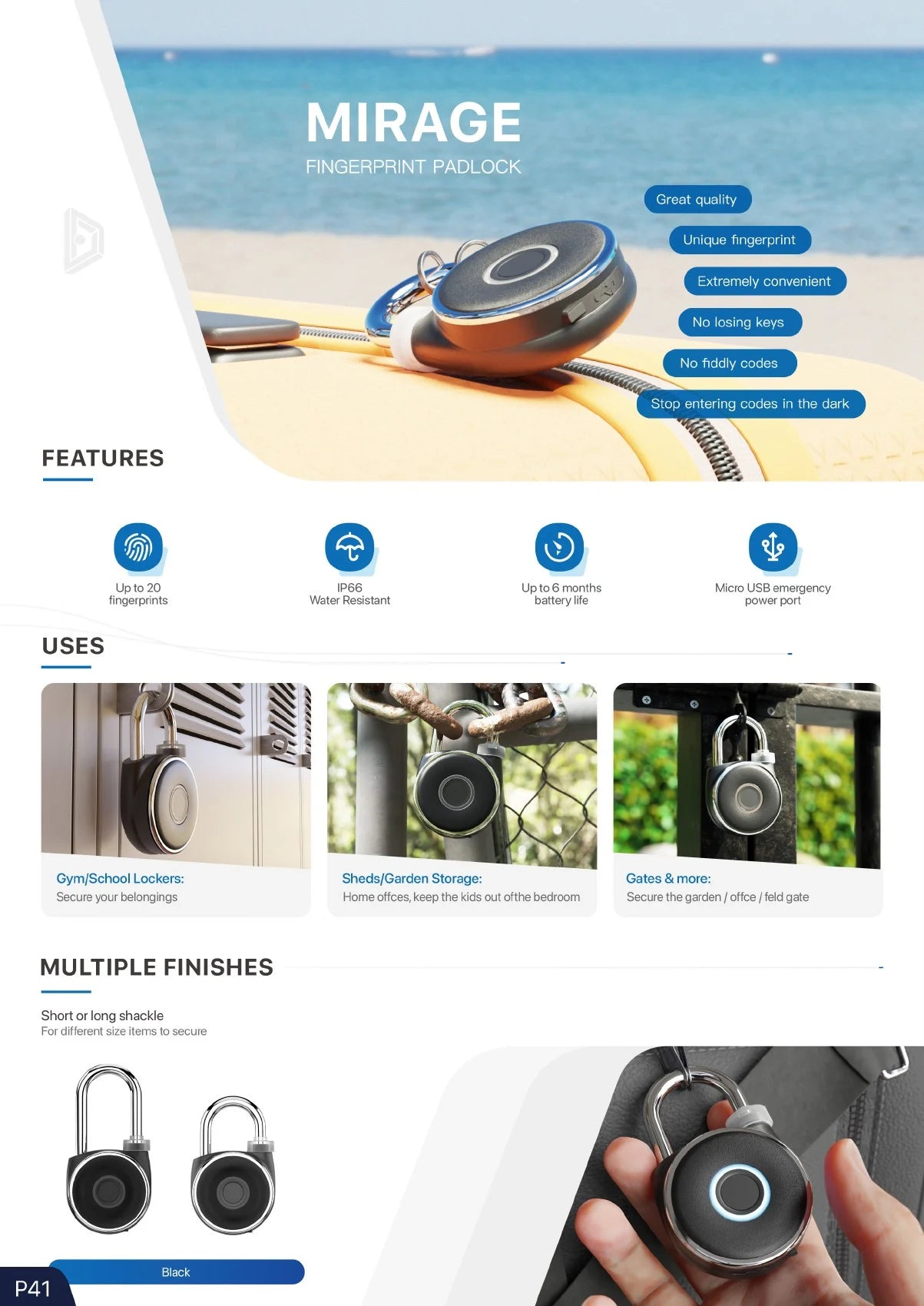

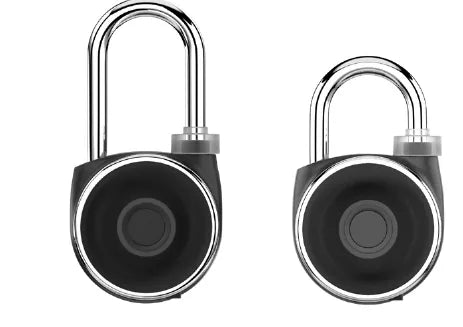

Mirage
Leave the small padlock key behind. Mirage brings fingerprint access to lockers, storage, sheds and gates.
Fingerprint Rechargeable Micro USB
Fingerprints Up to 20
Material Zinc alloy
Catalogue rating IP66
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Fingerprints Up to 20
Material Zinc alloy
Catalogue rating IP66
Power 3.7 V / 400 mAh rechargeable battery
Catalogue finish Black
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P41 P42

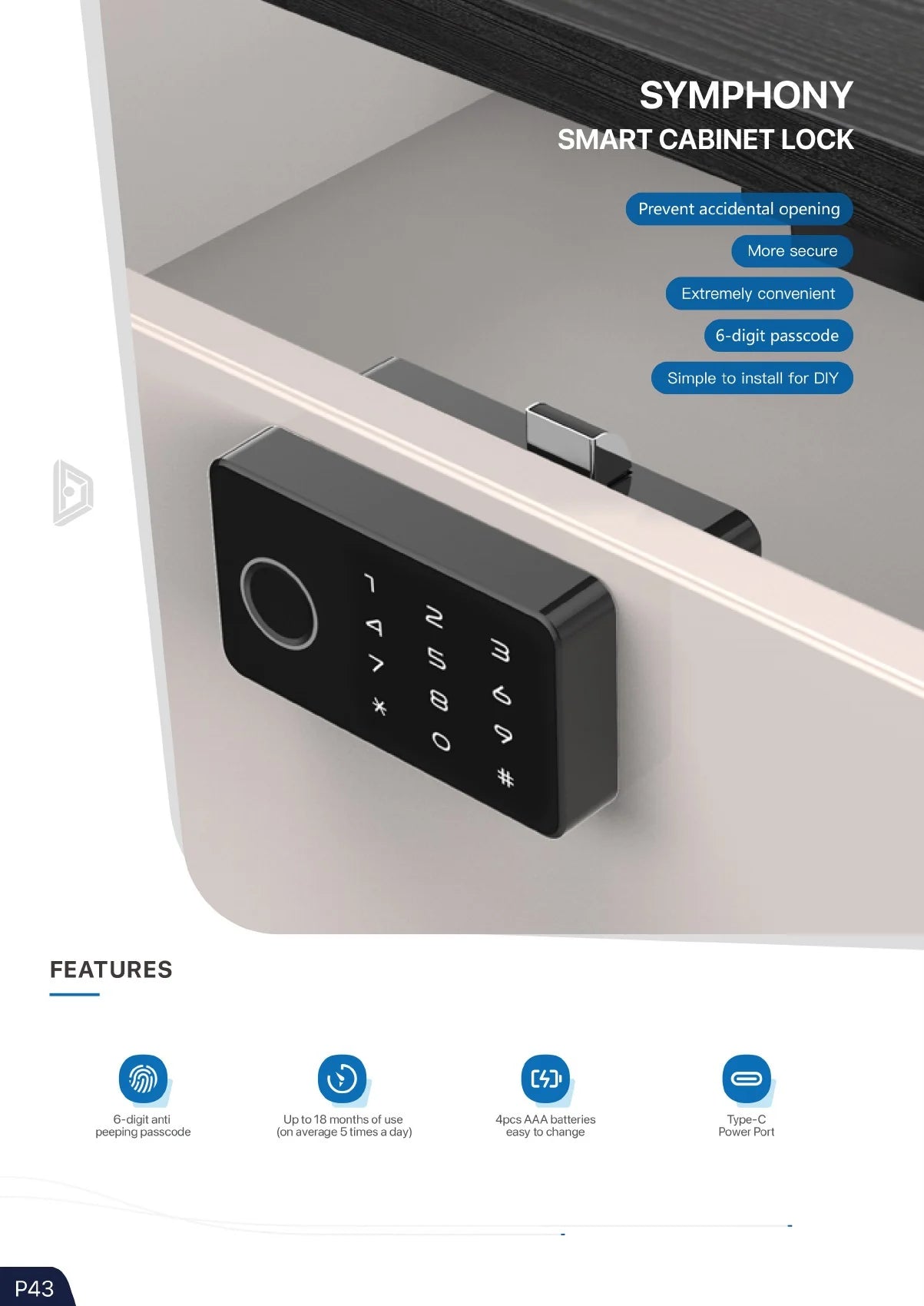

16 / 30Accessories
Catalogue P43–44
16
Smart cabinet lock

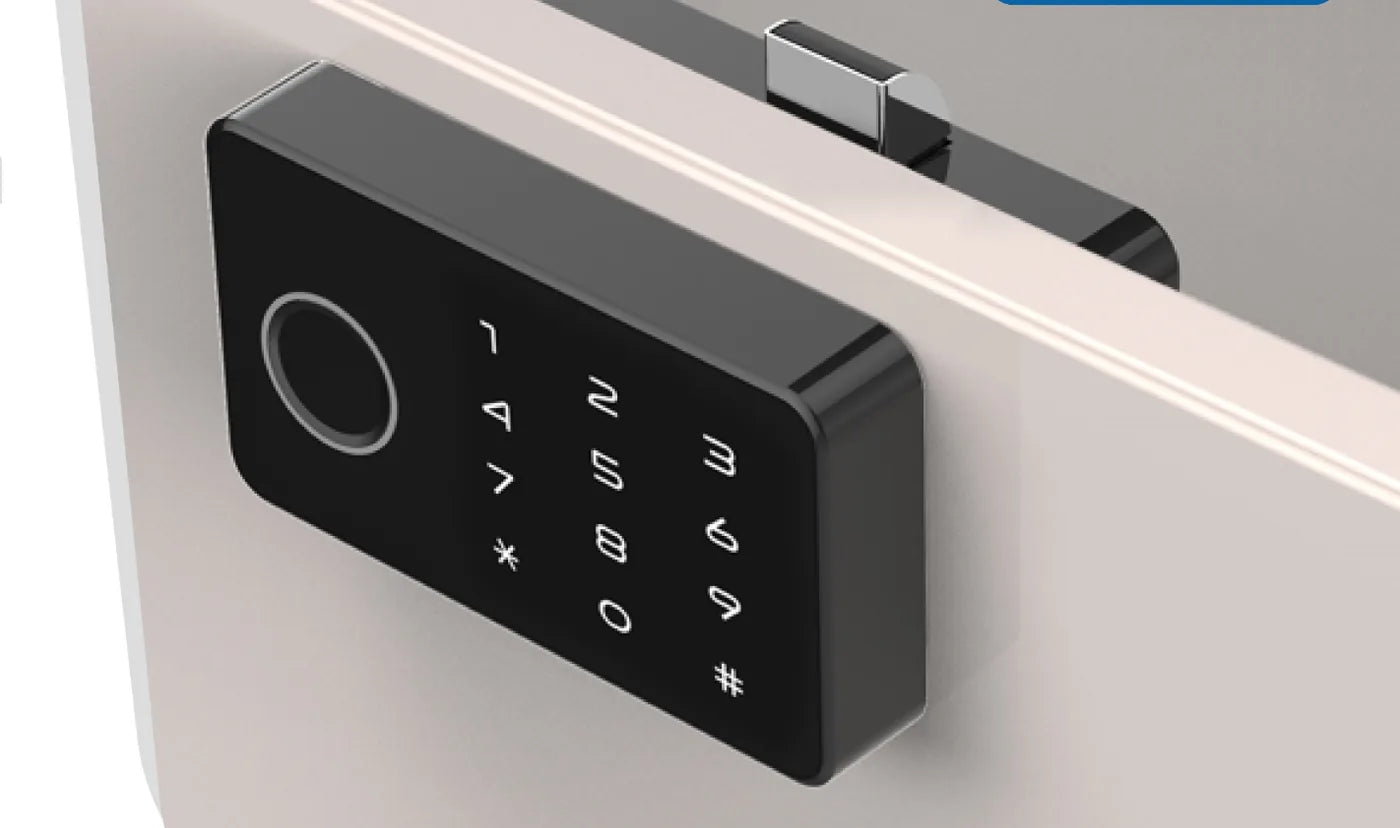

Symphony
Discreet keyless access for drawers and cabinets, with fingerprint, passcode and card options in the catalogue specification.
Fingerprint Passcode Key card Bluetooth
App Blusafe Smart
Fingerprints Up to 100
Passcodes Up to 100
Full specifications & original catalogue pages 5 specs · 2 pages

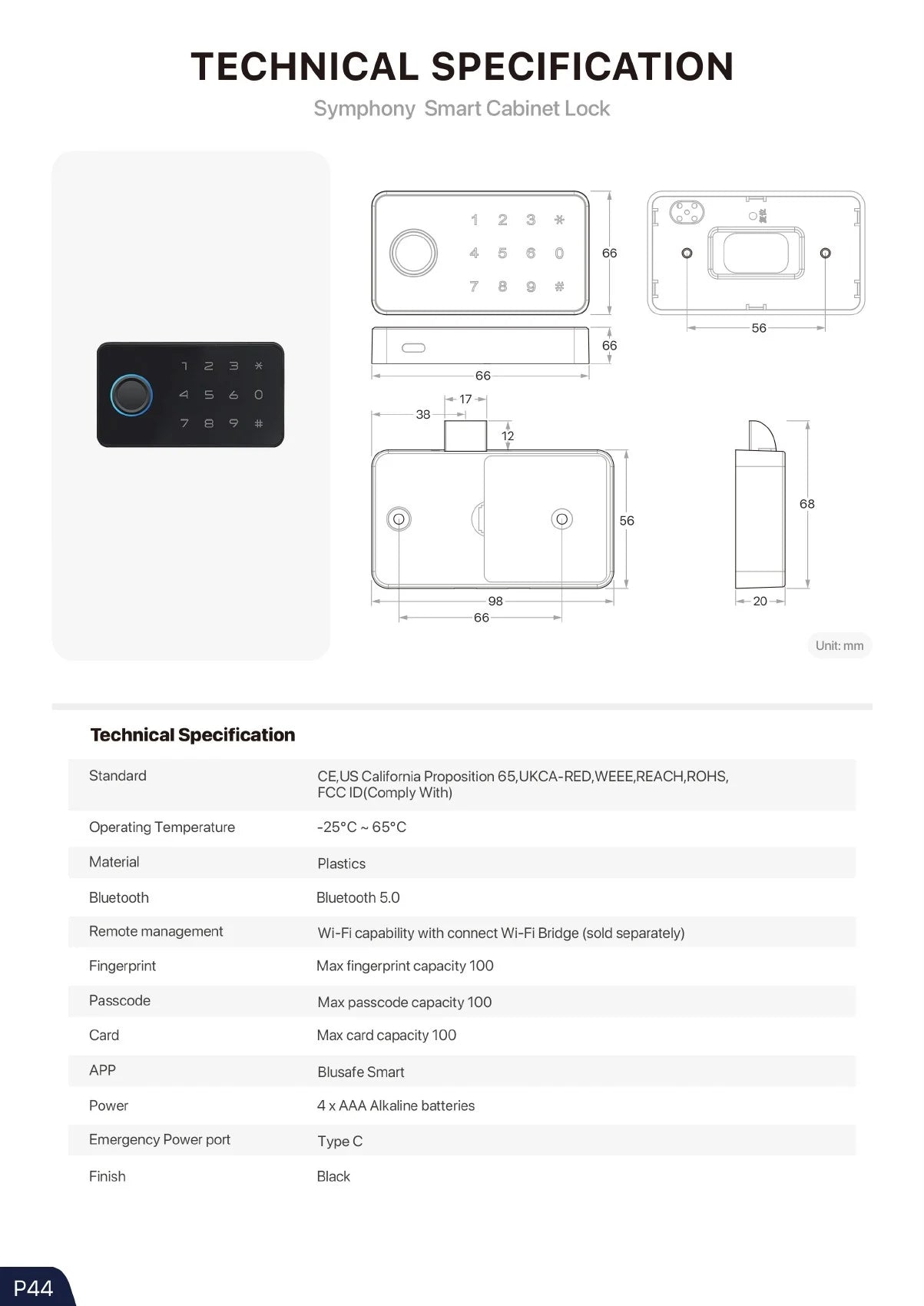

Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App Blusafe Smart
Fingerprints Up to 100
Passcodes Up to 100
Cards Up to 100
Power 4 × AAA batteries
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P43 P44
17 / 30Accessories
Catalogue P45–46
17

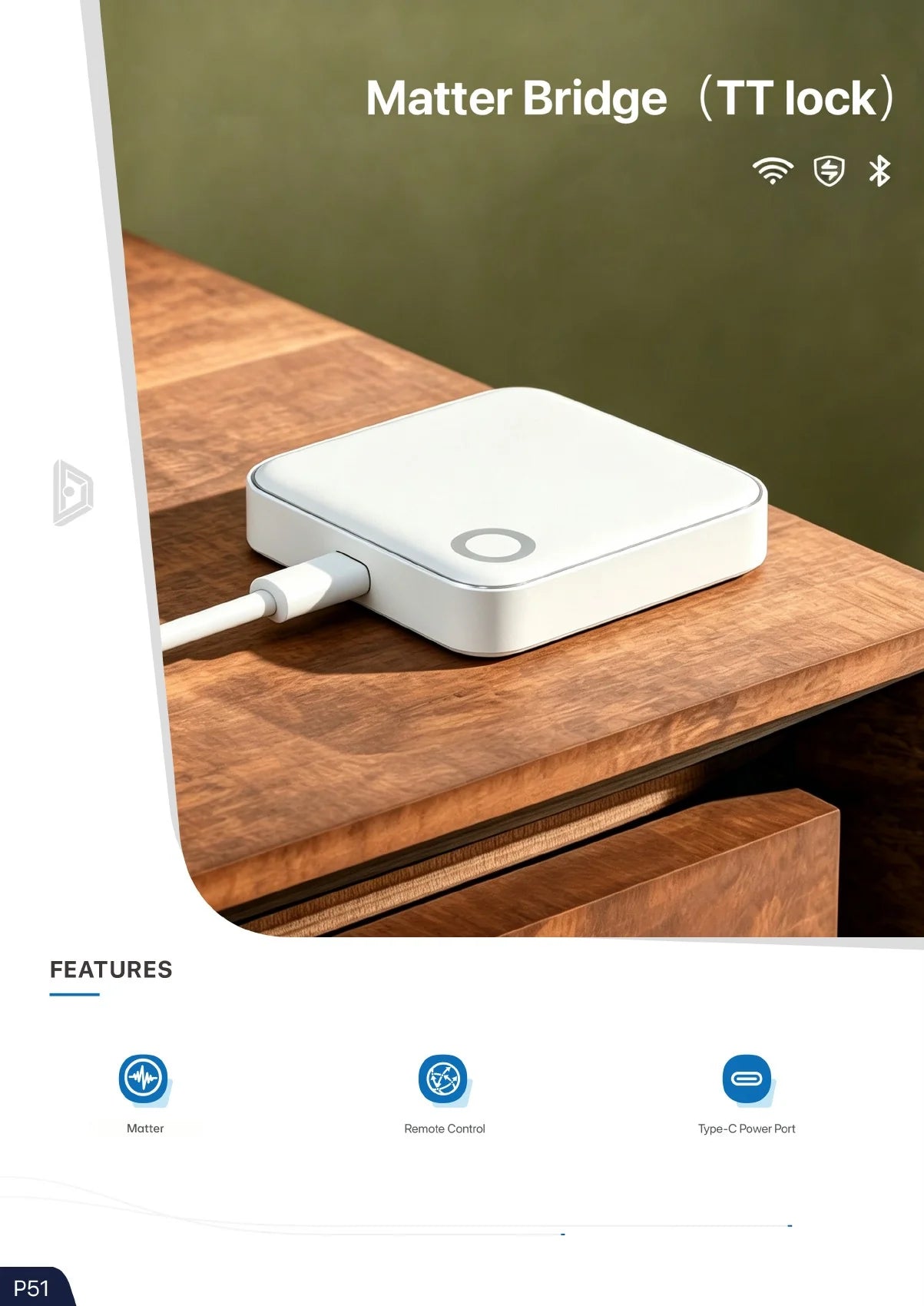

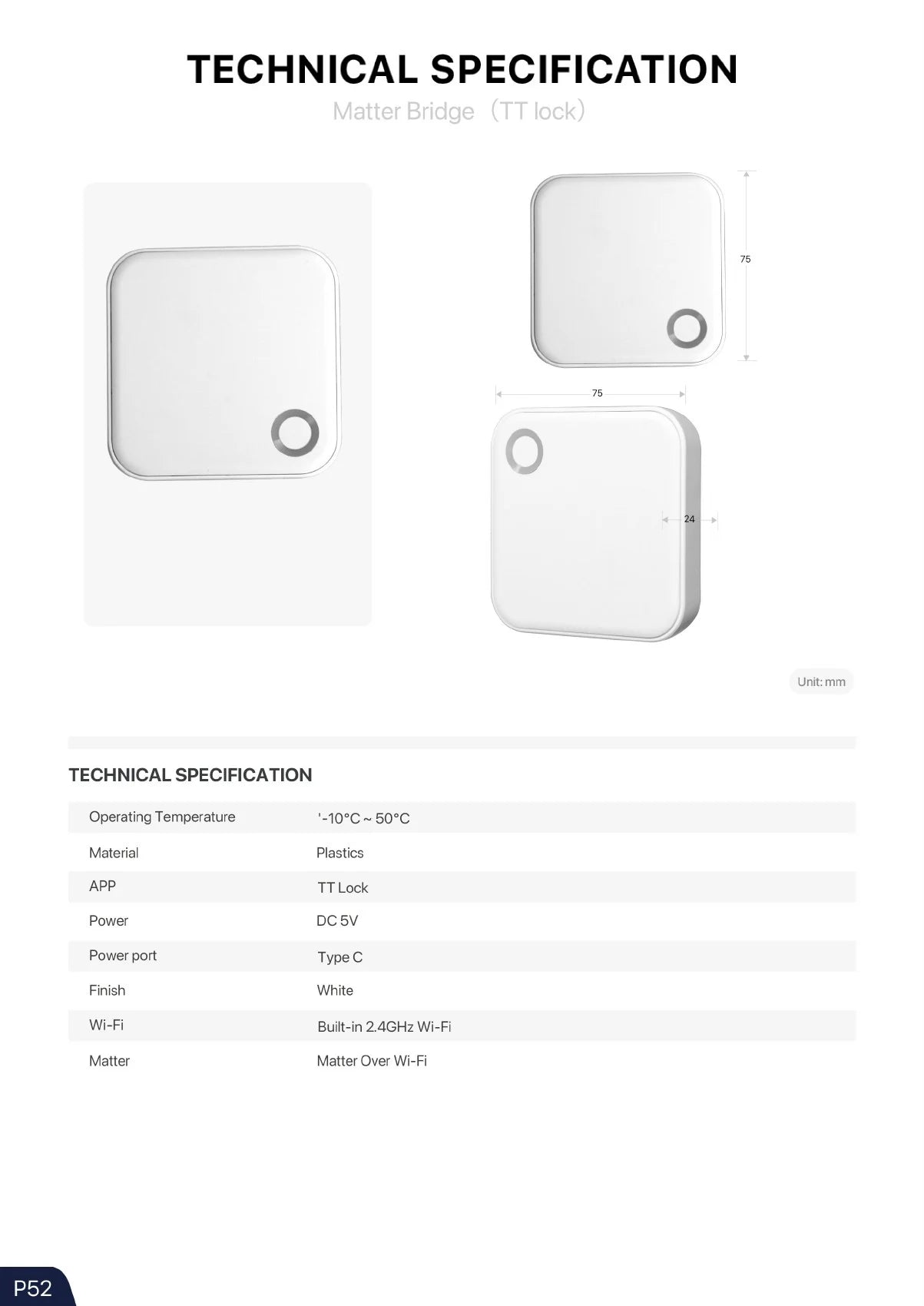

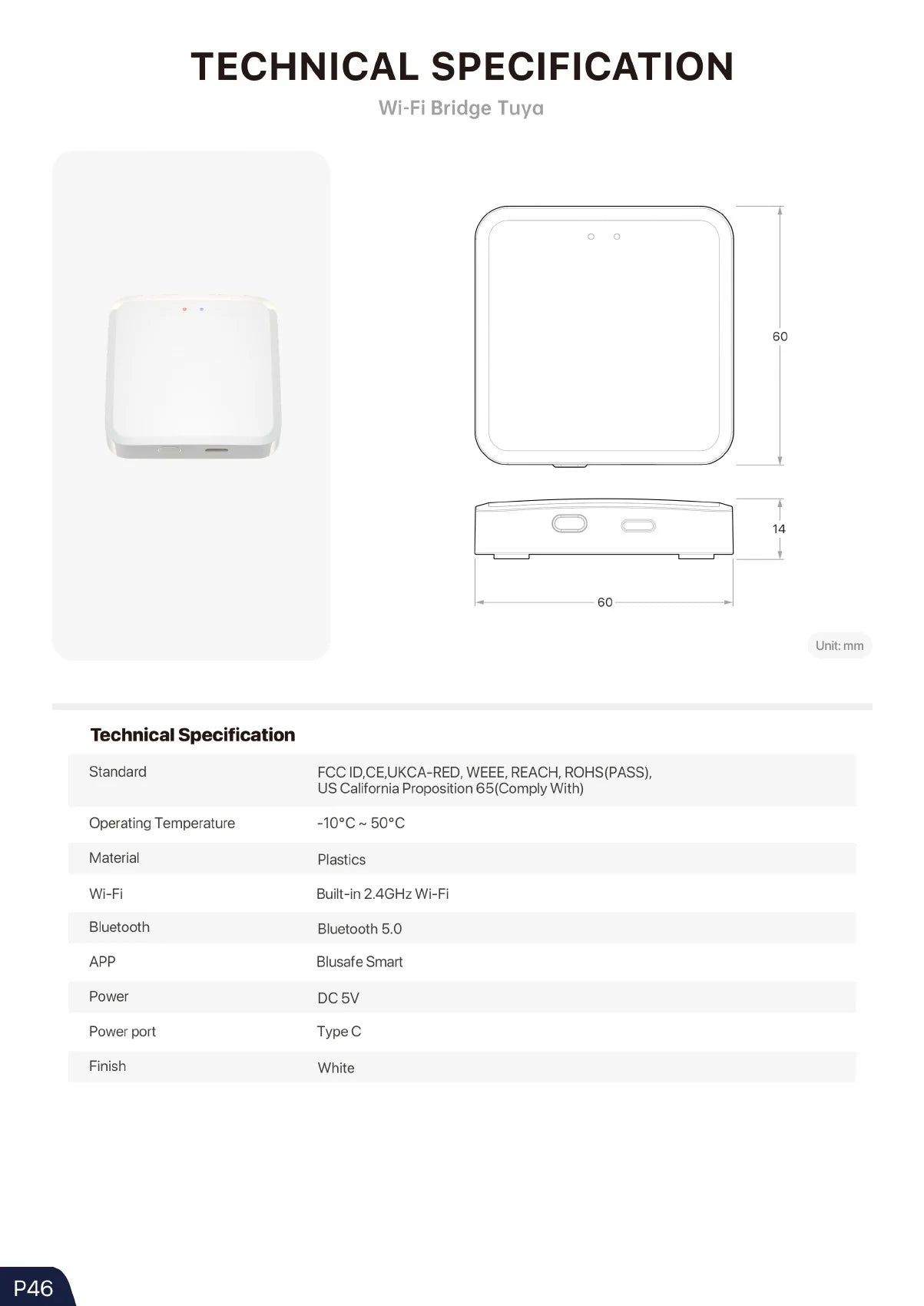

Remote access gateway

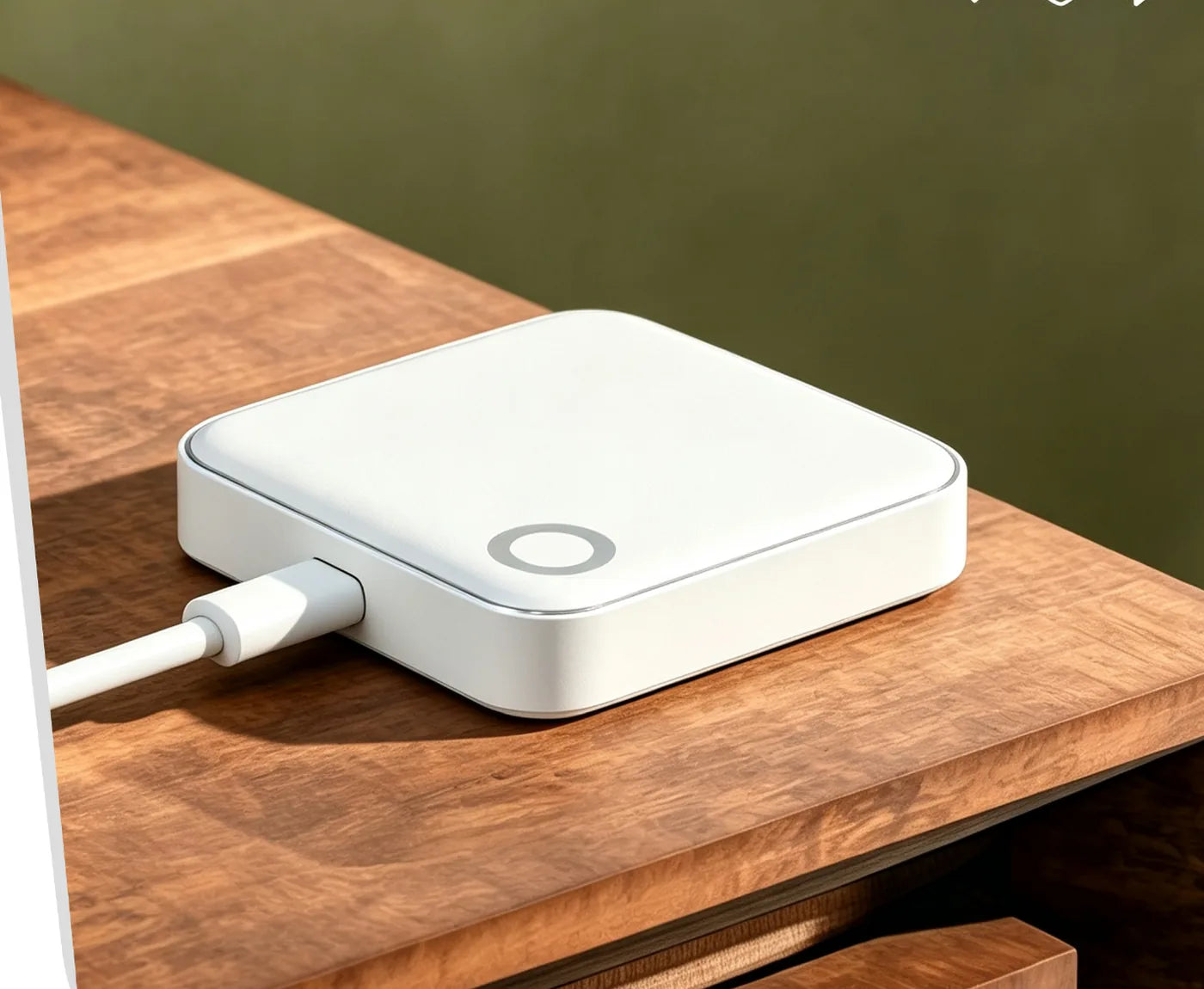

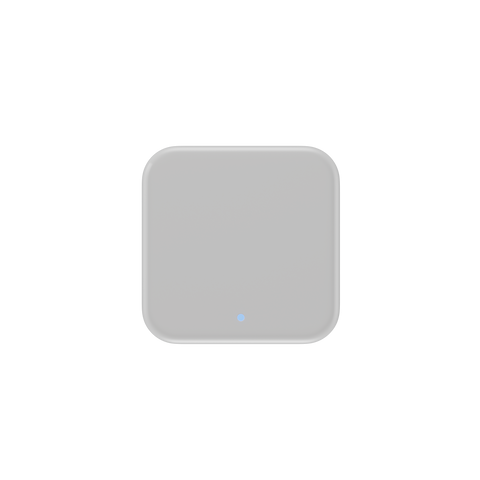

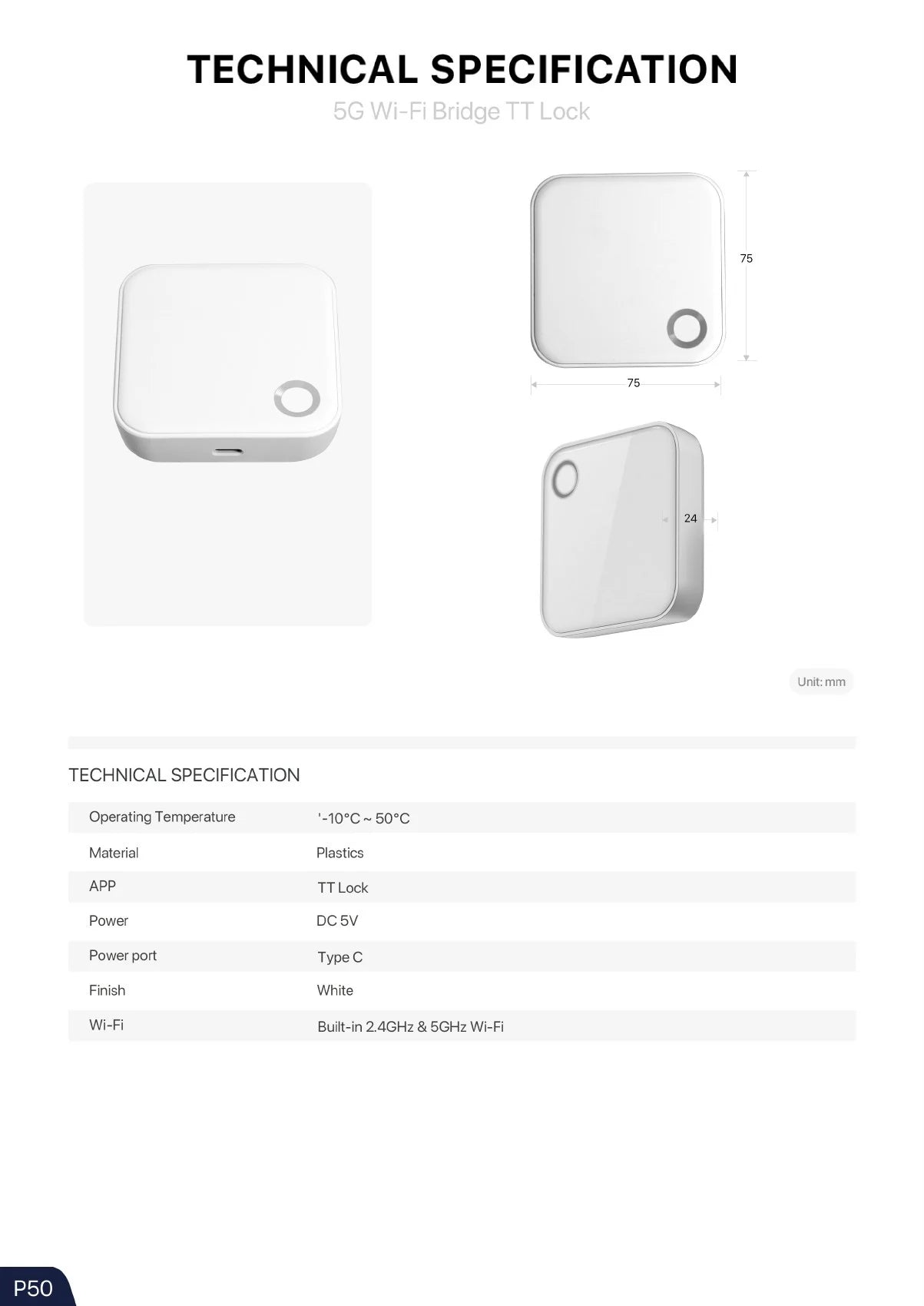

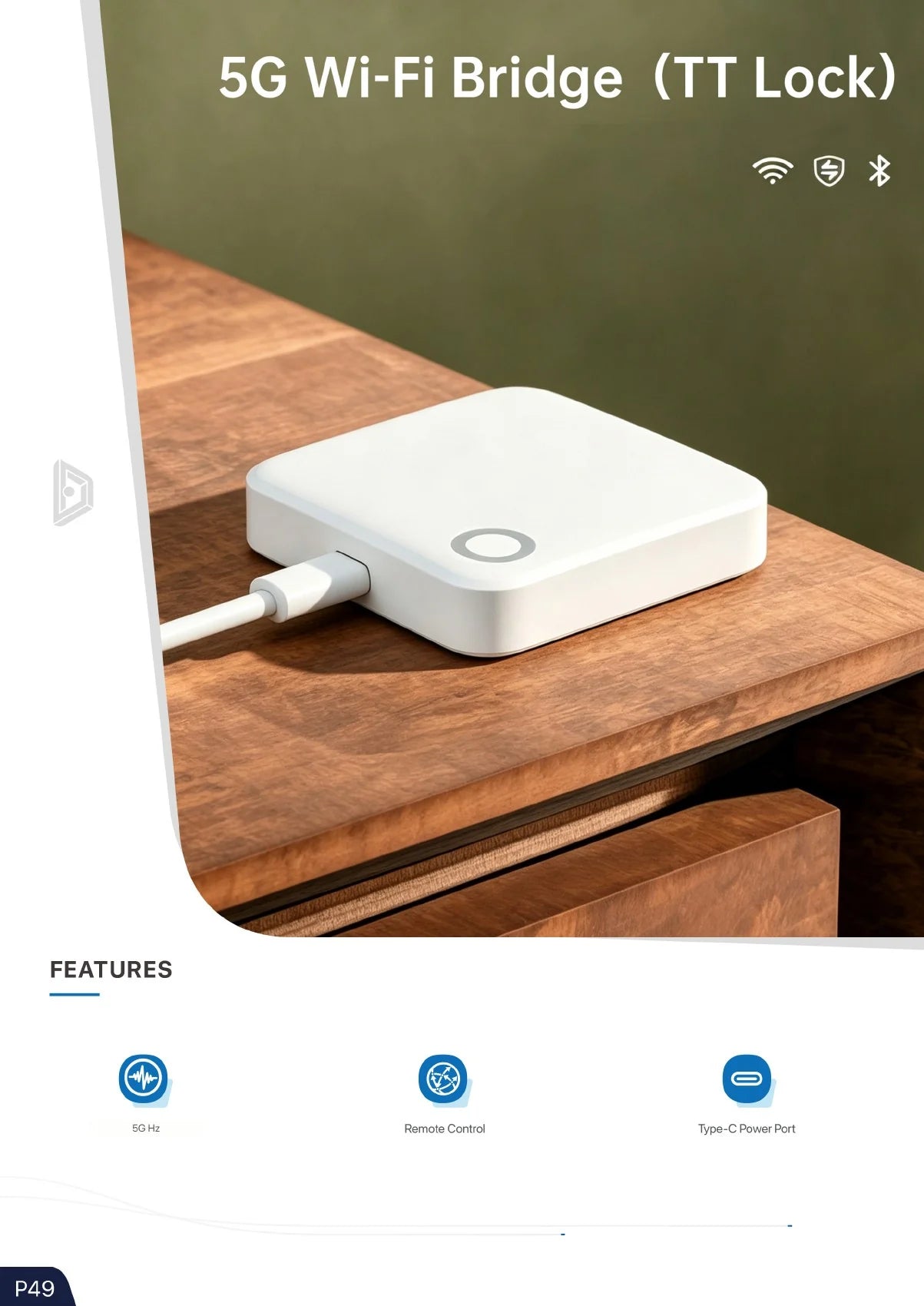

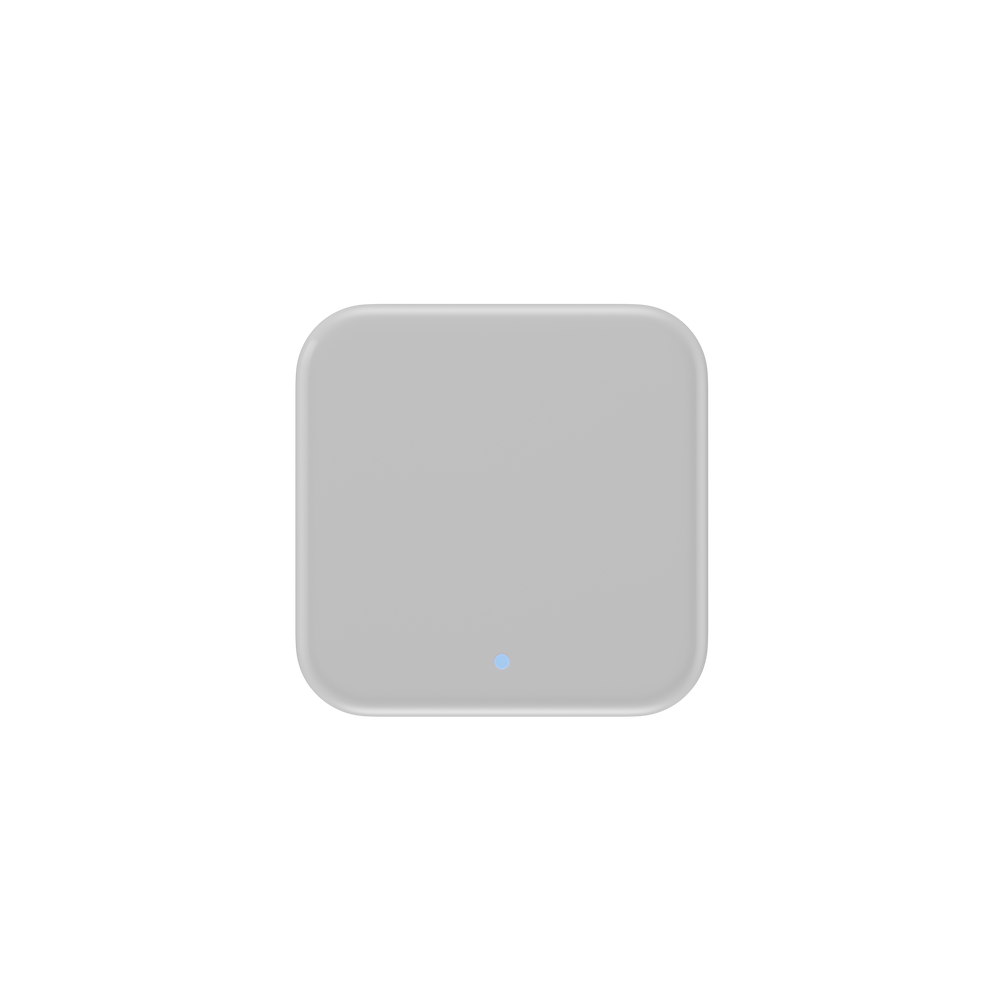

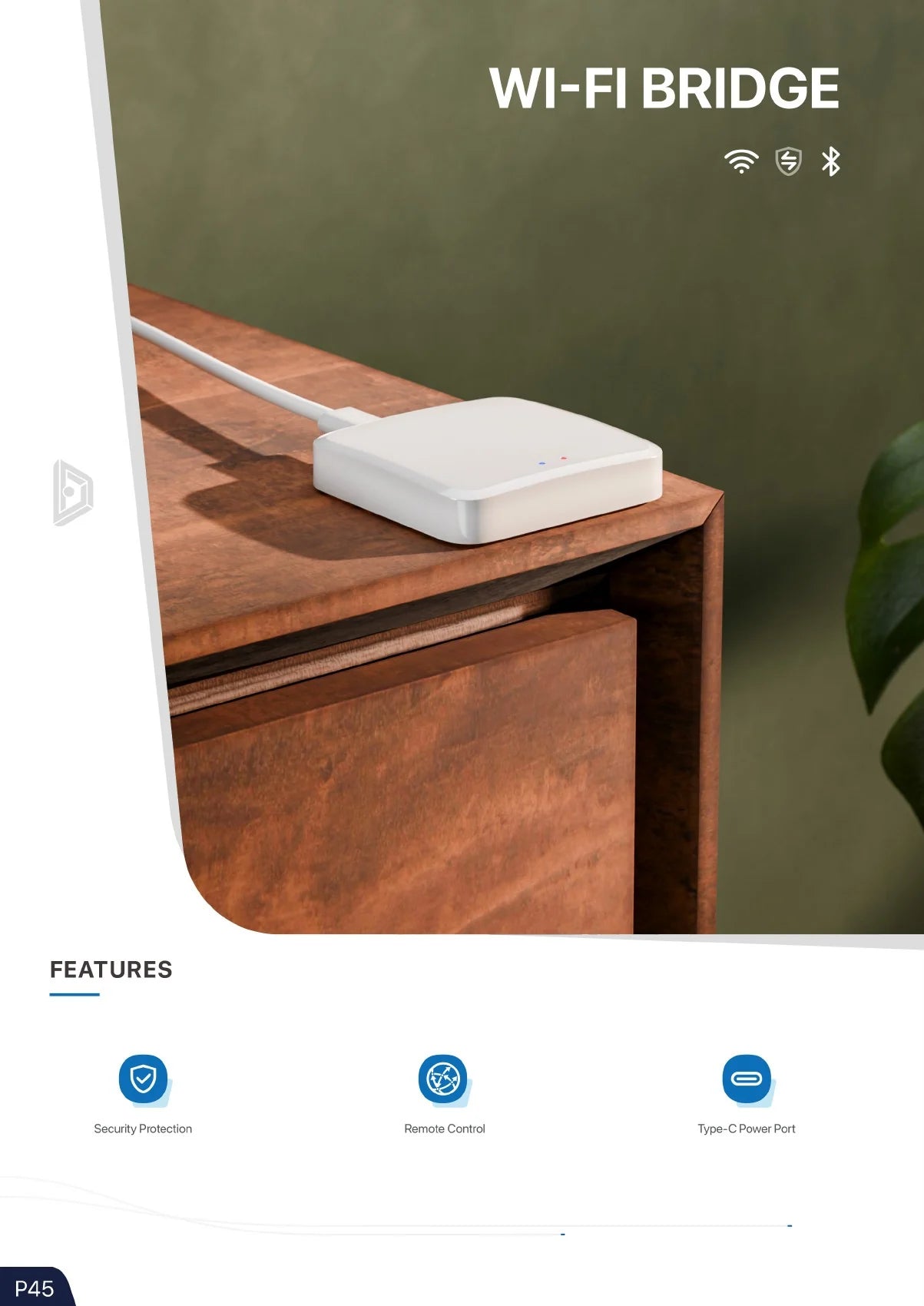

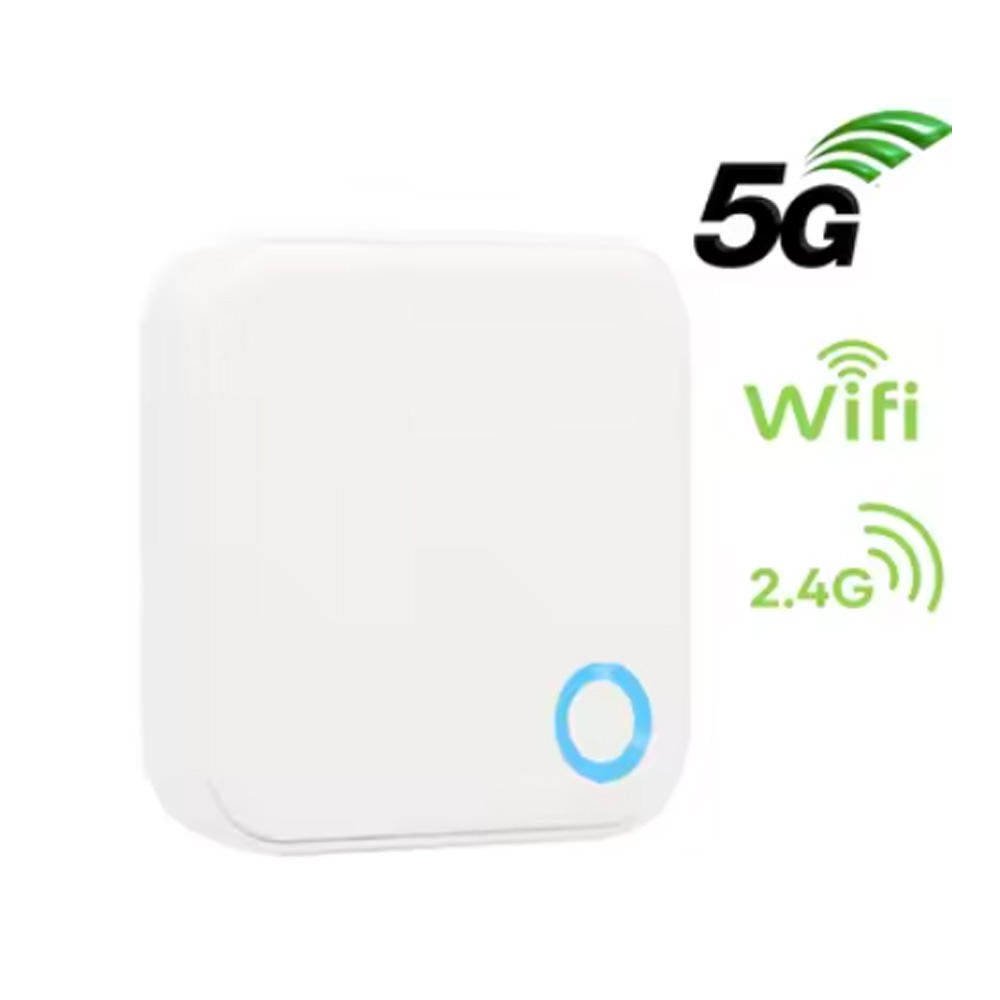

Wi-Fi Bridge
Connect compatible Bluetooth locks to remote app access. Choose the bridge that matches your lock’s platform: Tuya / Blusafe Smart or TTLock.
Wi-Fi Bluetooth Remote access USB-C
Brochure model Tuya / Blusafe Smart
Wi-Fi 2.4 GHz
Bluetooth 5.0
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Brochure model Tuya / Blusafe Smart
Wi-Fi 2.4 GHz
Bluetooth 5.0
Power DC 5 V
Power port USB-C
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P45 P46
18 / 30Accessories
Catalogue P47–48
18

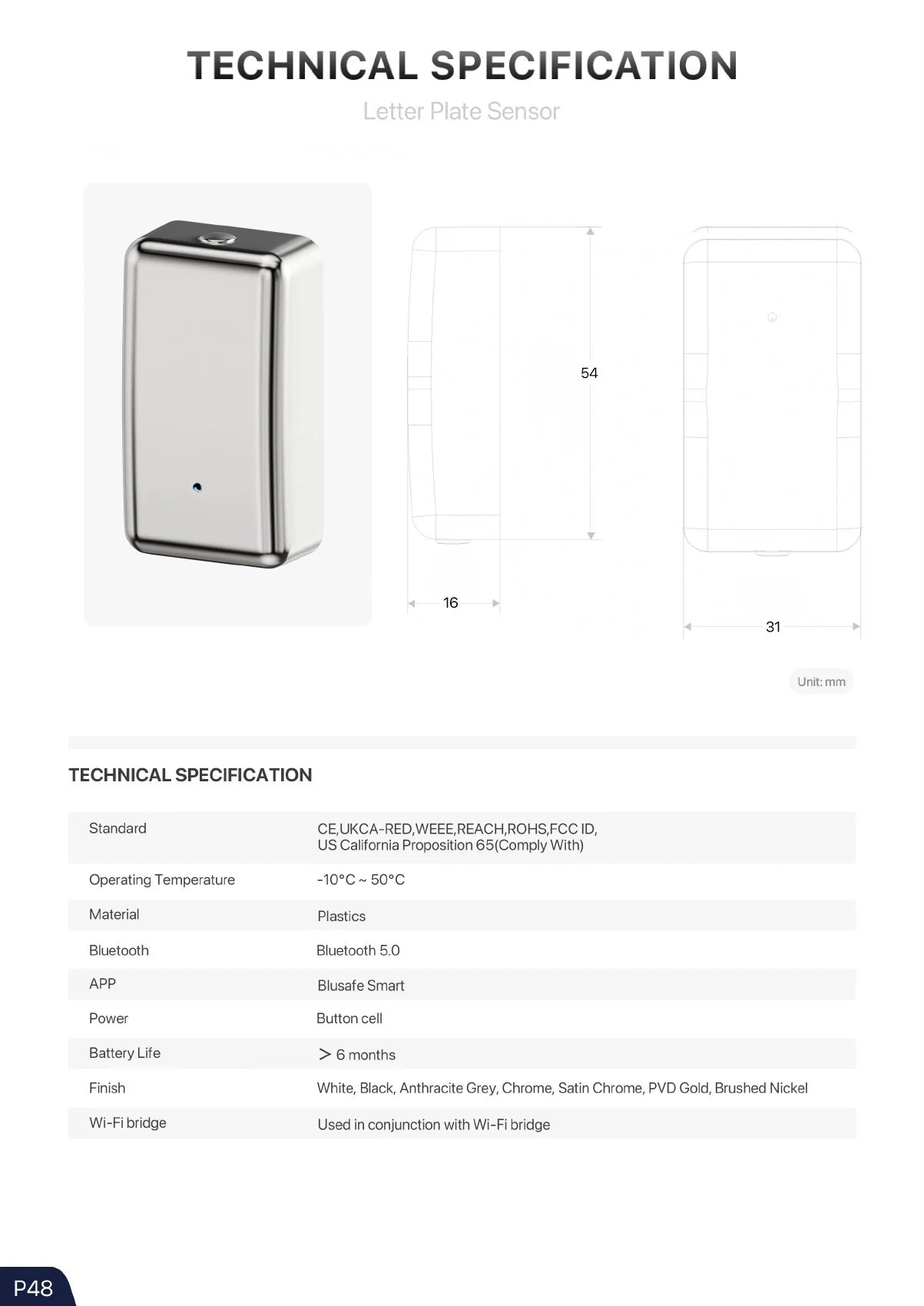

Letter plate monitoring

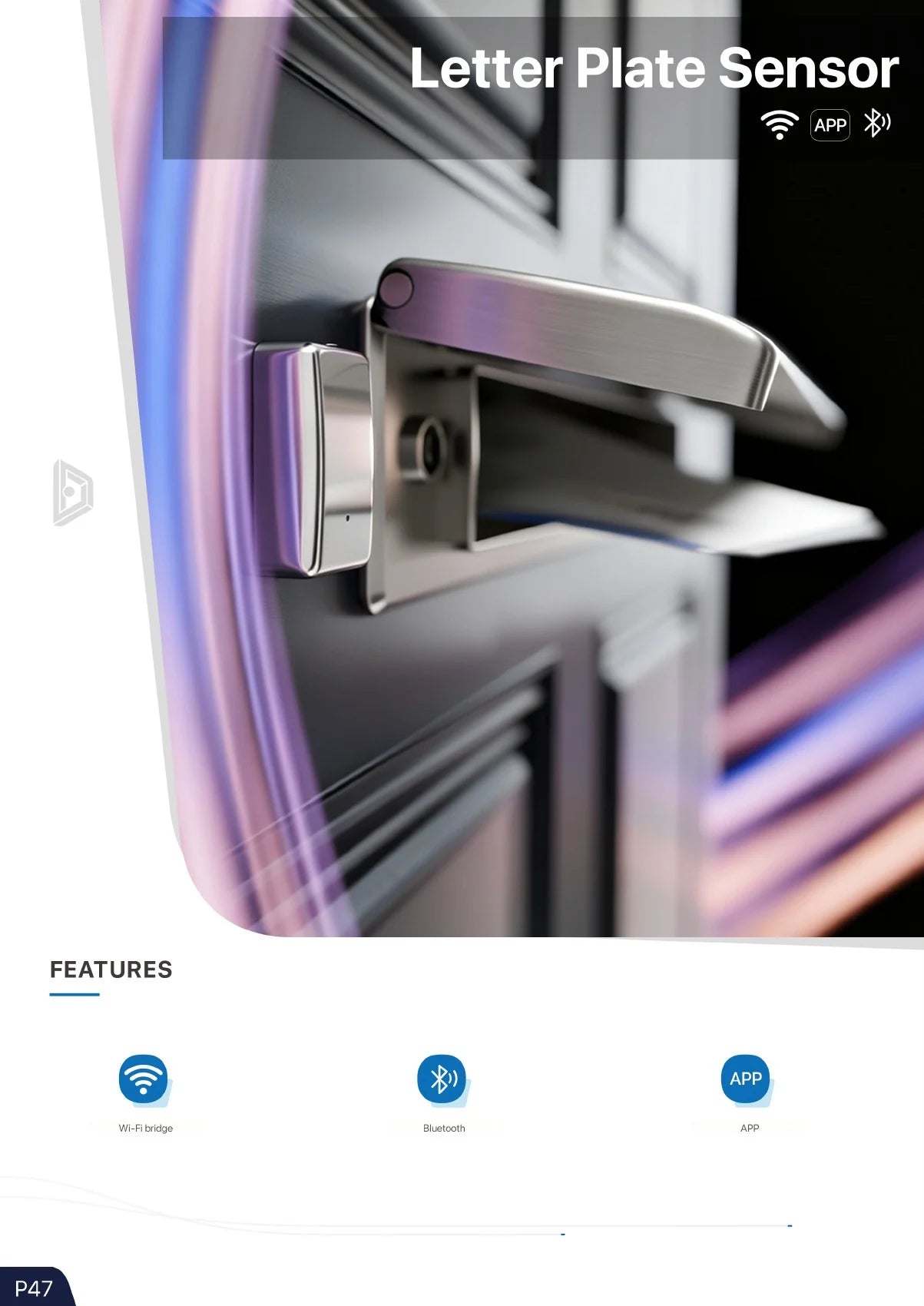

Letter Plate Sensor
A compact sensor for a compatible letter plate setup, connecting through Bluetooth and a Wi-Fi bridge.
Bluetooth App control Wi-Fi bridge required
App Blusafe Smart
Bluetooth 5.0
Power Button cell
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App Blusafe Smart
Bluetooth 5.0
Power Button cell
Dimensions 54 × 31 × 16 mm
Connection Used with a Wi-Fi bridge
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P47 P48
19 / 30Accessories
Catalogue P49–50
19
Dual-band remote access gateway
5G Wi-Fi Bridge · TTLock
The catalogue’s 5G bridge is a dual-band Wi-Fi gateway for TTLock. Here, 5G means 5 GHz Wi-Fi, not a cellular connection.
2.4 GHz Wi-Fi 5 GHz Wi-Fi Remote access USB-C
App TTLock
Wi-Fi 2.4 GHz and 5 GHz
Power DC 5 V
The U.S. listing shows current versions, finishes, specifications and availability.
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App TTLock
Wi-Fi 2.4 GHz and 5 GHz
Power DC 5 V
Power port USB-C
Catalogue finish White
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P49 P50
20 / 30Accessories
Catalogue P51–52
20
Matter connectivity
Matter Bridge · TTLock
A gateway for compatible TTLock setups with Matter over Wi-Fi, extending the connected-home possibilities of the catalogue range.
Matter over Wi-Fi Remote access USB-C
App TTLock
Wi-Fi 2.4 GHz
Matter Matter over Wi-Fi
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App TTLock
Wi-Fi 2.4 GHz
Matter Matter over Wi-Fi
Power DC 5 V
Power port USB-C
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P51 P52
21 / 30Accessories
Catalogue P53–54
21
Access card management

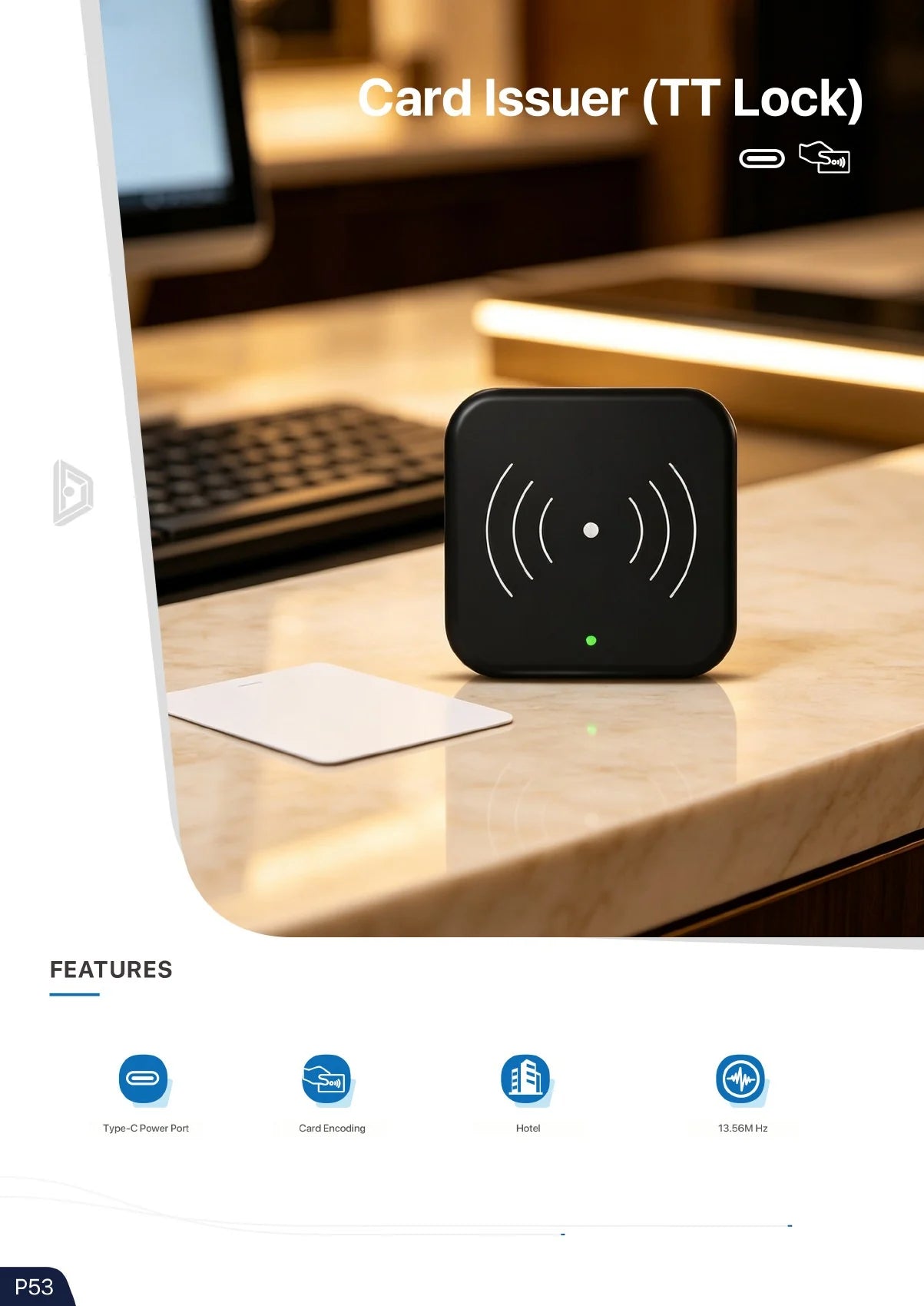

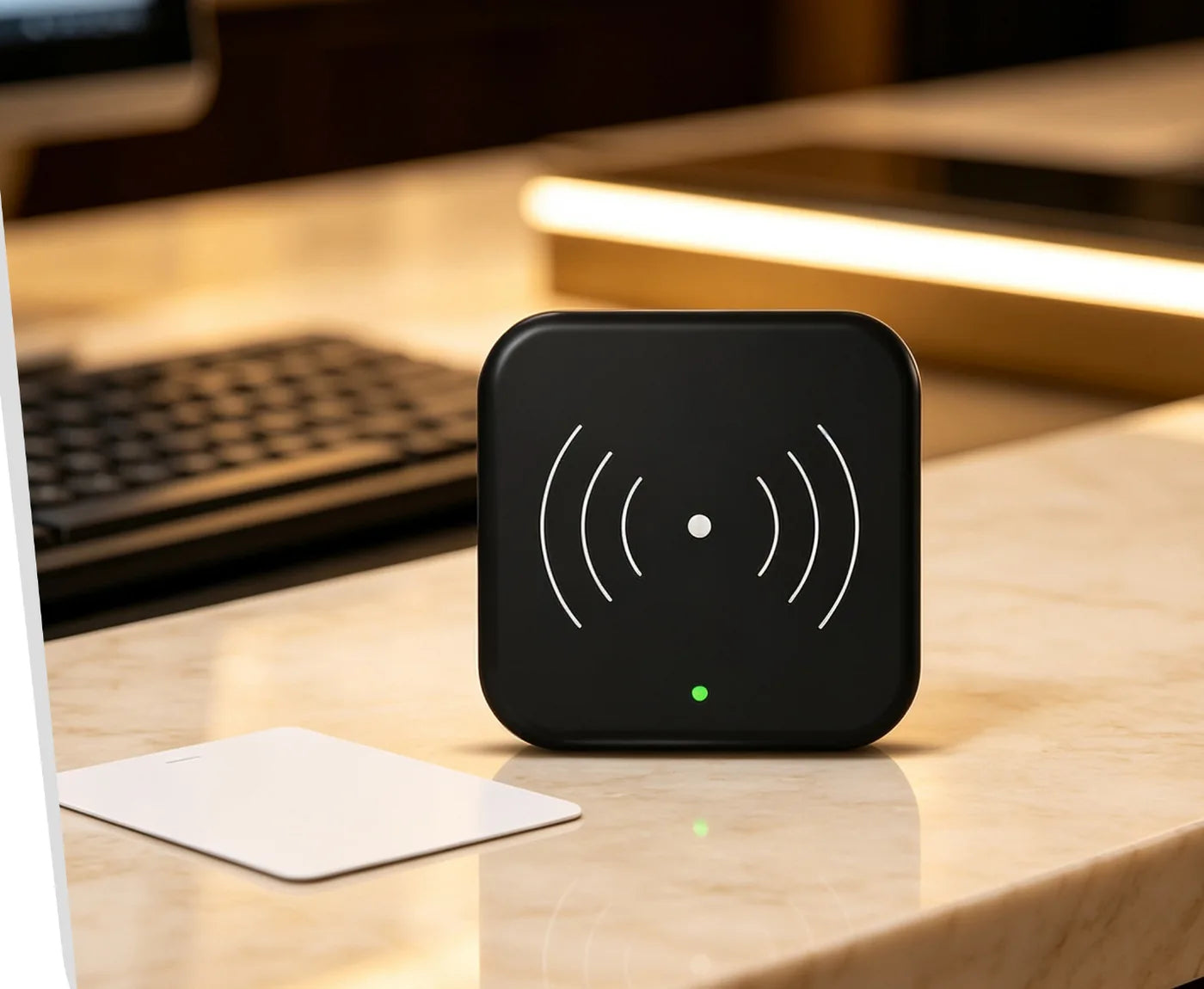

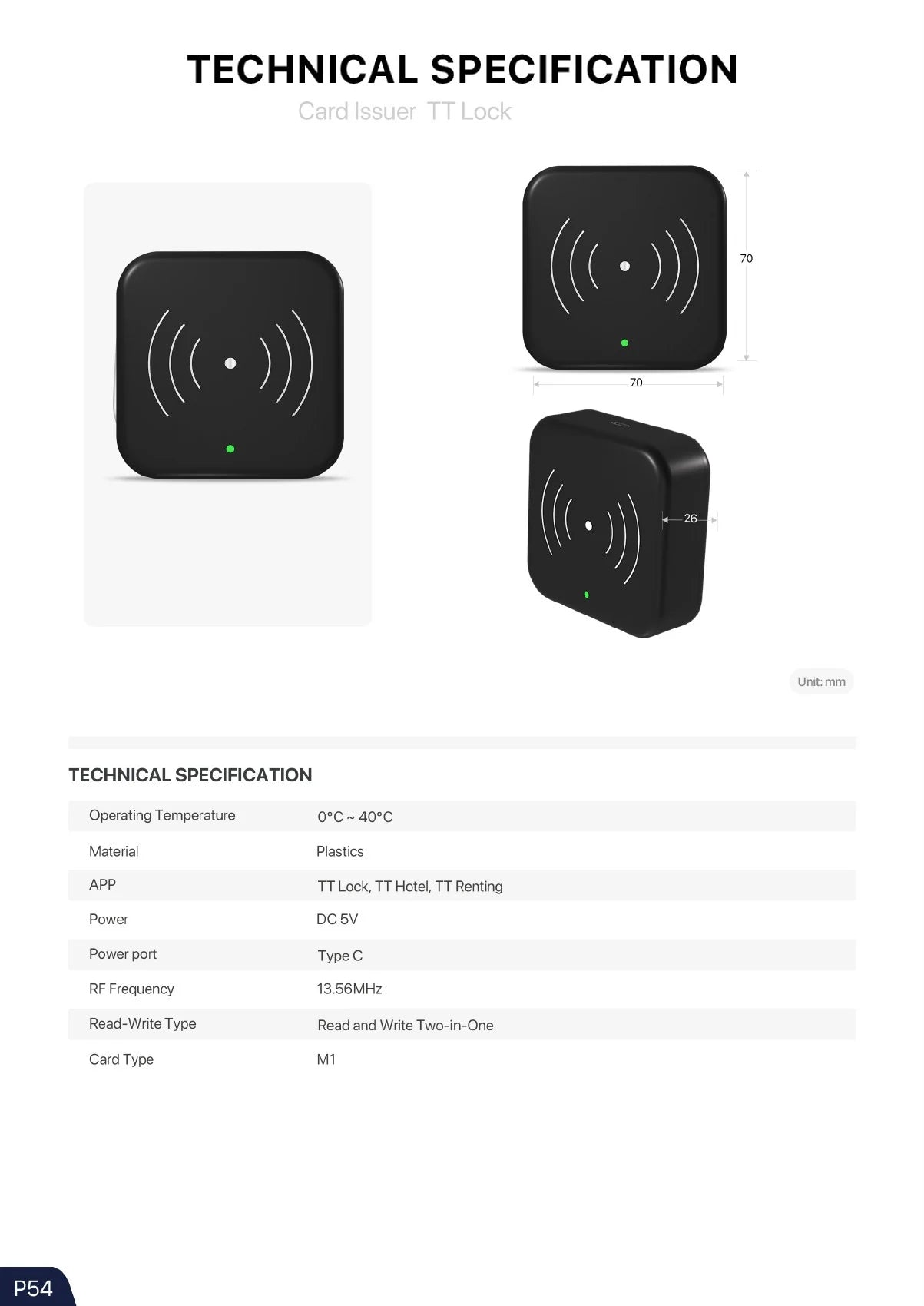

Card Issuer · TTLock
A desktop read-and-write device for issuing M1 access cards in compatible TTLock, TT Hotel and TT Renting systems.
Card reading Card writing USB-C
Platforms TTLock, TT Hotel, TT Renting
RF frequency 13.56 MHz
Card type M1
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Platforms TTLock, TT Hotel, TT Renting
RF frequency 13.56 MHz
Card type M1
Power DC 5 V
Power port USB-C
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P53 P54
22 / 30Accessories
Catalogue P55–56
22

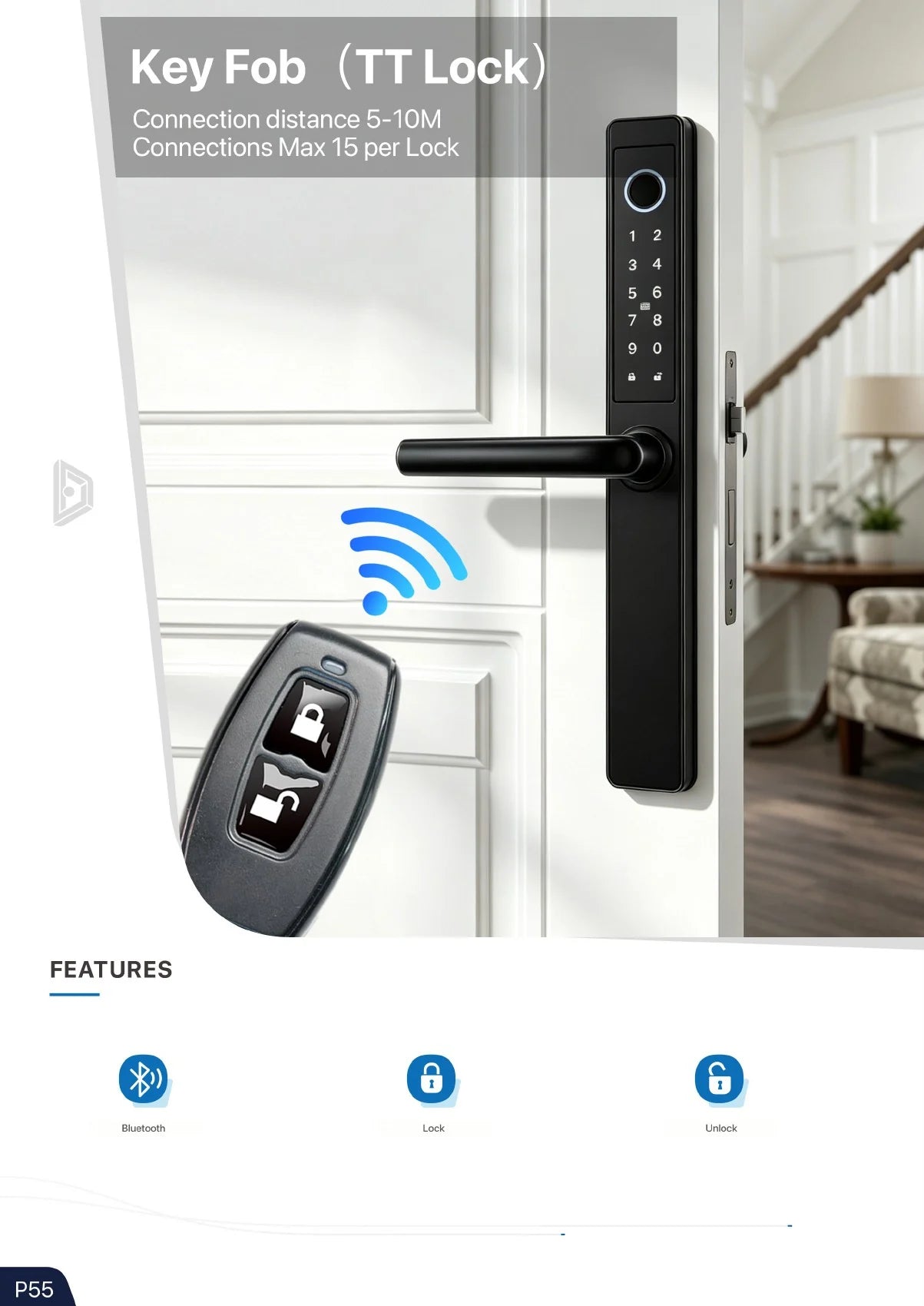

Wireless lock remote

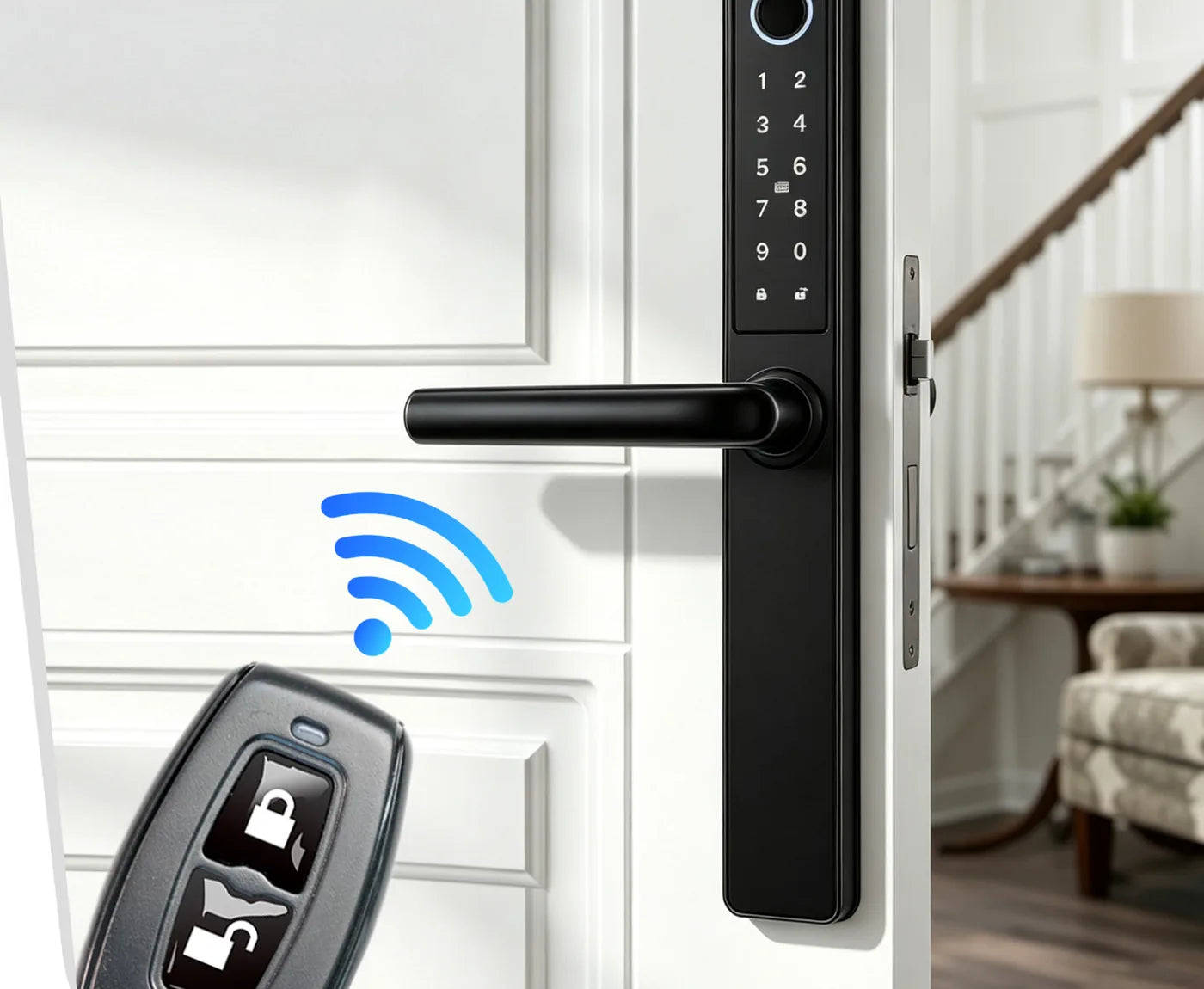

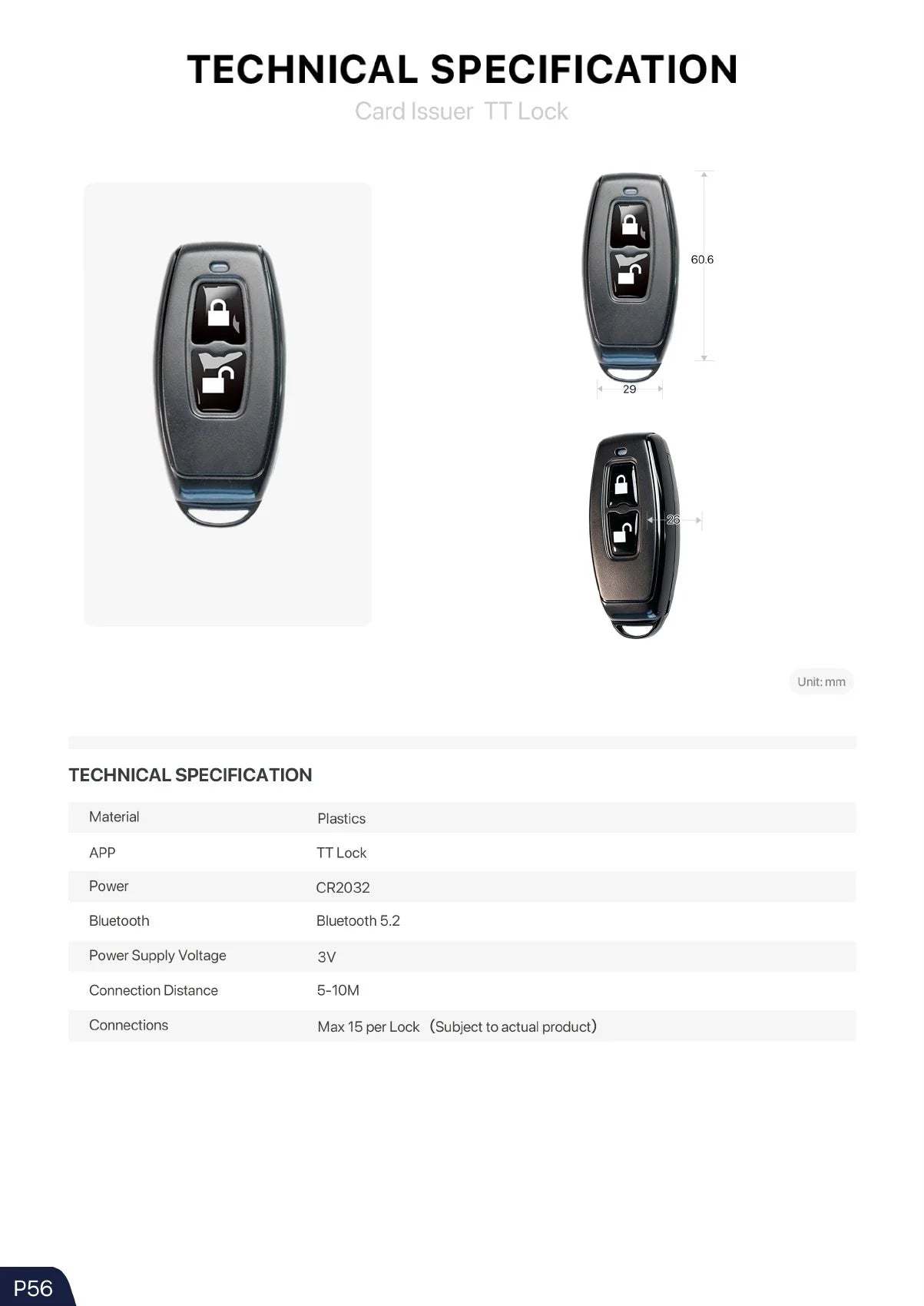

Key Fob · TTLock
Lock and unlock a compatible TTLock device with a small Bluetooth remote. This remote is distinct from an RFID key card.
App TTLock
Bluetooth 5.2
Power CR2032 / 3 V
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App TTLock
Bluetooth 5.2
Power CR2032 / 3 V
Catalogue range 5–10 m
Connections Up to 15 per lock, subject to model
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P55 P56
23 / 30Accessories
Catalogue P57–58
23

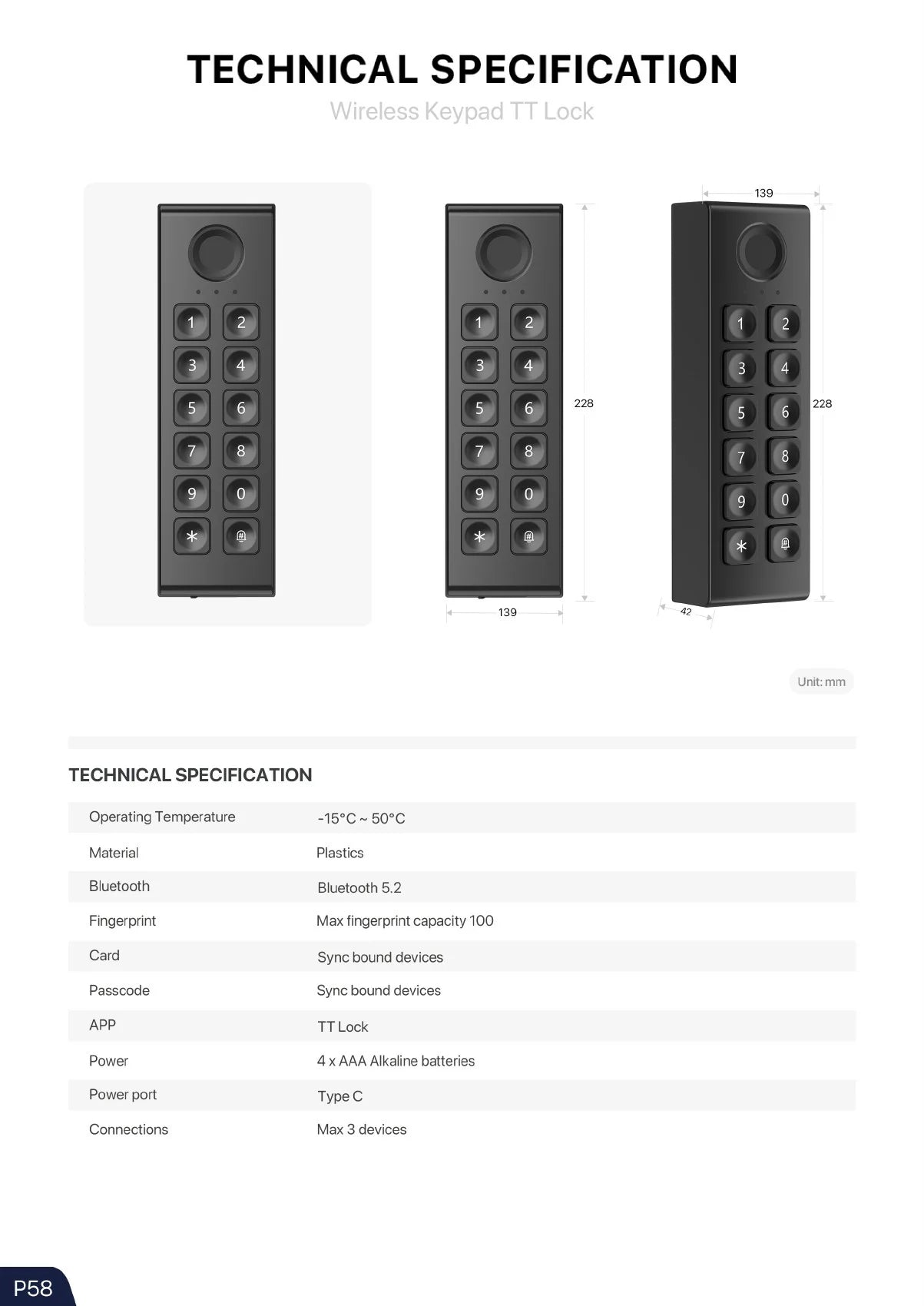

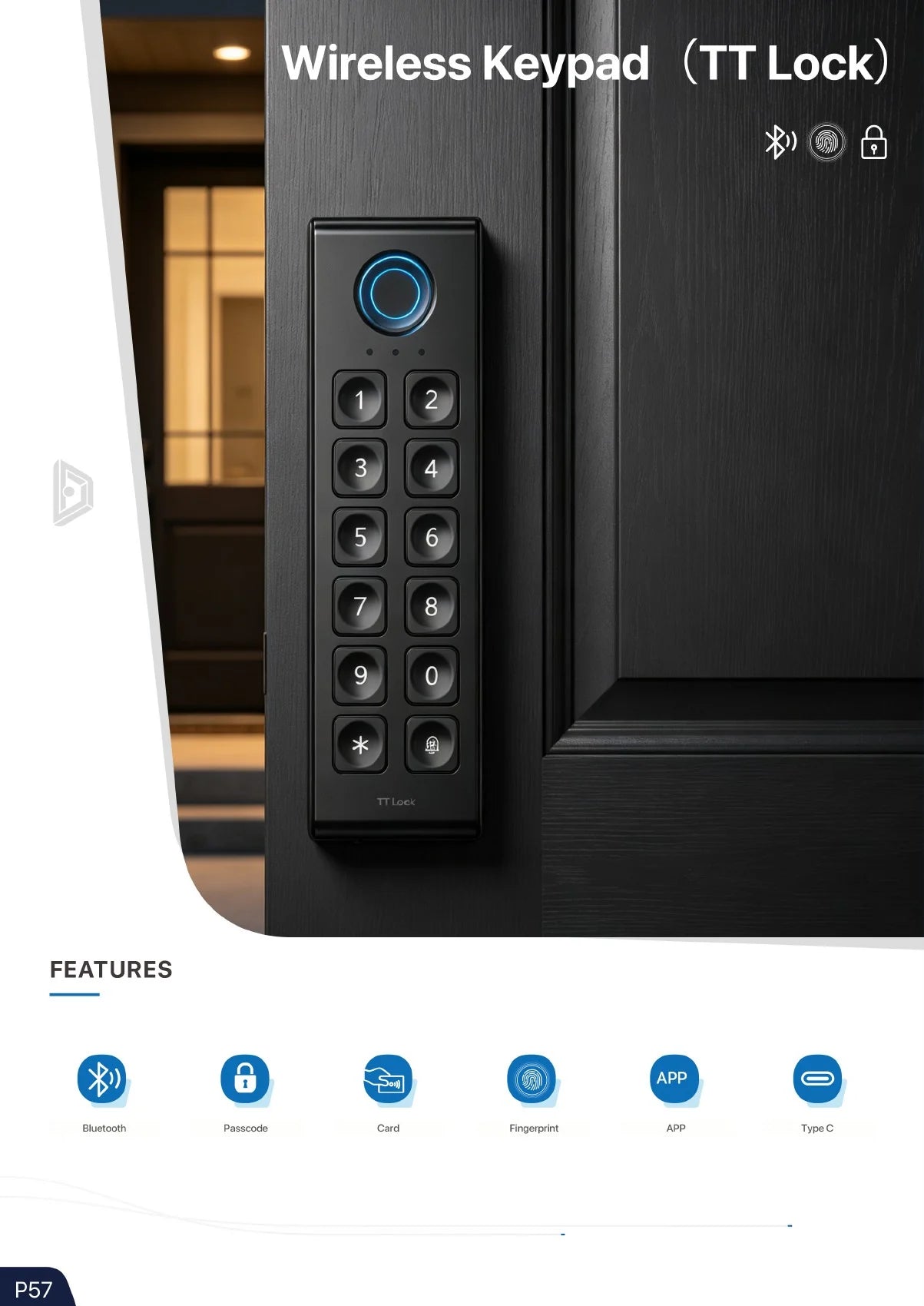

Wireless access keypad

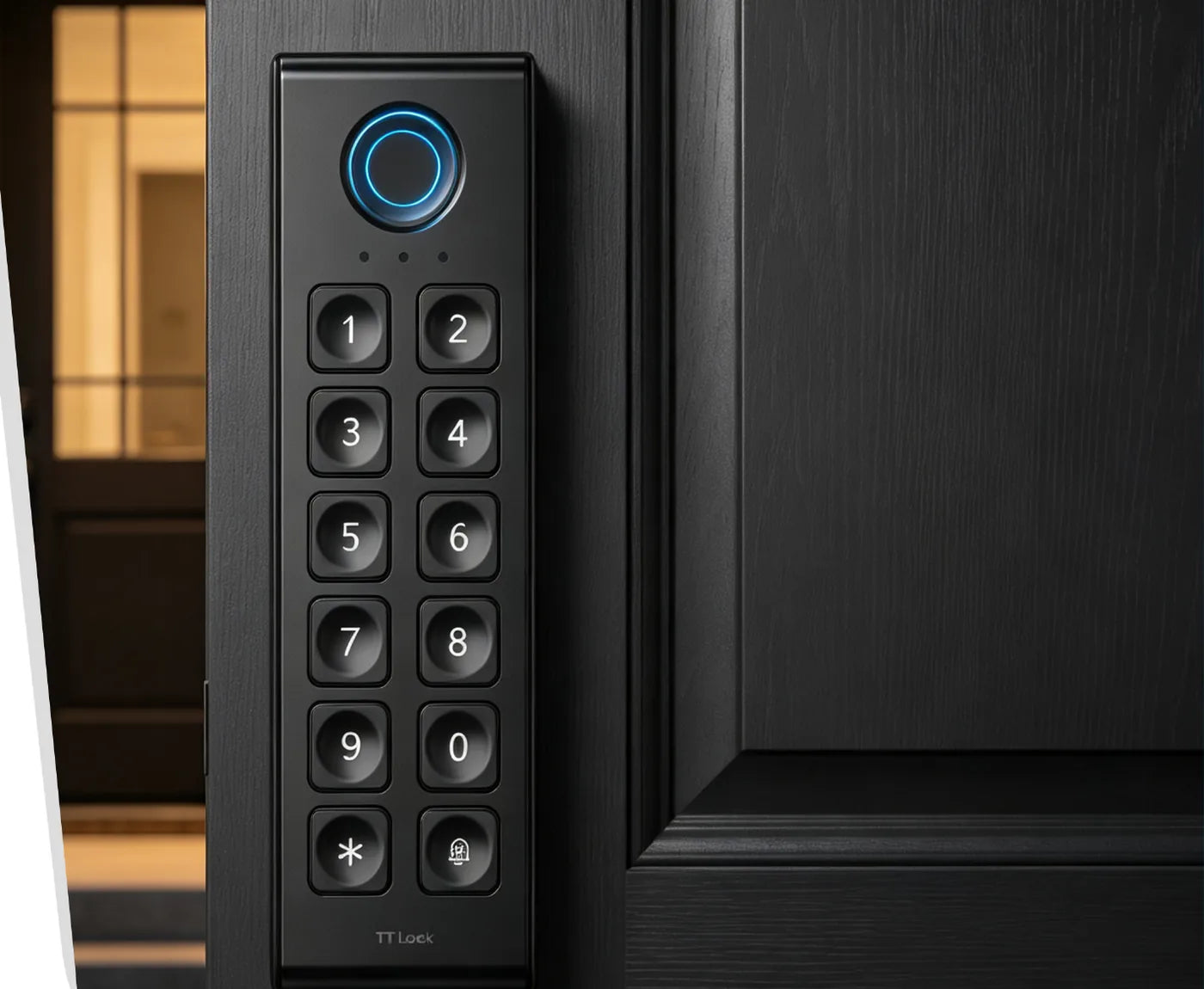

Wireless Keypad · TTLock
Add a separate access point to compatible TTLock devices, with fingerprint, passcode and card functions.
Fingerprint Passcode Key card Bluetooth
App TTLock
Bluetooth 5.2
Fingerprints Up to 100
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App TTLock
Bluetooth 5.2
Fingerprints Up to 100
Power 4 × AAA batteries
Connections Up to 3 devices
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P57 P58
24 / 30Project solutions
Catalogue P59–60
24
European cylinder

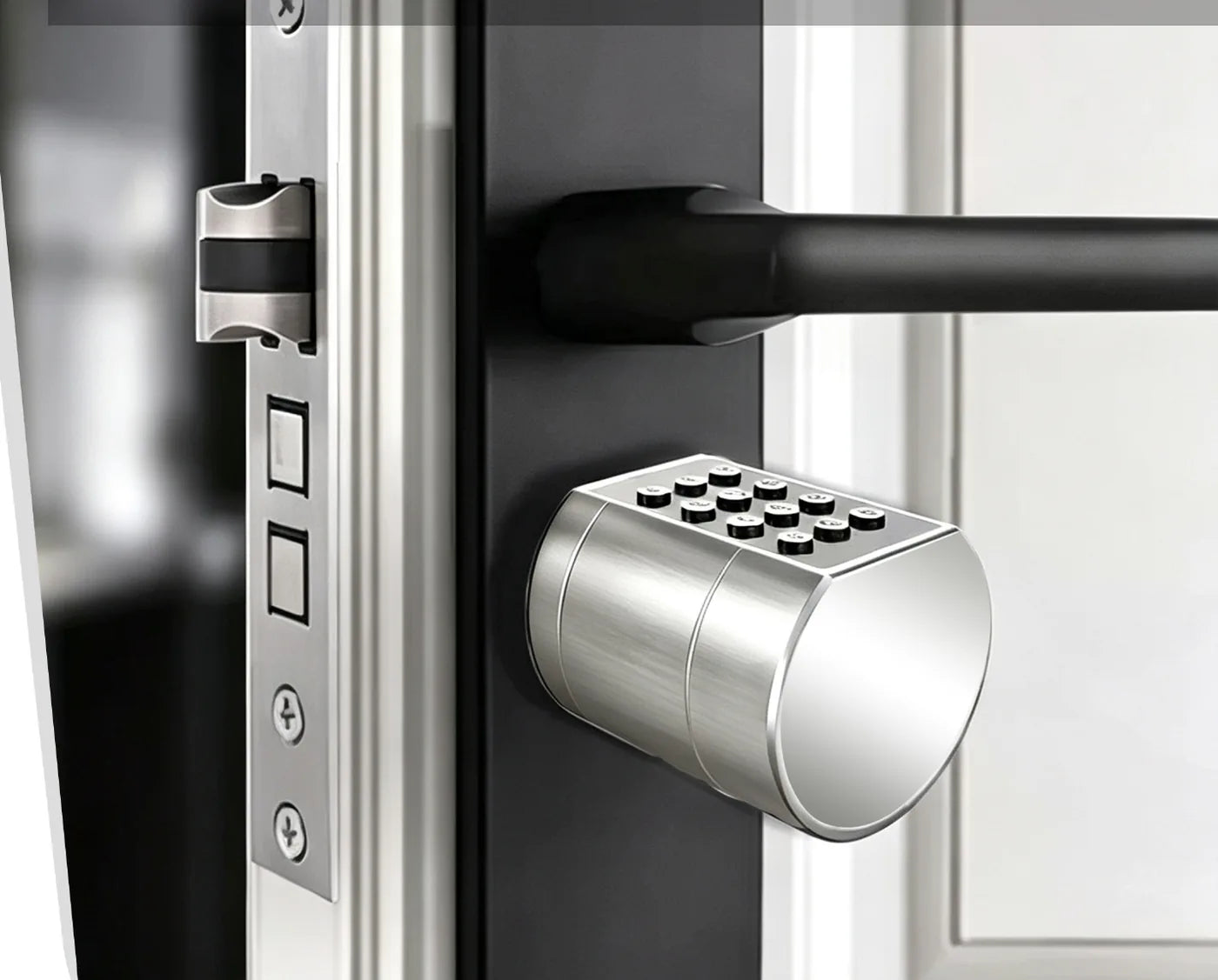

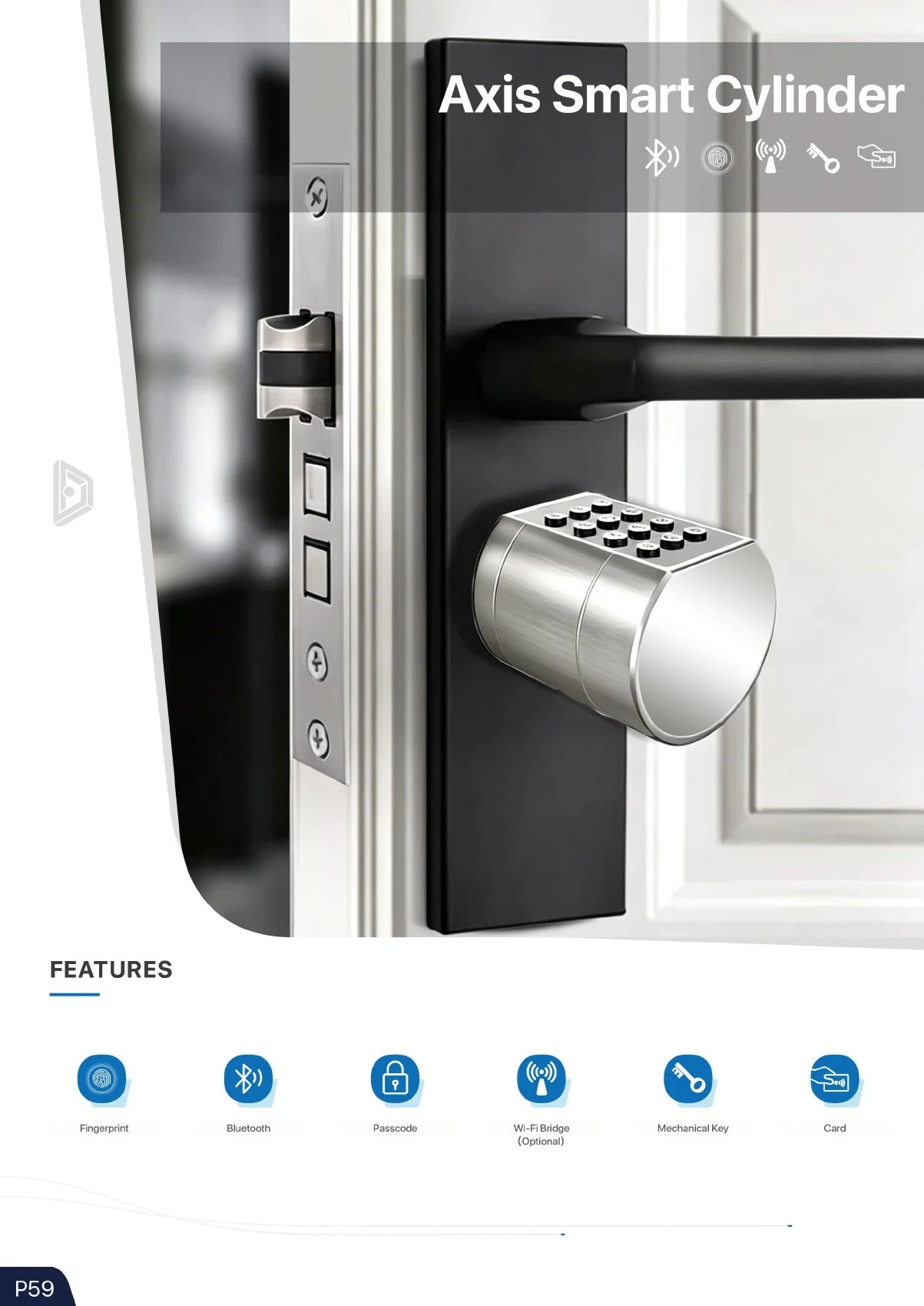

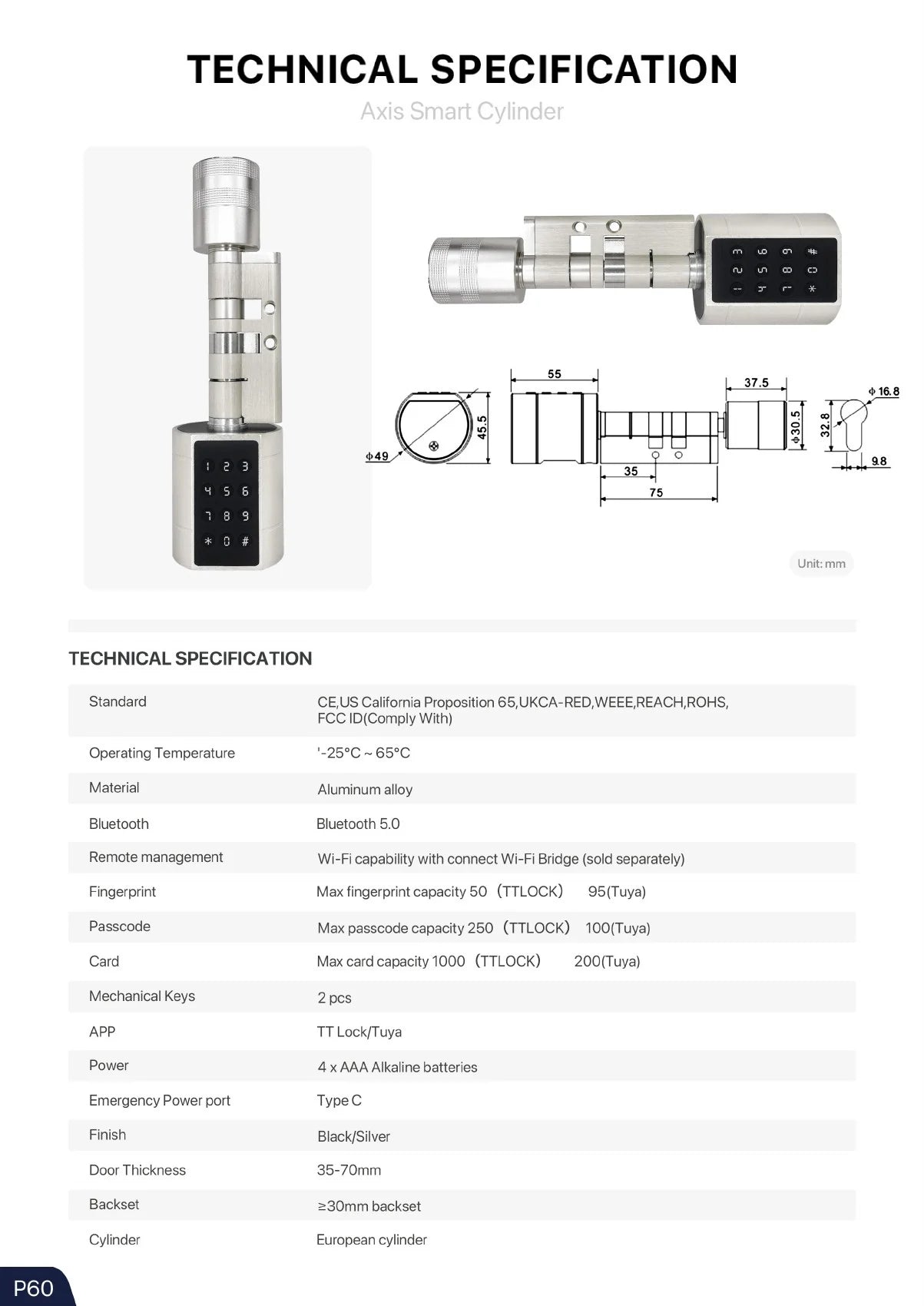

Axis Smart Cylinder
A smart cylinder solution for project doors, combining familiar mechanical hardware with fingerprint, passcode, card and app access.
Fingerprint Passcode Key card Backup key Bluetooth
Cylinder European profile
Door thickness 35–70 mm
Platforms TTLock / Tuya versions
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Cylinder European profile
Door thickness 35–70 mm
Platforms TTLock / Tuya versions
Power 4 × AAA batteries
Emergency power USB-C
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P59 P60
25 / 30Project solutions
Catalogue P61–62
25
Connected door monitoring

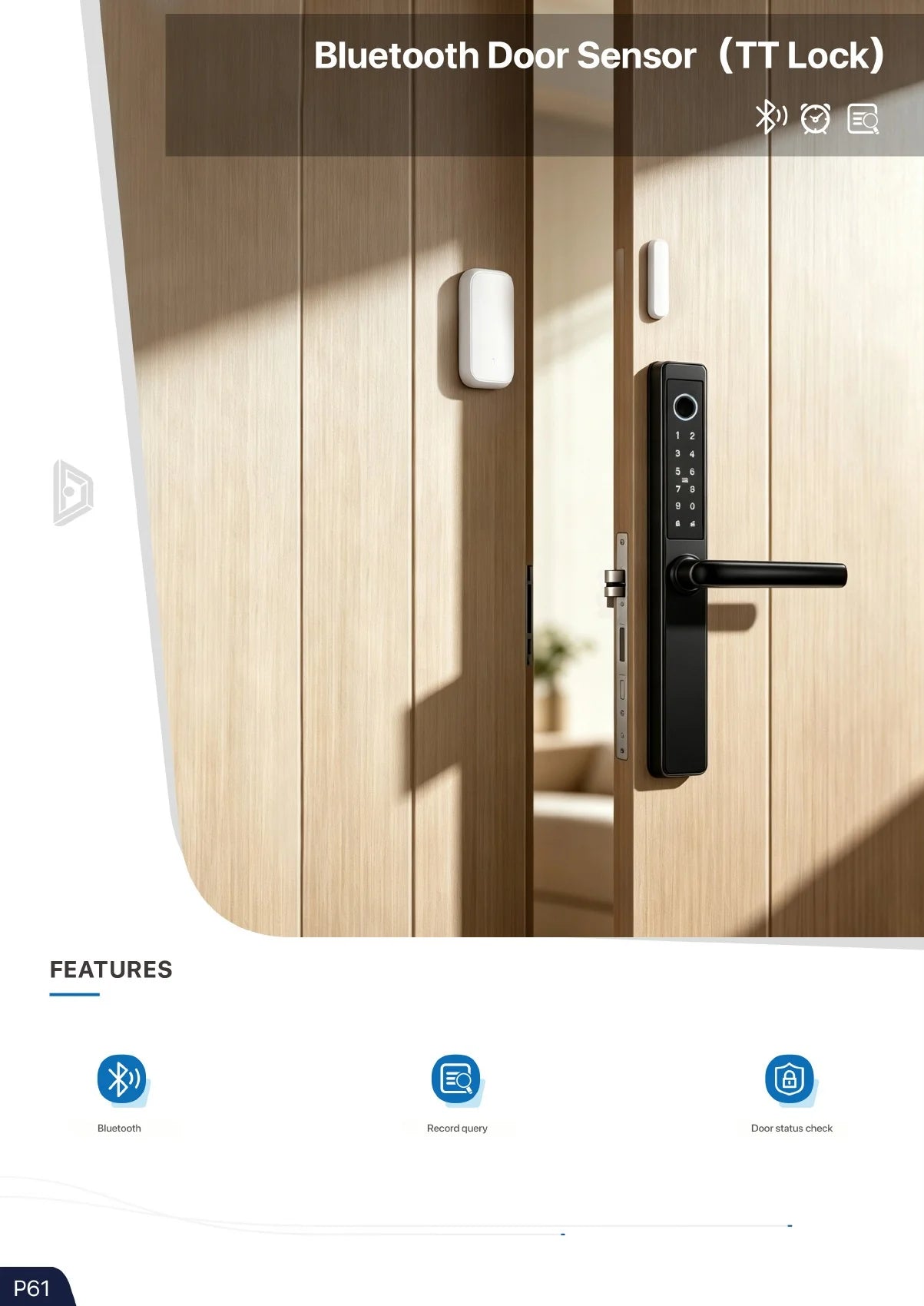

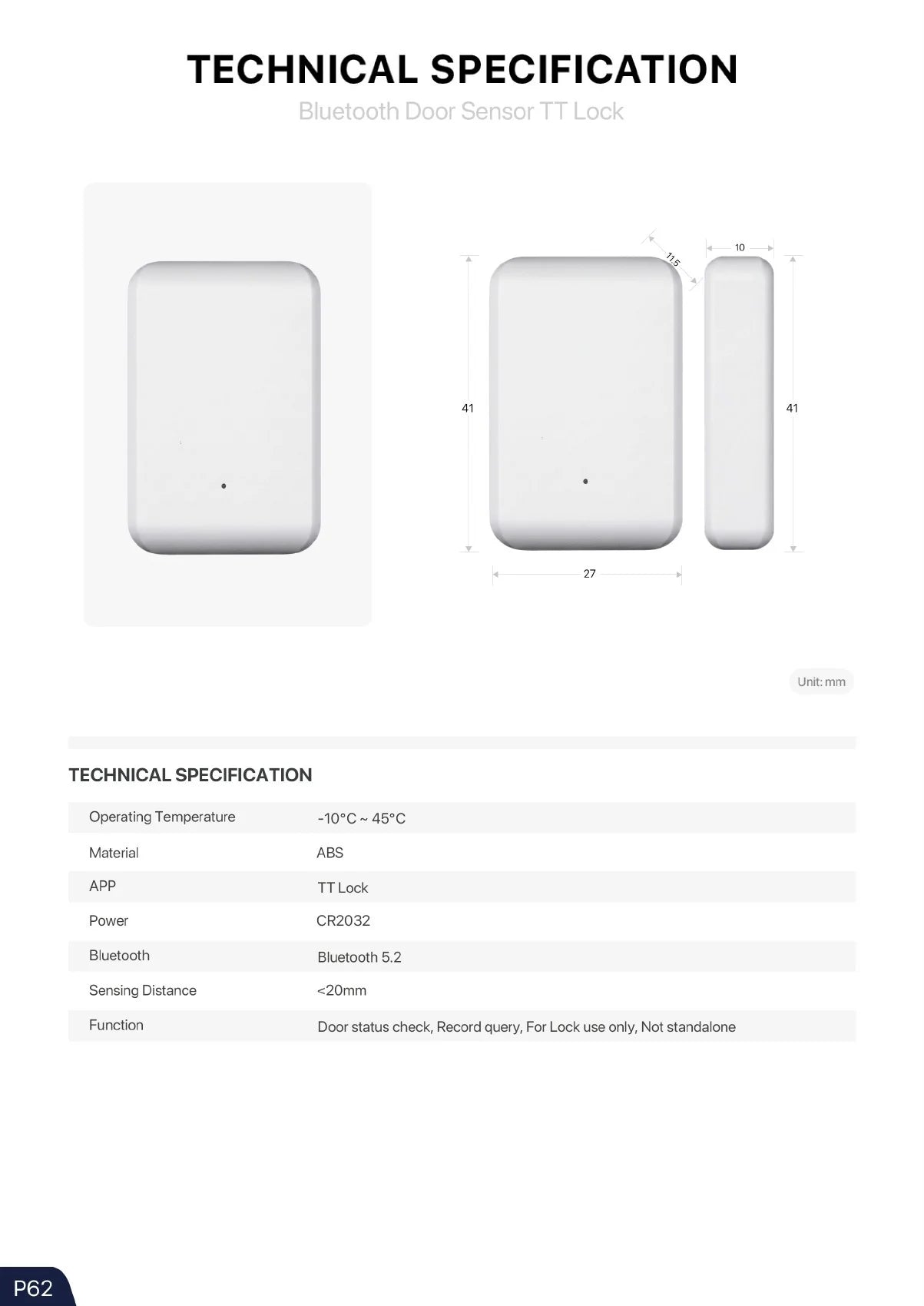

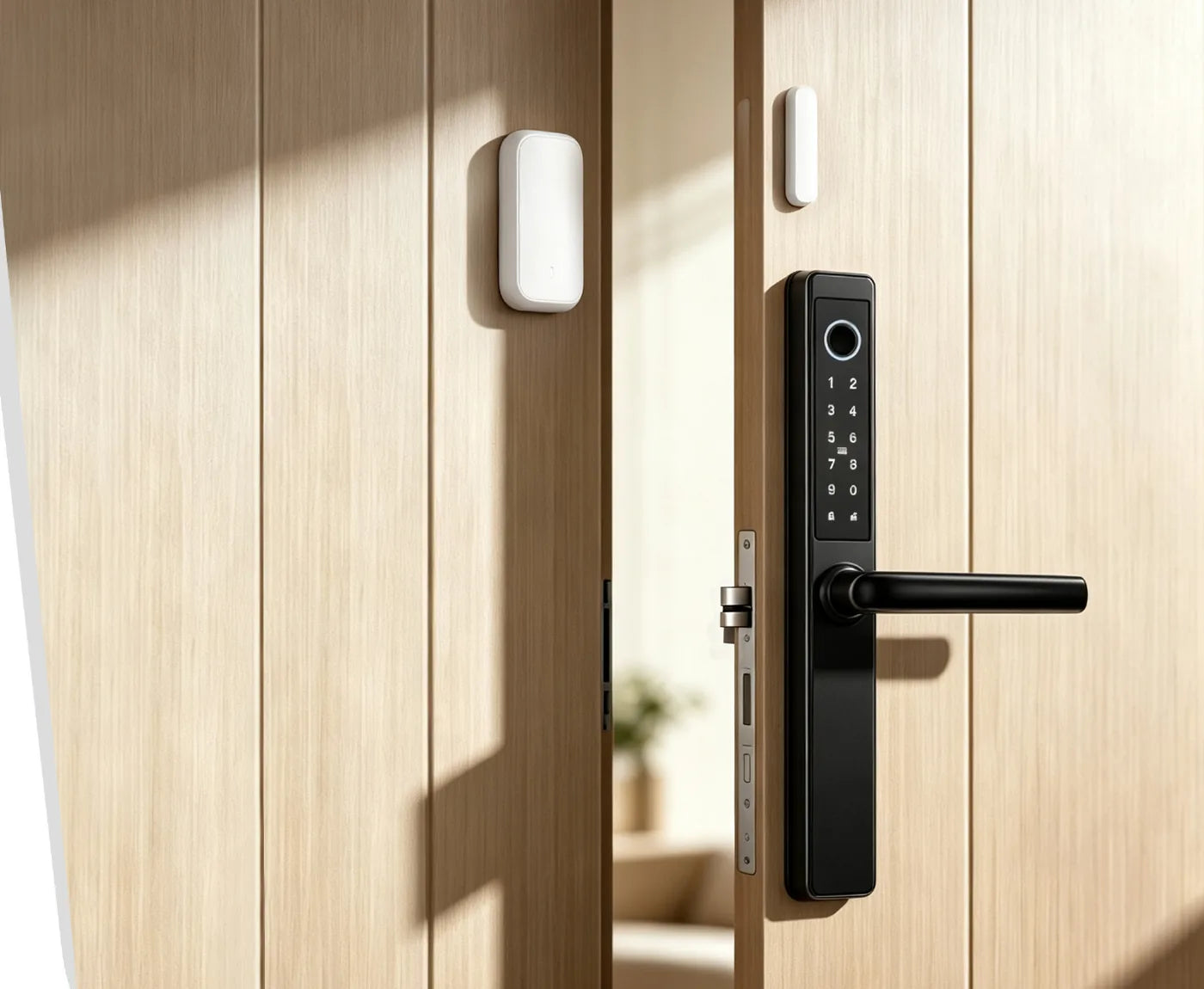

Bluetooth Door Sensor · TTLock
Check a compatible lock’s door status and records. The Bluetooth sensor works with a lock and is not a standalone sensor.
Bluetooth Door status Activity records
App TTLock
Bluetooth 5.2
Power CR2032
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App TTLock
Bluetooth 5.2
Power CR2032
Sensing distance Less than 20 mm
Use Compatible lock required
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P61 P62
26 / 30Project solutions
Catalogue P63–64
26
Standalone door & window monitoring

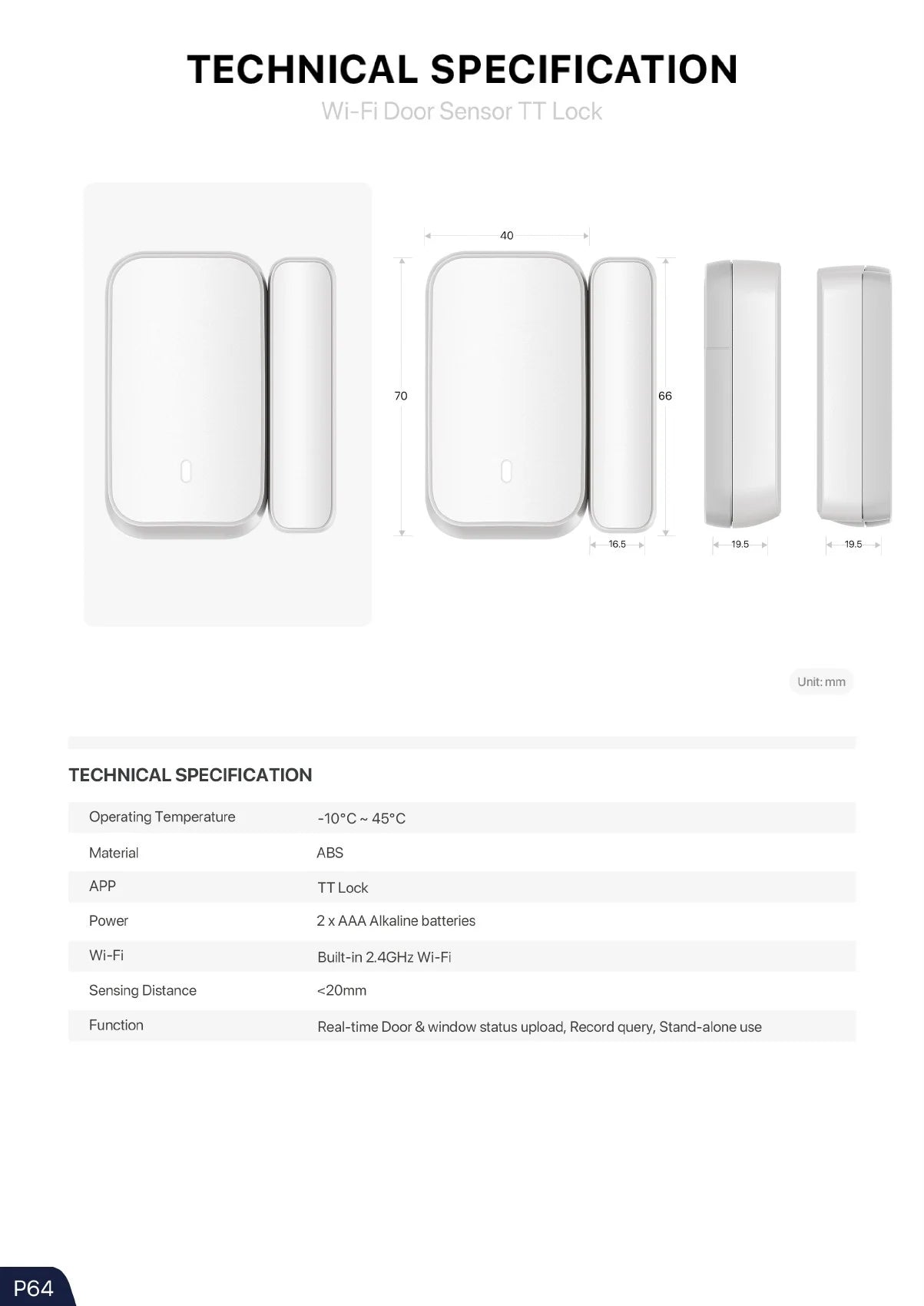

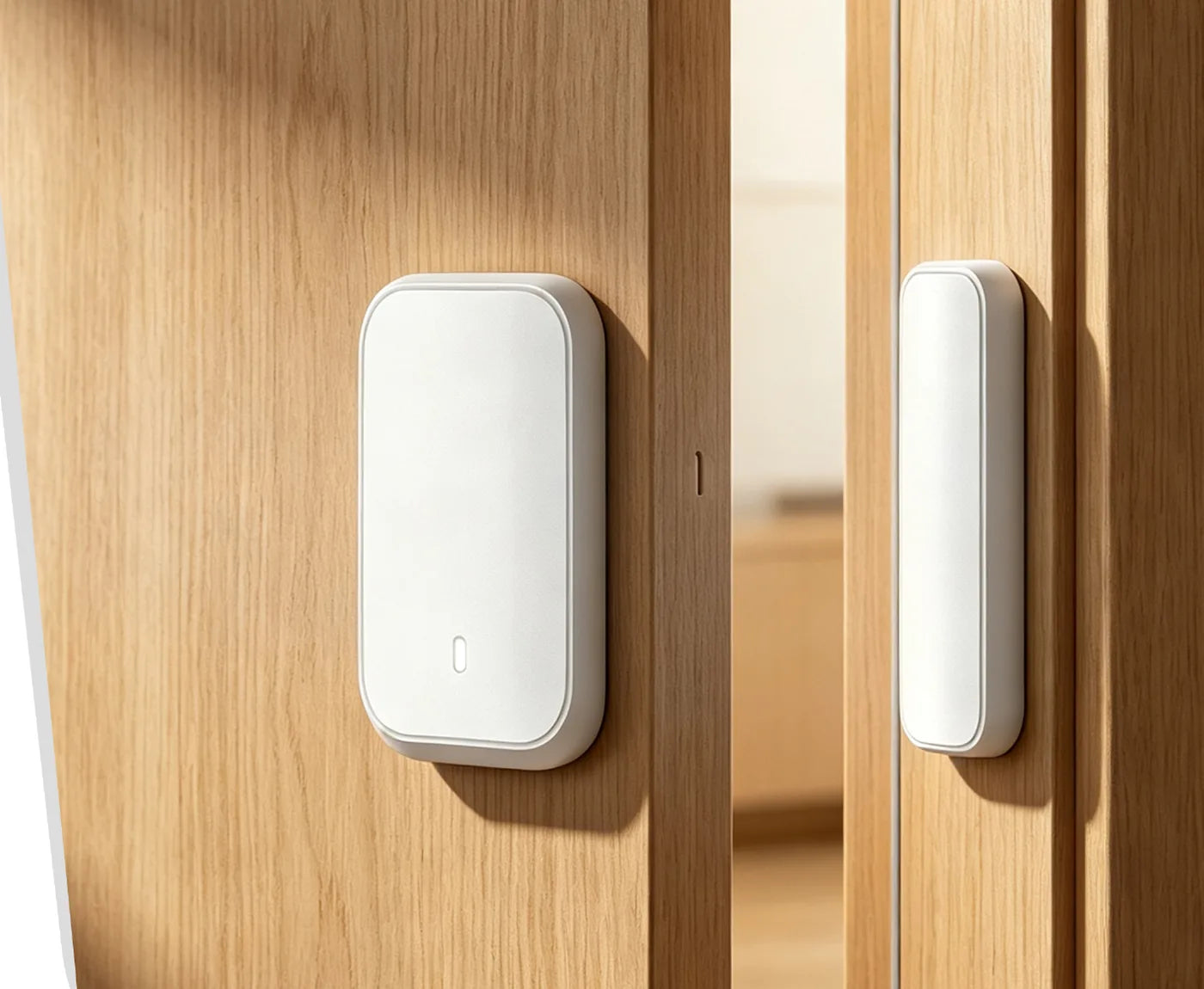

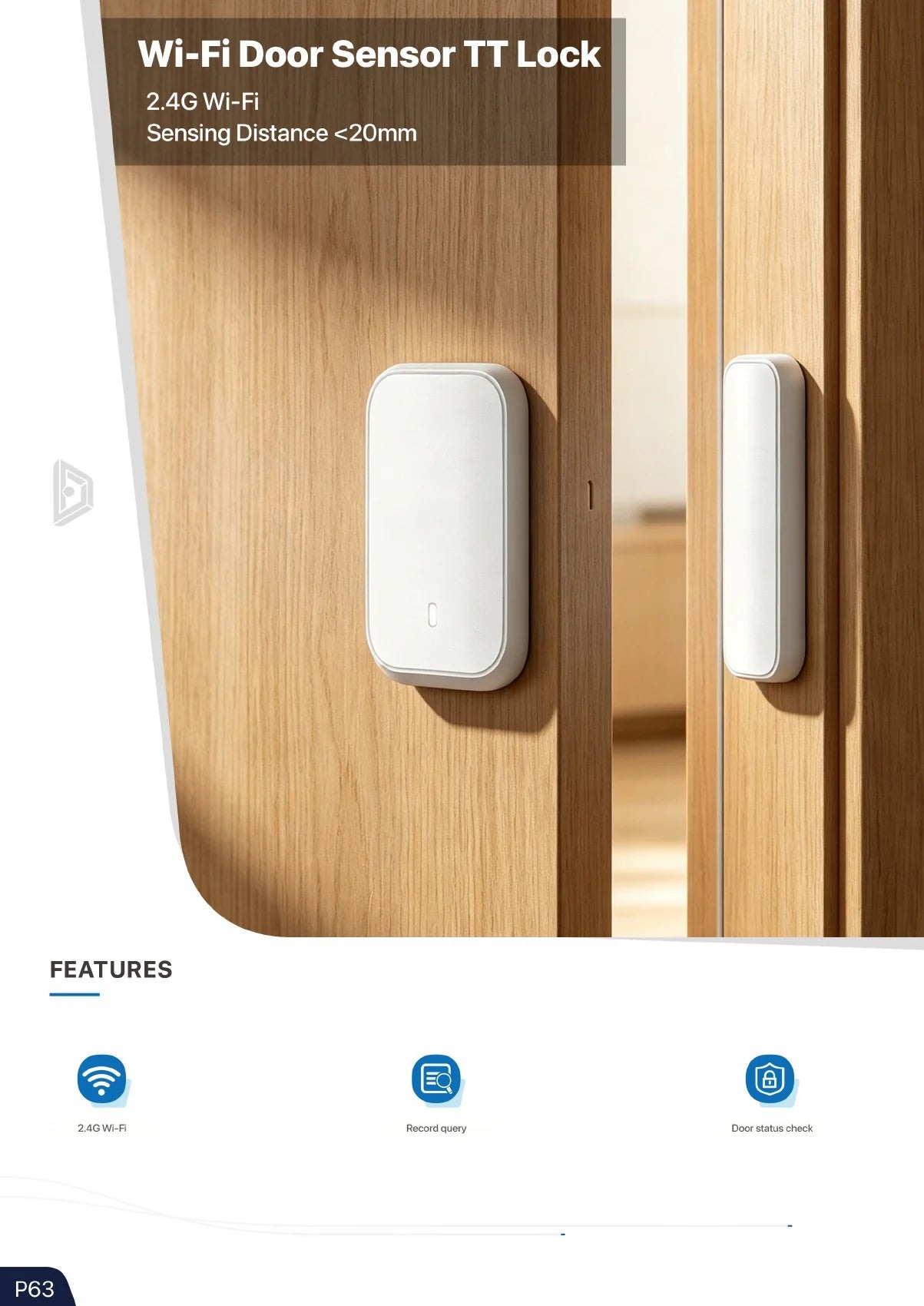

Wi-Fi Door Sensor · TTLock
A standalone Wi-Fi sensor for door and window status, with real-time status uploads and record queries.
2.4 GHz Wi-Fi Door status Activity records
App TTLock
Wi-Fi 2.4 GHz
Power 2 × AAA batteries
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App TTLock
Wi-Fi 2.4 GHz
Power 2 × AAA batteries
Sensing distance Less than 20 mm
Use Standalone
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P63 P64
27 / 30Project solutions
Catalogue P65–66
27

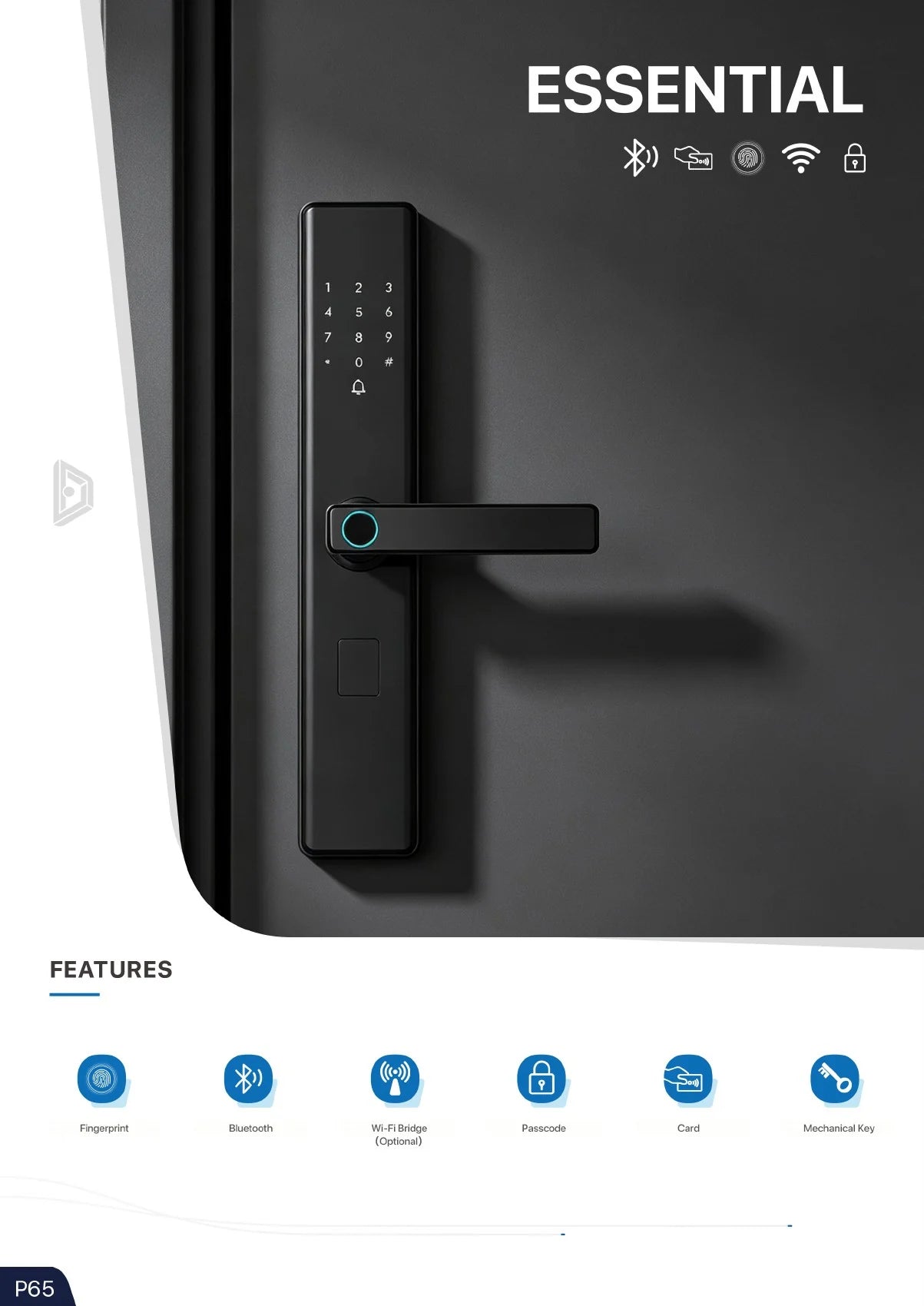

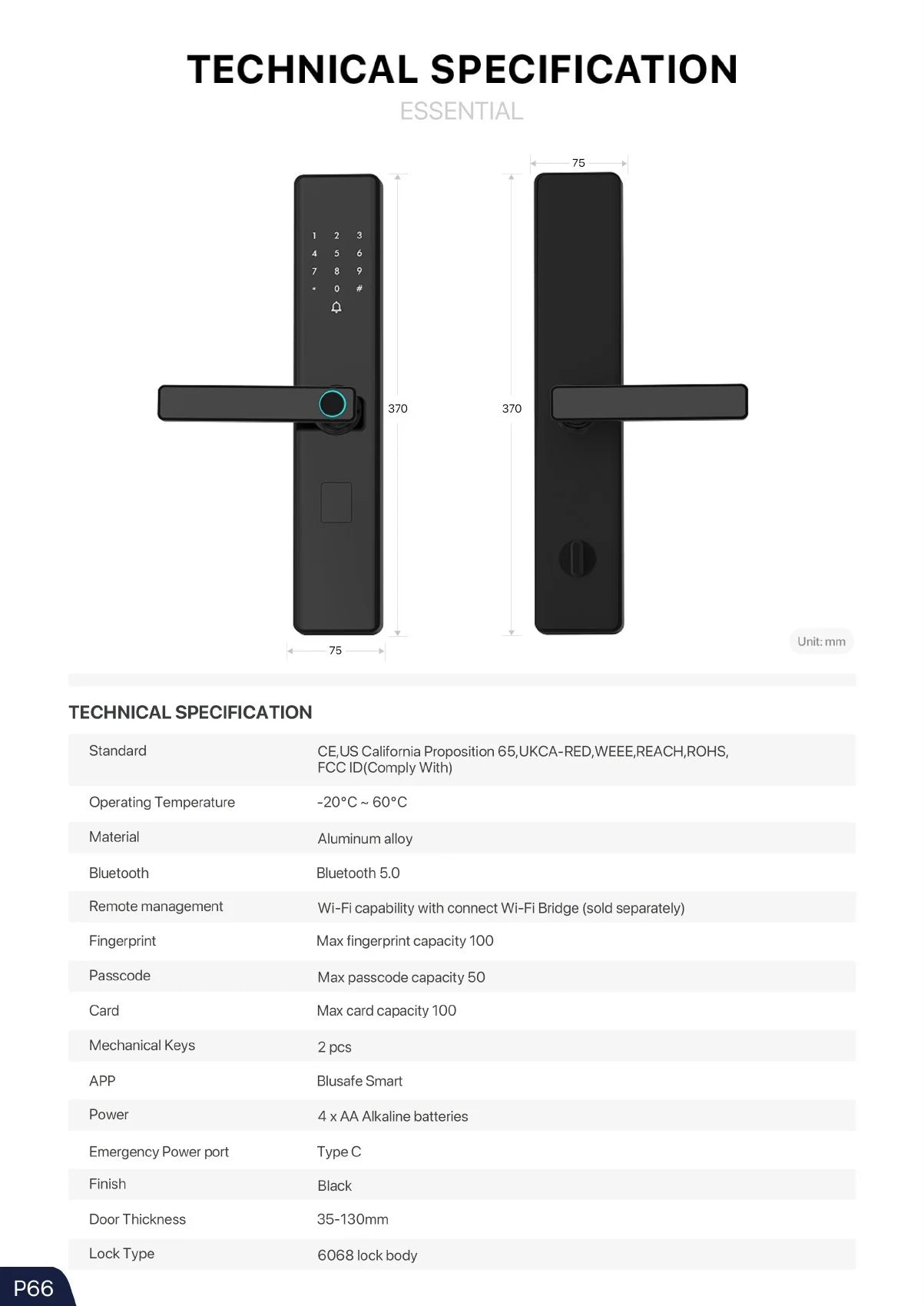

Smart mortise lock

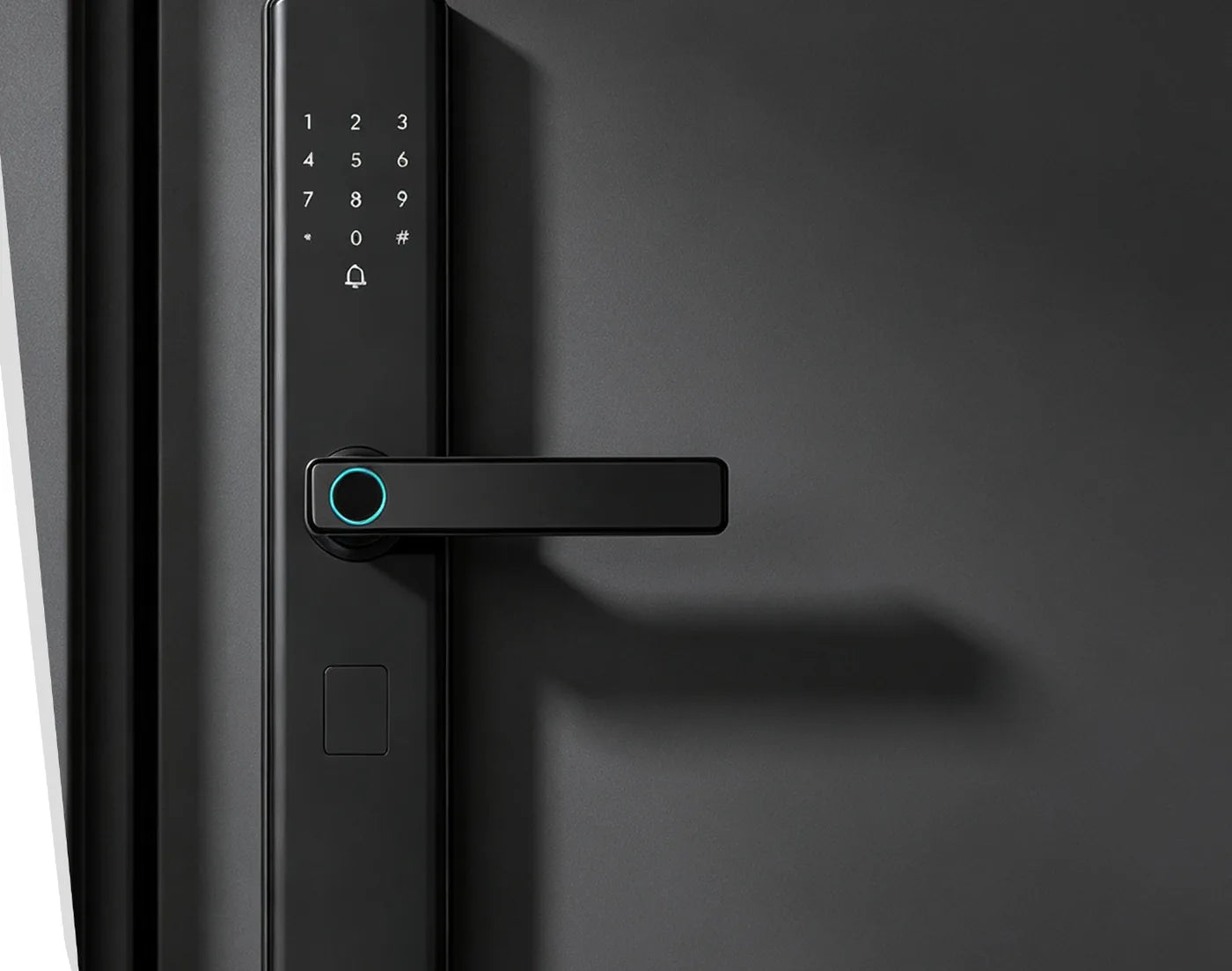

Essential
A smart handle for projects using a 6068 lock body, with fingerprint, passcode, card and mechanical access.
Fingerprint Passcode Key card Backup key Bluetooth
Lock body 6068
Door thickness 35–130 mm
App Blusafe Smart
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Lock body 6068
Door thickness 35–130 mm
App Blusafe Smart
Power 4 × AA batteries
Catalogue finish Black
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P65 P66
28 / 30Project solutions
Catalogue P67–68
28

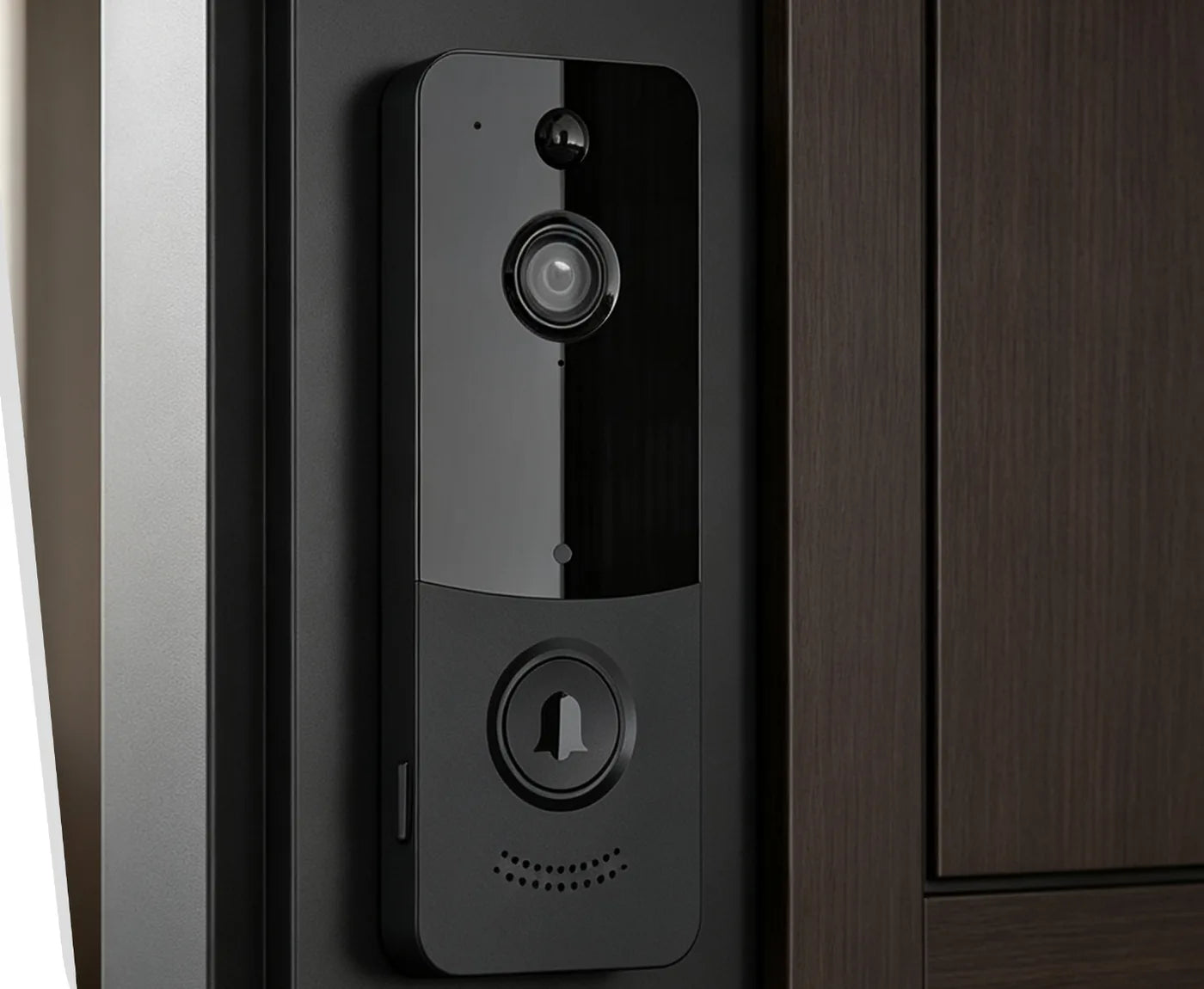

Video doorbell & gateway

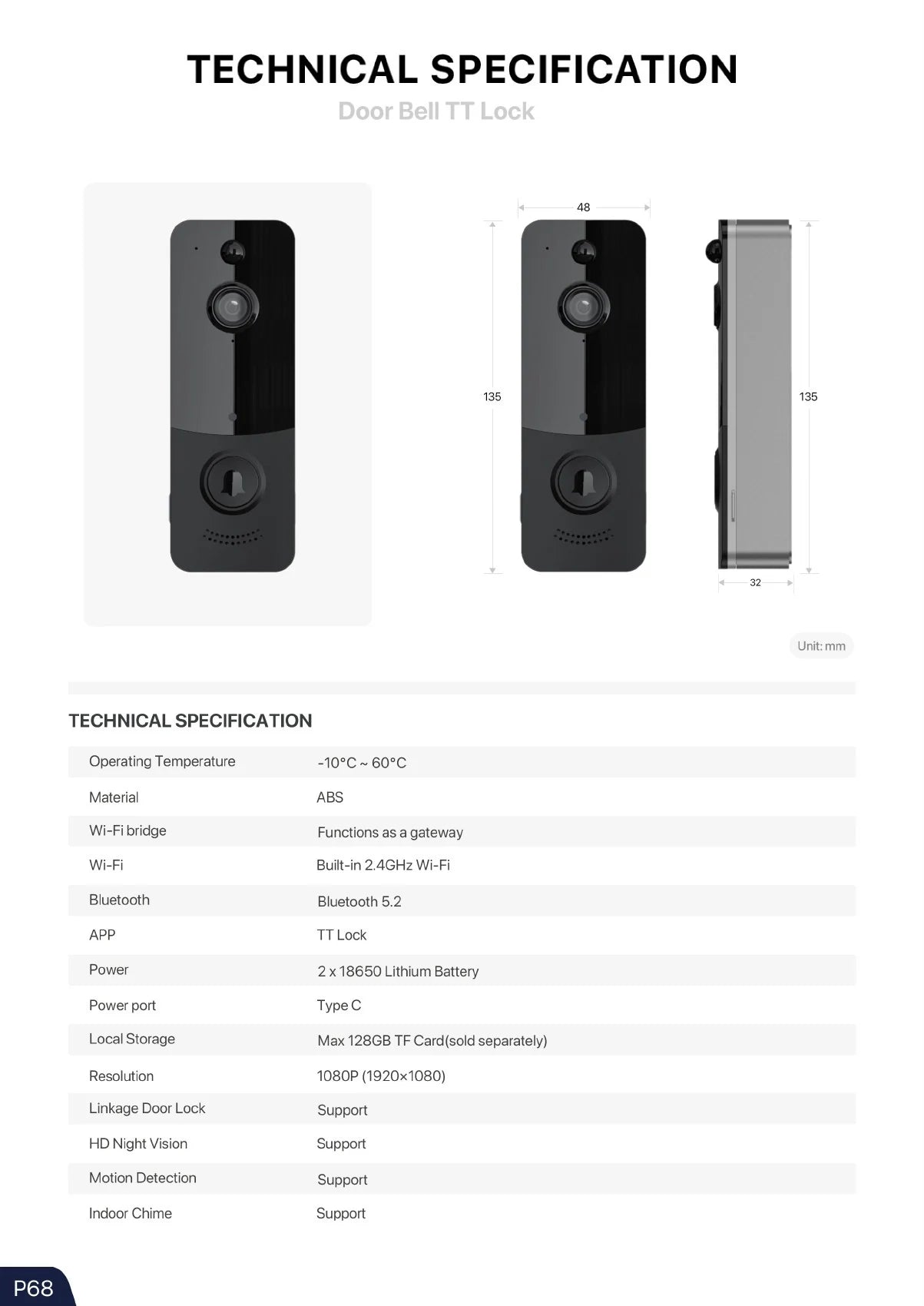

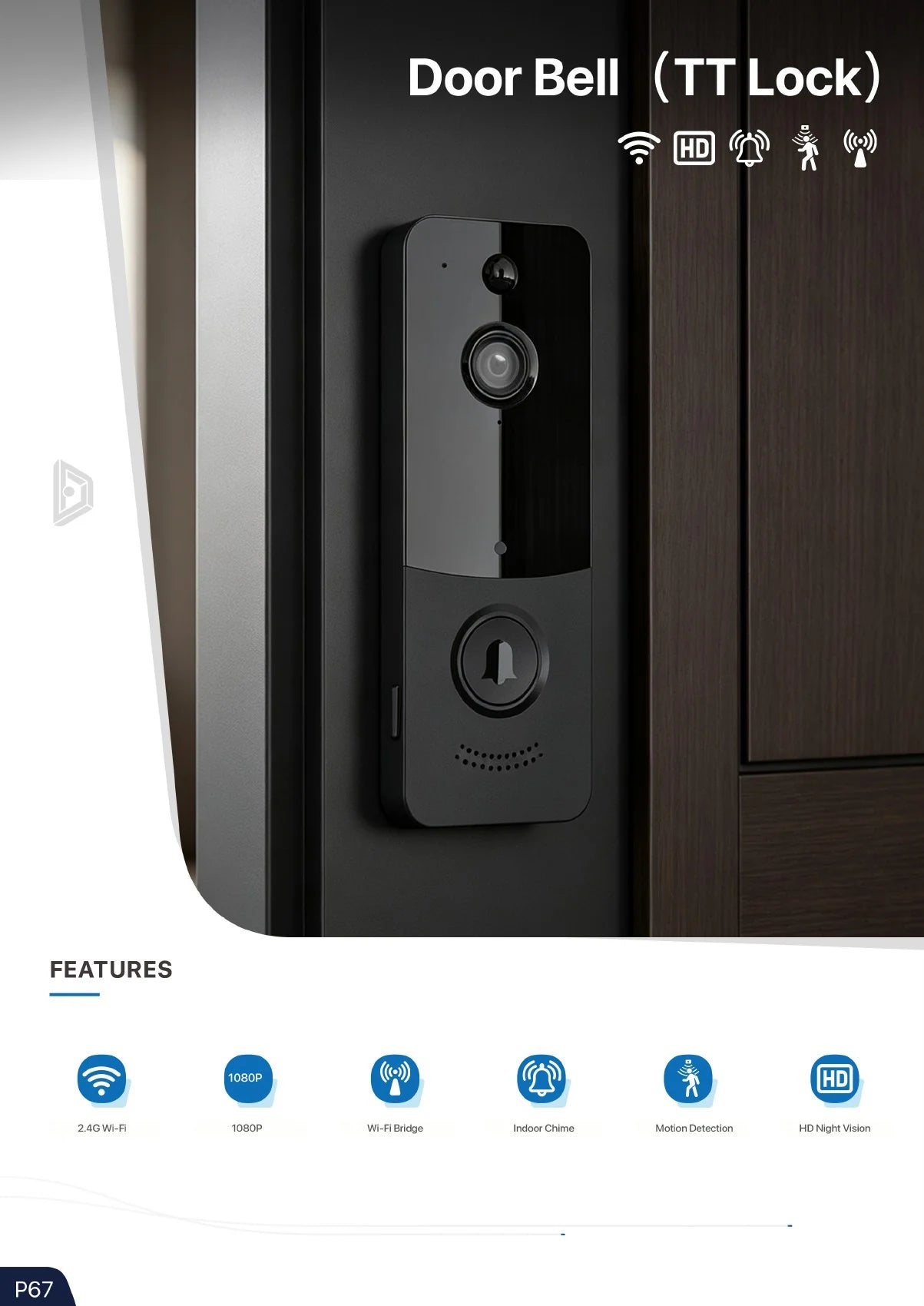

Door Bell · TTLock
A connected doorbell with video, motion detection and compatible lock linkage. The brochure also describes gateway functionality.
1080p video Night vision Motion detection Indoor chime
App TTLock
Wi-Fi 2.4 GHz
Power 2 × 18650 lithium batteries
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App TTLock
Wi-Fi 2.4 GHz
Power 2 × 18650 lithium batteries
Local storage Up to 128 GB TF card, sold separately
Power port USB-C
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P67 P68
29 / 30Project solutions
Catalogue P69–71
29

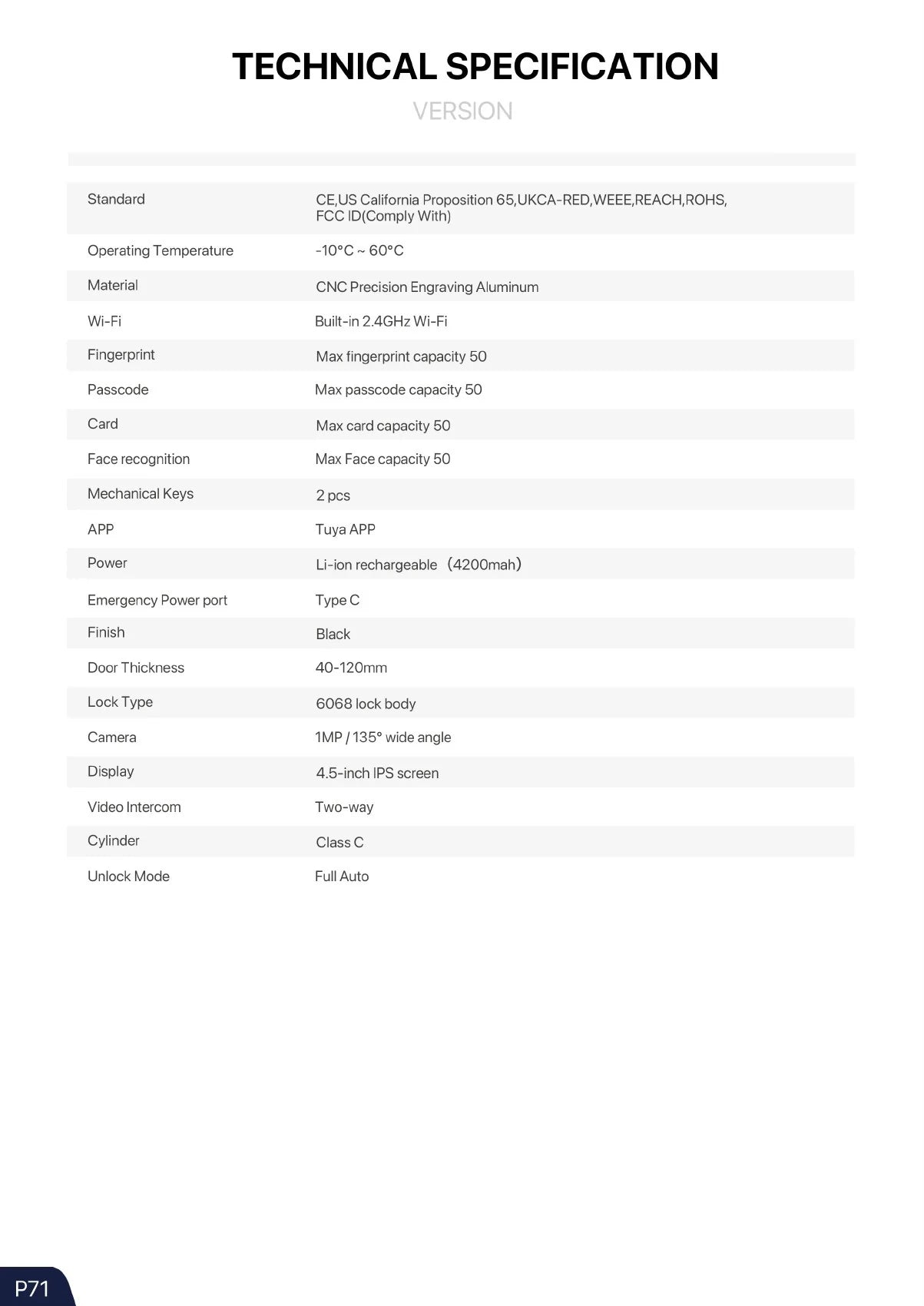

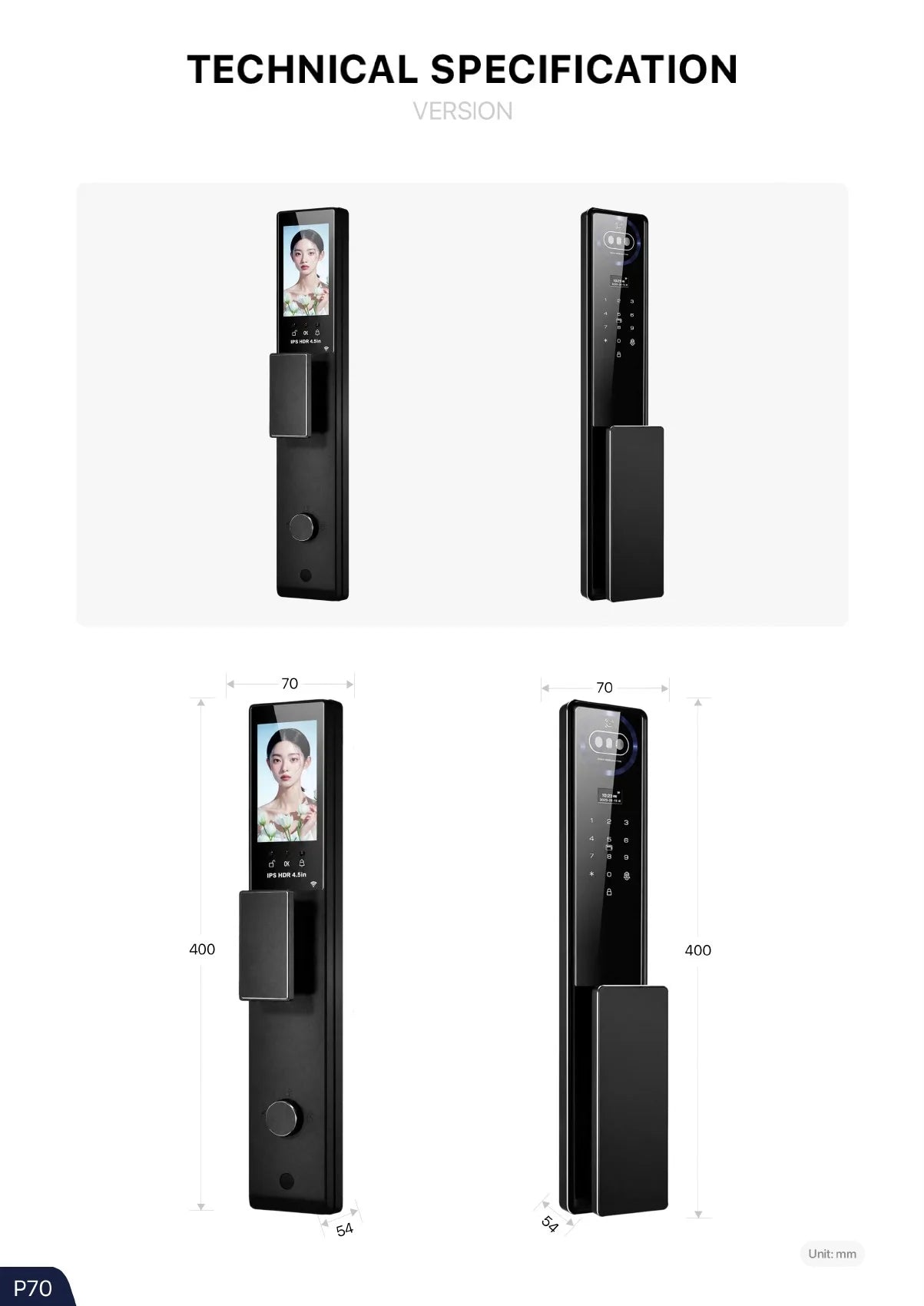

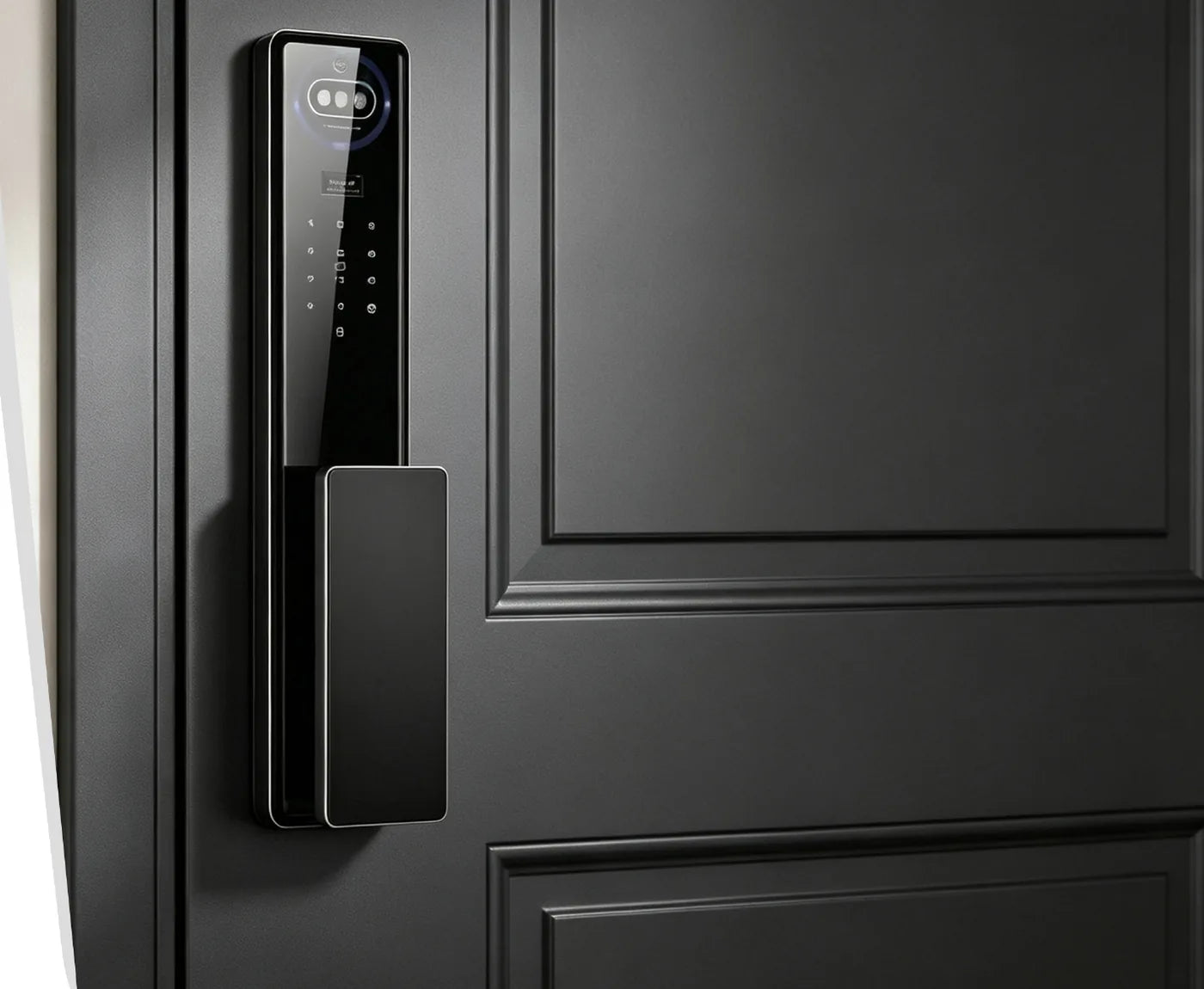

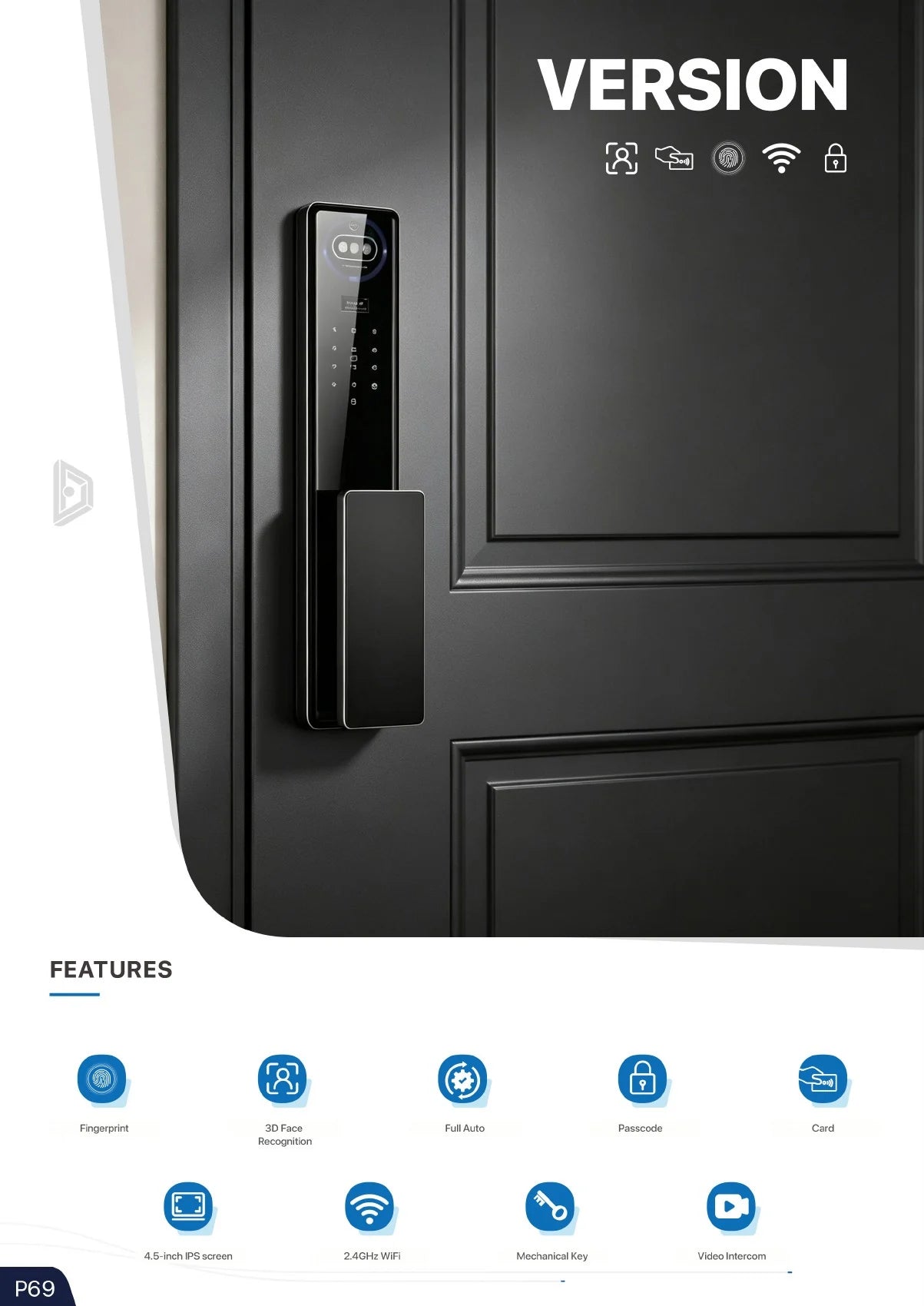

Face recognition smart lock
Version
An automatic smart lock with face recognition, a camera and an interior display for a connected entrance.
Face recognition Fingerprint Passcode Video intercom
Lock body 6068
Door thickness 40–120 mm
App Tuya
Full specifications & original catalogue pages 5 specs · 3 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
Lock body 6068
Door thickness 40–120 mm
App Tuya
Display 4.5-inch IPS
Power Rechargeable 4,200 mAh battery
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
30 / 30Project solutions
Catalogue P72–73
30

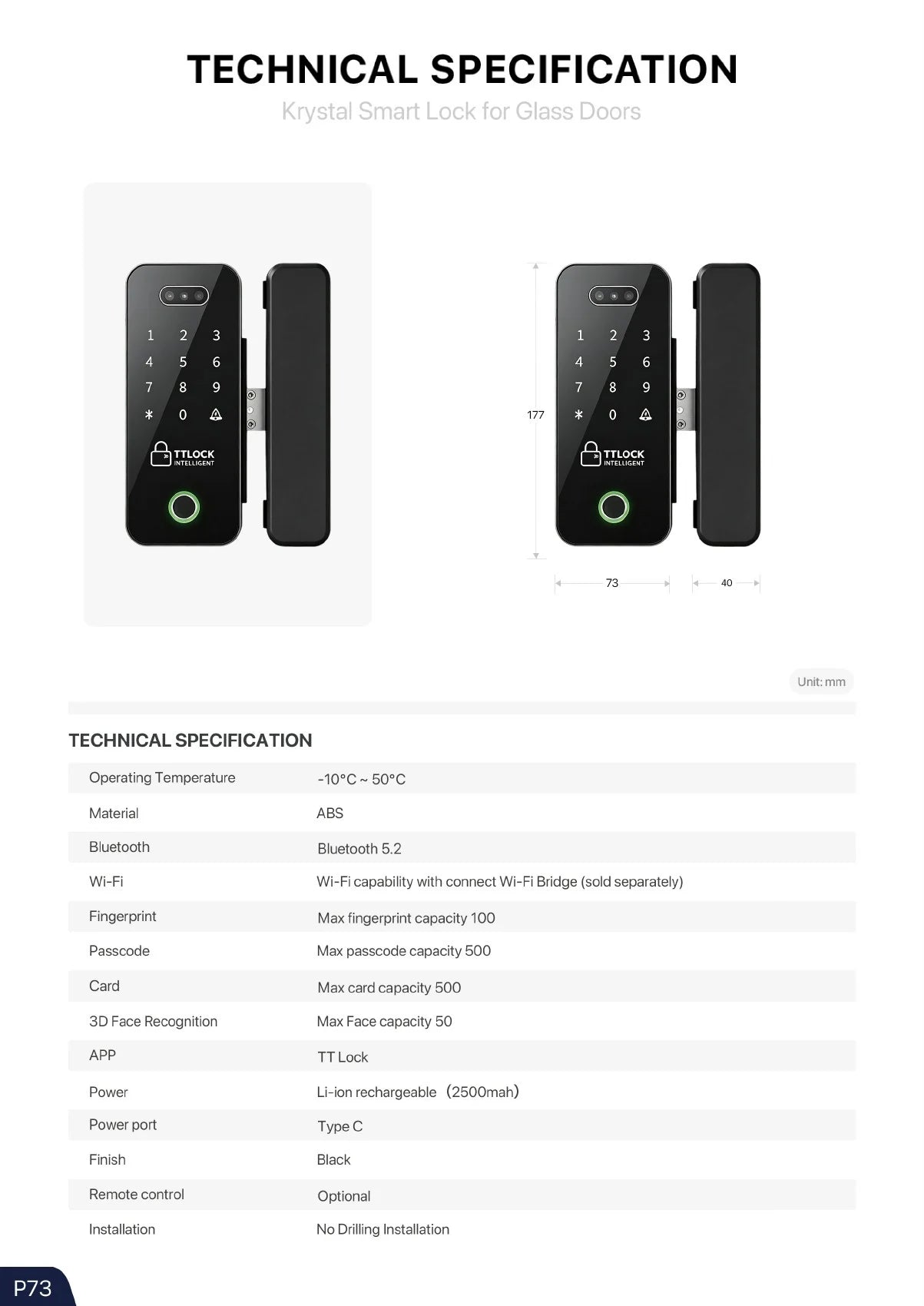

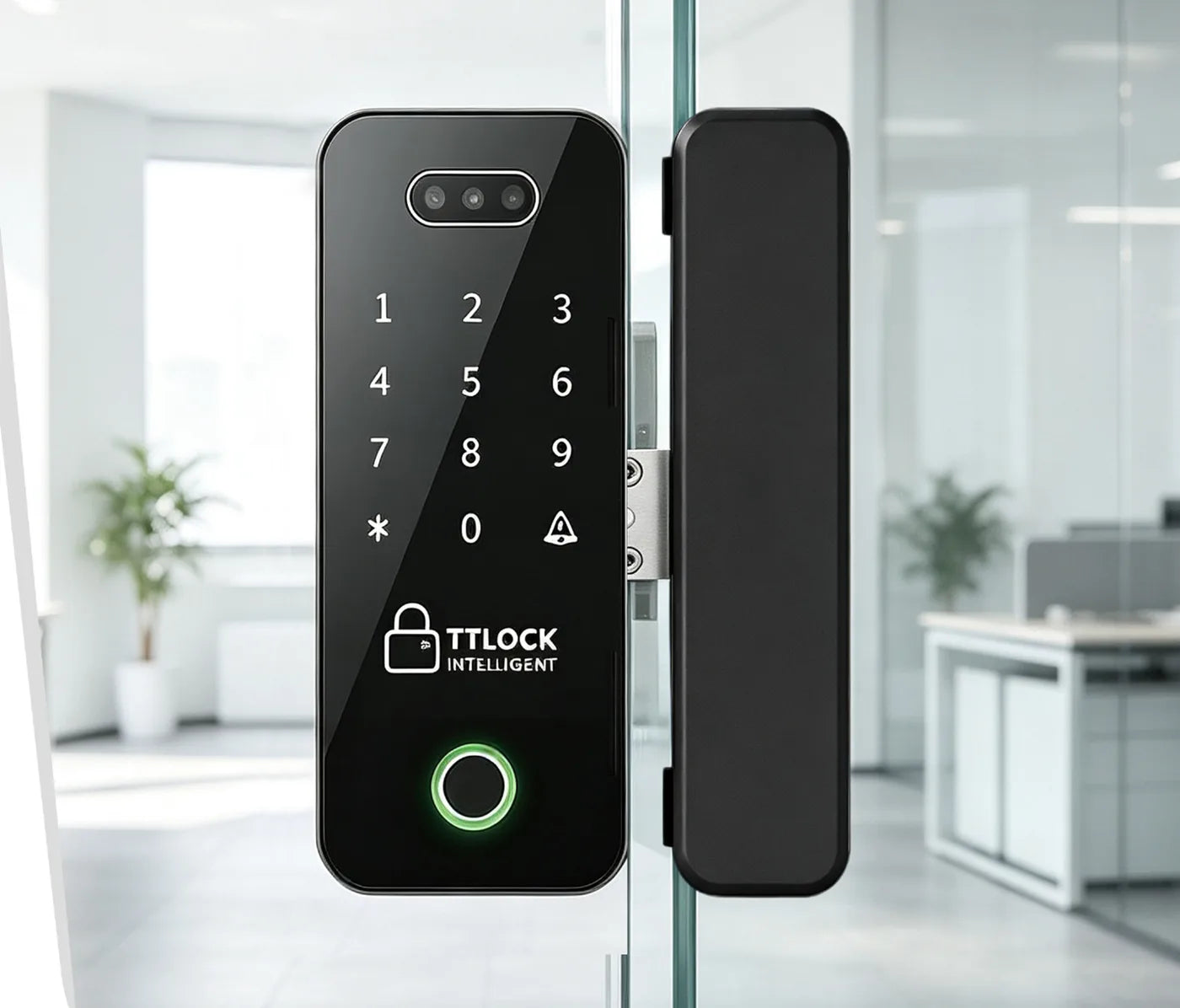

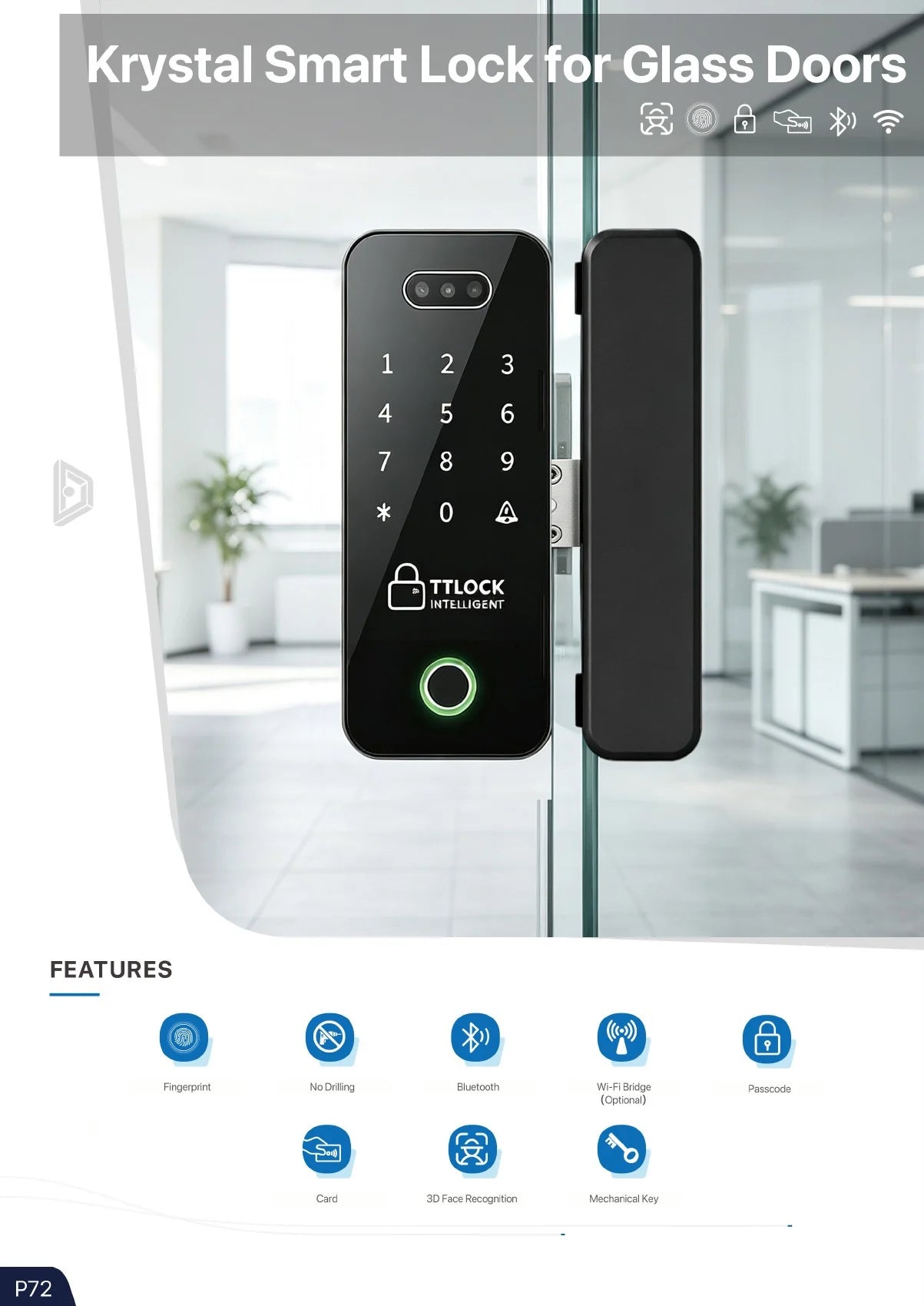

Smart lock for glass doors
Krystal
A glass-door smart lock with a no-drilling installation described in the brochure, combining face, fingerprint, passcode and card entry.
3D face recognition Fingerprint Passcode Key card Bluetooth
App TTLock
Fingerprints Up to 100
Passcodes / cards Up to 500 each
Full specifications & original catalogue pages 5 specs · 2 pages
Catalogue specifications
As printed in the brochure edition. Check the current U.S. listing or contact us to confirm the exact model and door compatibility.
App TTLock
Fingerprints Up to 100
Passcodes / cards Up to 500 each
Face profiles Up to 50
Power Rechargeable 2,500 mAh battery
The original pages
Product details, finishes, dimensions and full technical tables. Select a page to view it in the reader.
P72 P73
