USB-C emergency power
Power it from USB-C, then unlock as normal.
USB-C powers the lock; it is not a way to unlock by itself.
Venix interactive demo
See it.Try it.
Play with the Venix smart deadbolt before you buy: choose a way in, tap the keypad, set the relock timer and check your door.
Studio render. Illustrative demos, not sensor output. Separate passage handle not included.
Six ways in
Pick one.Watch the bolt.
Every way in ends the same way: Venix recognizes you and retracts the bolt. The handle is yours.
Up to 50 profiles shared by face and palm vein; up to 50 PINs. Remote use needs 2.4 GHz Wi-Fi and your phone online. Studio renders.
3D face
IllustrativeIllustrative cutaway
Choose a way in
Illustrative scan graphic; timing is not a measured response speed.

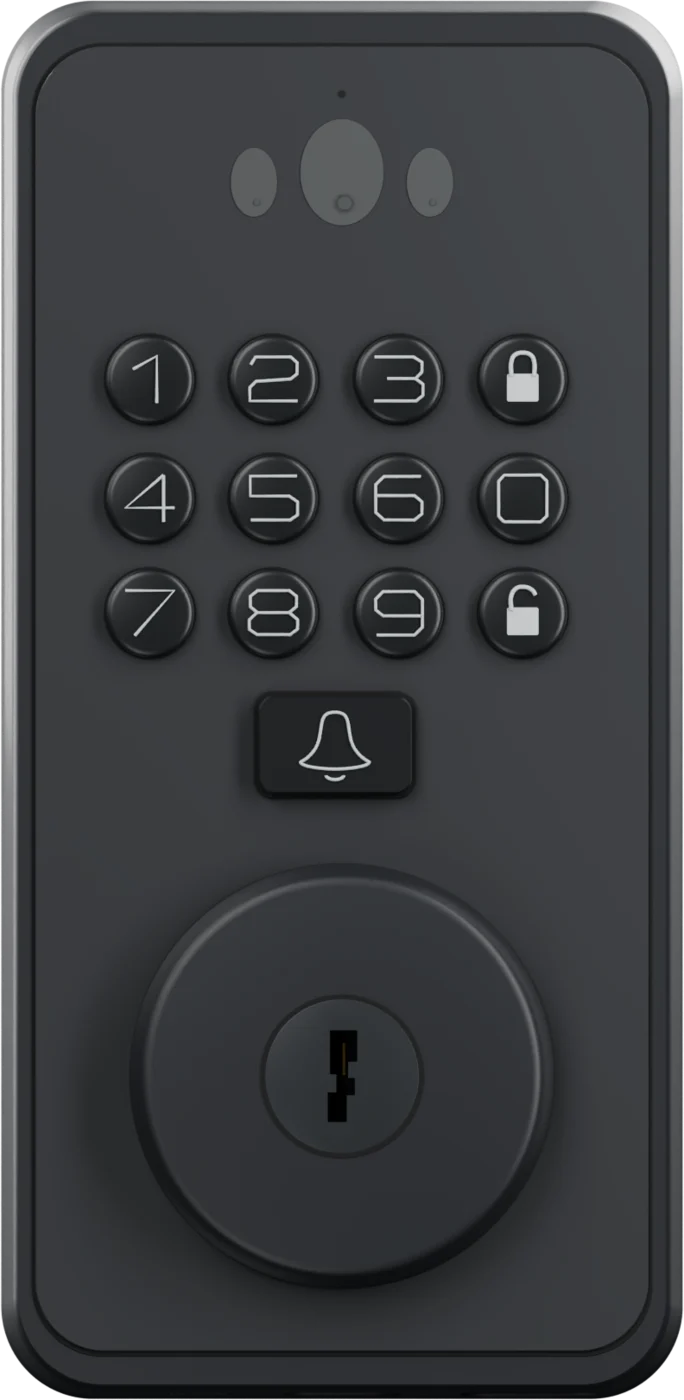

Keypad
Tap ina code.
Watch it once, then try it: tap 6 to 10 digits on the real keys, then the unlock key. The lock key clears.
Your PIN
0 of 6 to 10 digitsWatch how it works
Bolt retracts
Illustrative cutaway
Then open the door with your own handle.
Temporary PIN · Dog walker
000000
Share it with your guest. They tap it in like any other code.
Illustrative code. Permanent and temporary PINs share 50 places. Temporary PINs are set in the Tuya Smart app. Illustrative cutaway; studio renders.
Auto-relock
Relocks behind you.
- You unlock
- Your delay counts down
- Venix throws the bolt again
Turn on automatic relocking in the Tuya Smart app and Venix throws the bolt again 5 to 99 seconds after unlocking. Or leave it off.
Switch on “automatic lock switch”, then pick the delay in “auto lock delay time set”. This real screen is set to 10 seconds, the example the dial counts down.
5–99 s
Delay you choose, in seconds
Off
Or turn it off
Optional. Auto-relock runs on a timer after unlocking; it doesn't detect whether the door is closed. Illustrative render, loupe and countdown (sped up), with a real Tuya Smart app screen. Venix controls the deadbolt; you open the door with the separate handle, not included.
Before you buy
Will it fityour door?
Three quick questions. Each answer shows you what to look for on your door.
2⅛ in cross bore1½ in with the spare locator
1 in edge bore
Backset 2⅜ or 2¾ inSet on the deadbolt
Door thickness1.38–2.17 in (35–55 mm)
- Holes 2⅛ in (54 mm) cross bore, 1 in (25 mm) edge bore
- Backset 2⅜ or 2¾ in (60 or 70 mm), edge to hole center
- Door 1.38–2.17 in (35–55 mm) thick
On a door already prepared for a standard deadbolt. New doors need drilling; the cutout drawing is in the box. Smart deadbolt only; a separate passage handle is required and not included. Illustrative installation animation.
Design
Made for yourfront door.

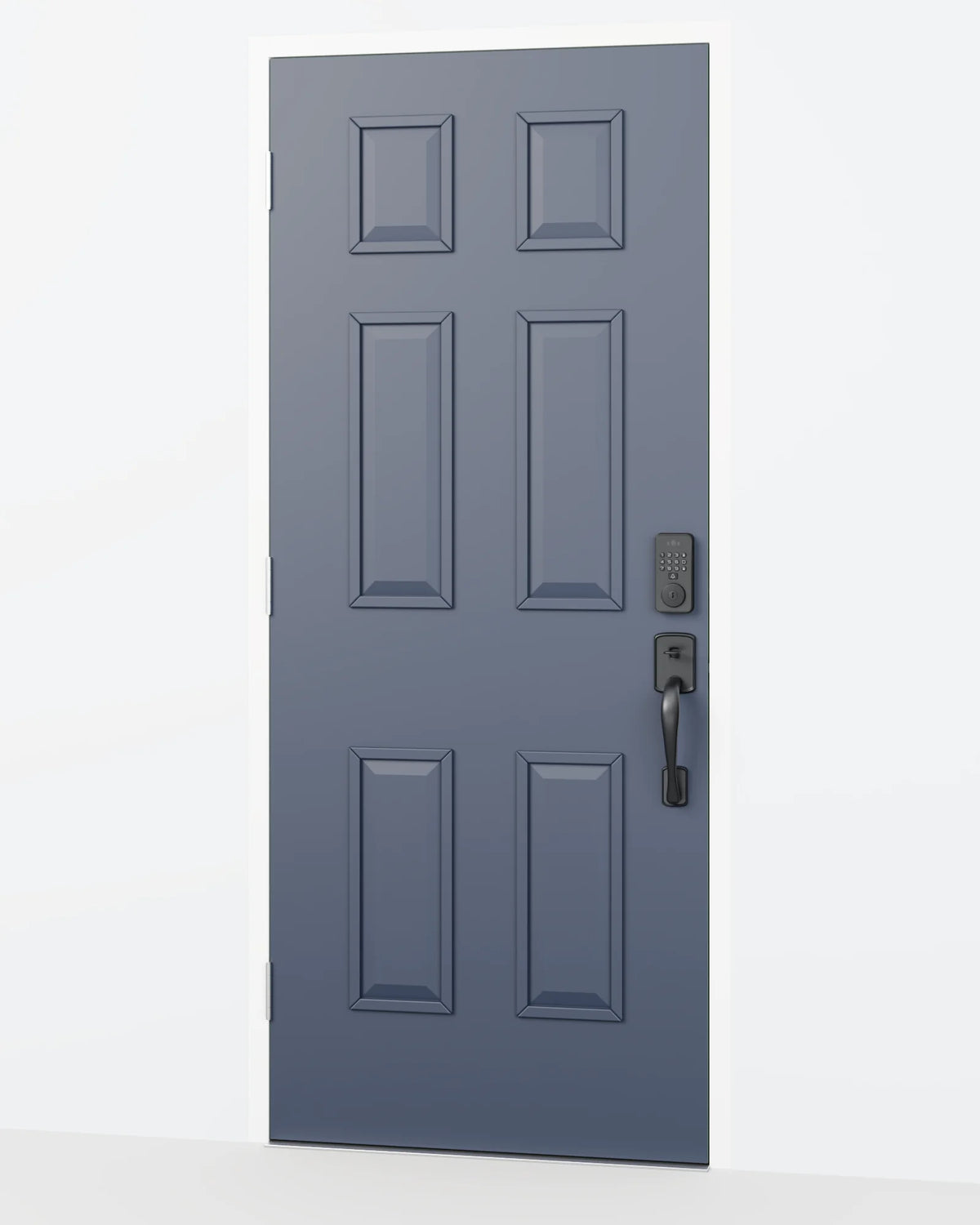

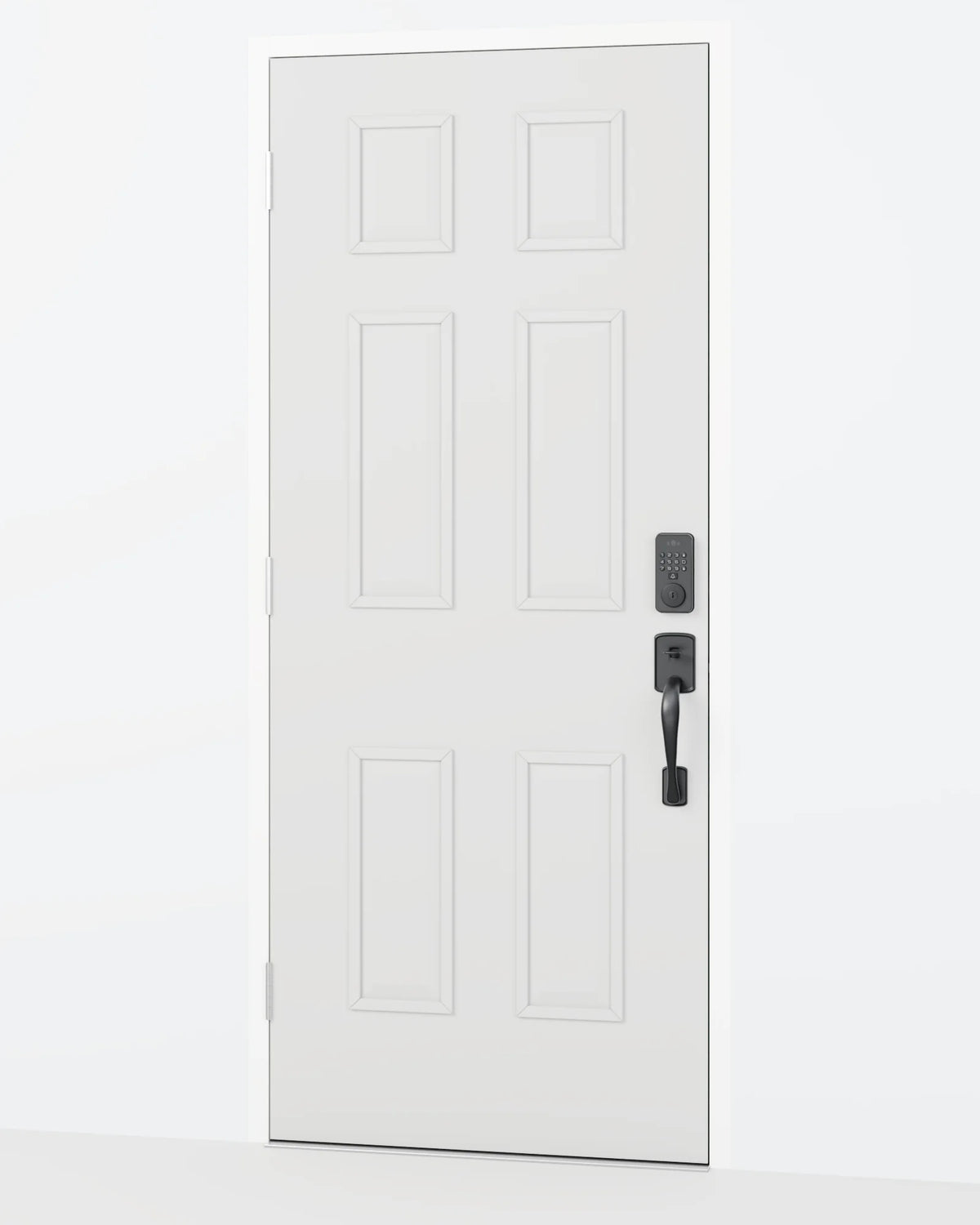

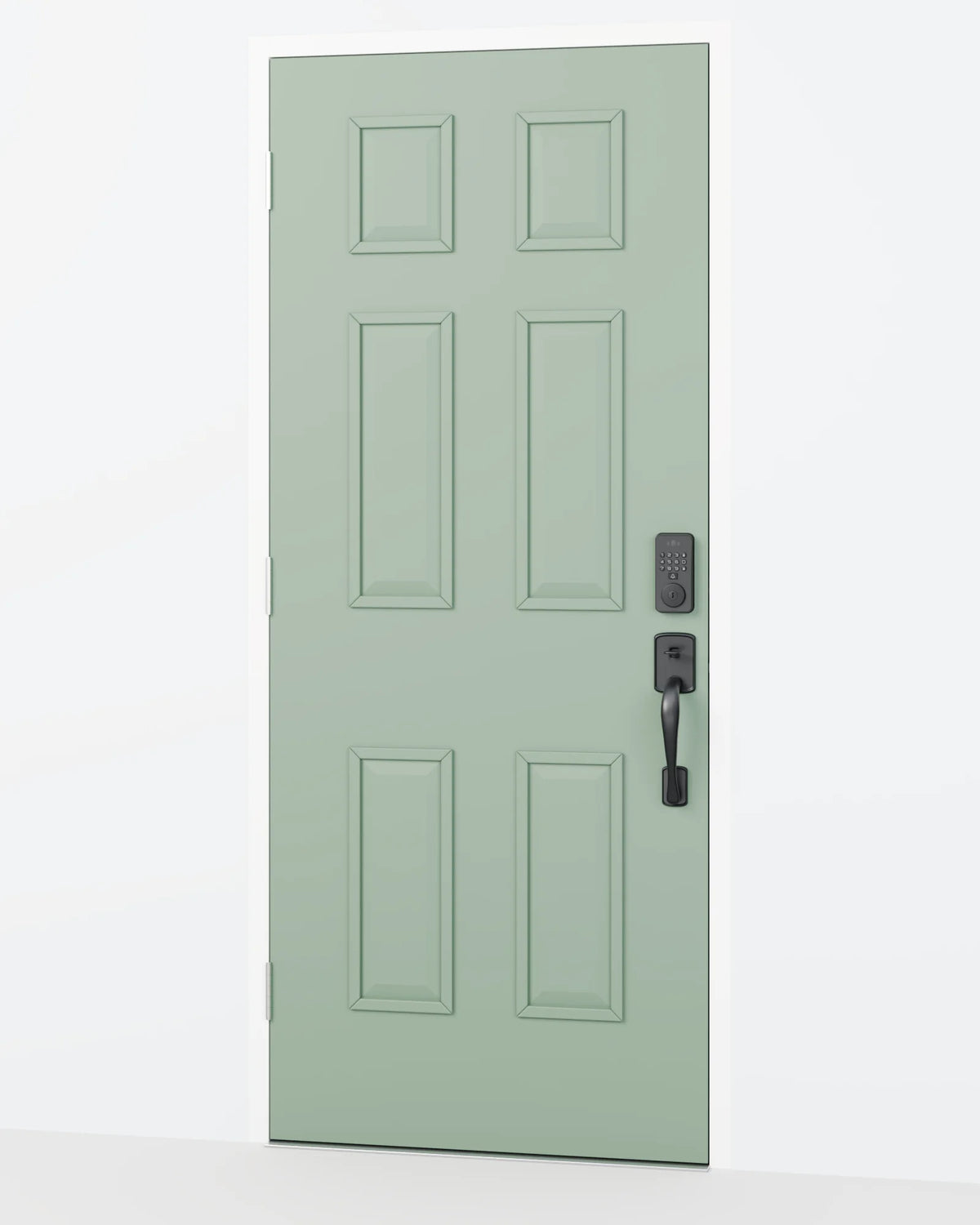

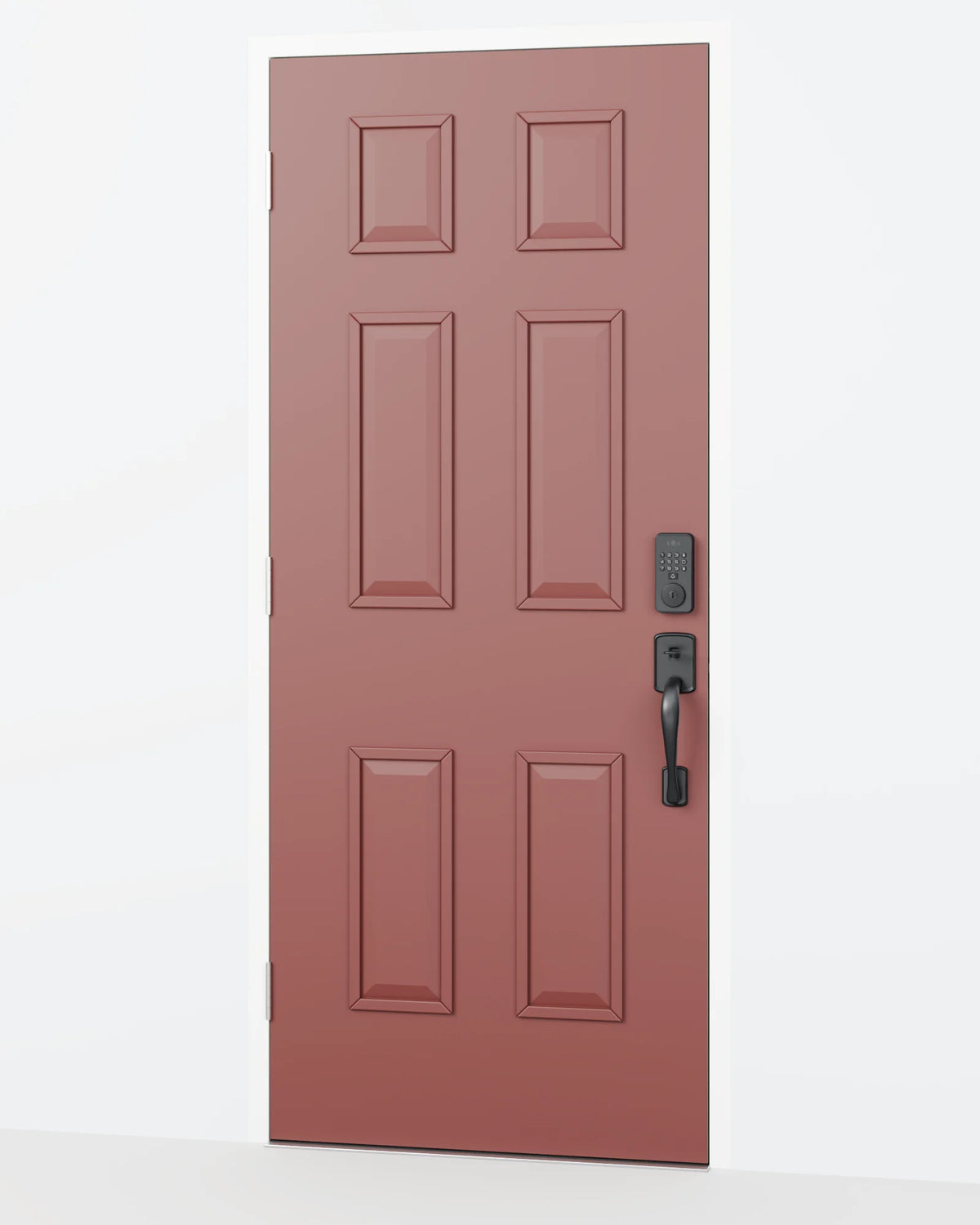

One matte black lock that looks at home on any color door.
Illustrative studio render; door colors are examples. Separate passage handle not included.
Built for the porch
Rain, snow,frost and sun.
The exterior panel lives outside all year. Pick the weather and watch it.
IP65 weather resistance and a −4°F to 140°F (−20°C to 60°C) operating range, as stated by the manufacturer. Studio renders.
Rain at dusk
Weather resistance
IP65
As stated by the manufacturer.
Operating range
−4°F to 140°F
−20°C to 60°C, as stated by the manufacturer.
Always a way in
Completepeace of mind.
Mechanical key override
Or use the mechanical key.
Keys are in the box. Studio renders.
VENIXSmart deadbolt
One lock.Six ways in.
Separate passage handle not included. Illustrative demos, not sensor output.
